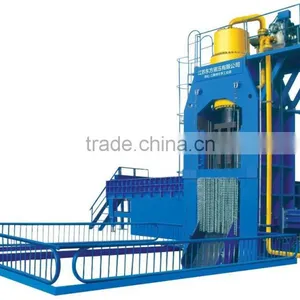

Q91Y-500 Hydraulic Scrap Metal Baler and Shear machine
1.Applications:
Q91Y series of hydraulic scrap metal baler and shear is applicable in steel plants,recycling companies,ferrous & non-ferrous smelting industry to press metal scraps(steel,copper, aluminum,stainless steel,discarded automobiles), especially for some thick heavy metals, like HMS, it is perfect for those material bcs it works with the big shear, by which is capable of cutting scraps with high efficiency, you may save lot of cost on labour and machine runing power.
2.Features:
1)PLC remote control
2)Customized design available
3)high efficiency and save much labor costs
3.Service:
1) Lifetime maintainance and considerate technical support.
2) 24 hous service, any problem before or after the delivery, you could find and talk with us anytime.
3) Technicians can be sent to abroad.
4.Product photos:
5.Technical Specifications:
|
1 |
Shearing cylinder |
Type |
YG500/320-650 |
Quantity |
1set |
||||||
|
push force |
5000KN |
Stroke |
650MM |
||||||||
|
2 |
Clamping cylinder |
Type |
YG140/90-500 |
Quantity |
2sets |
||||||
|
push force |
385KN*2 |
Stroke |
500mm |
||||||||
|
3 |
Lateral pressure cylinder |
Type |
YG200/140-1000 |
Quantity |
2sets |
||||||
|
push force |
800KN*2 |
Stroke |
1000mm |
||||||||
|
4 |
Cover oil cylinder |
Type |
YG140/90-1250 |
Quantity |
2sets |
||||||
|
push force |
1000KN |
Stroke |
1250mm |
||||||||
|
5 |
Push cylinder |
Type |
YG160/105-3200 |
Quantity |
1set |
||||||
|
push force |
500KN |
Stroke |
3200mm |
||||||||
|
6 |
Pressure Indoor Size |
4000×1500×700MM |
|||||||||
|
7 |
Metal Mass Size |
3000×500×400 MM |
|||||||||
|
8 |
System work force |
25Mpa |
|||||||||
|
9 |
Scissors length |
800mm |
|||||||||
|
10 |
motor |
Type |
Y280M-6 |
Power |
55KW |
||||||
|
Nominal Speed |
970rpm |
Quantity |
2 sets |
||||||||
|
11 |
Piston Pump |
Type |
250YCY14-1B |
Nominal Pressure |
31.5Mpa |
||||||
|
Nominal Outflow |
250ml/r |
Quantity |
2set |
||||||||
Q1: How can I get the after-service?
A: We provide One year warranty.
We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q2: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Here is our factory address:Yunting Industrial Zone, Jiangyin City Jiangsu Province, China.
Our factory is near Shanghai Pudong Airport. We can pick you up in the airport. Hotel booking service is available.
