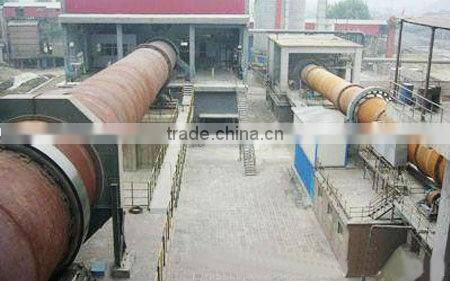

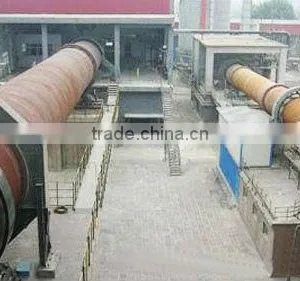

Introduction of magnesia rotary kiln :
magnesia rotary kiln is used in: chemical products - magnesium sulfate, magnesium sulfate heptahydrate, In refractory aspect it is the main raw material for production of the steelmaking magnesium ball bottom material, In the building aspect,it is widely used in the production of container, fire board, arts and crafts, vegetable greenhouses, wall insulation boards, activity boards, asbestos and other. It can increase wear resistance, good adsorption, a lower melting point and can change metal lattice structure (fine),so it is used in paint painting refractory bricks, magnetism material, ceramic, rubber tires, and so on.
Structure of magnesia rotary kiln :
magnesia rotary kiln is made of cylinder, gear, prop, gear wheel bearing device, kiln, kiln sealing parts, kiln hood and combustion devices. Cylinder of magnesium oxide rotary kiln is the heated rotary parts and is made of quality sedation steel plate welded. Due to the particularity of the calcination process, our furnace adopt Diameter changes type kiln body, Through the wheel with bearing block in 2 to 4 on the sliding or rolling bearings devices, and in one block or block support device set a mechanical or hydraulic gear wheel, magnesium oxide rotary kiln control the axial movement of the cylinder; The transmission device of magnesium oxide rotary kiln speed rotary according the requirements through the ring gear in the cylinder central cylinder rotation; Due to the requirements of installation and maintenance,large magnesium oxide rotary kiln set auxiliary transmission device ,which make kiln body speed in a low rotary;In order to prevent cold air into and gas dust overflow the tube,we set reliable preheater and kiln head sealing device in the feeding end and discharge end for the magnesium oxide rotary kiln's cylinder.
Advantages of magnesia rotary kiln :
magnesia rotary kiln structure is simple, convenient and reliable control in the production process, less wearing parts, high rate of operation,so it is the high grade cement equipment in the cement plant, and it is widely used in the metallurgy, chemical industry, construction and other industries.
Technical parameters of magnesia rotary kiln :
| Model (m) | Production Capacity (t/d) | Host Machine | Speed Reducer | Weight (t) | Remark | ||
| Model | Power(kw) | Model | Ratio | ||||
| φ18x26 | 72 | JZT2-72-4 | 30 | JZQ750-1-I | 48.57 | 66 | |
| φ1.9/1.6x39 | 72 | JZT2-72-4 | 30 | JZQ750-1-I | 48.57 | 66 | |
| φ1.9x36 | 84 | YCT315-4A | 37 | ZS110-5-III | 78.19 | 85.9 | |
| φ2.2x45 | 98.4 | JZT82-6 | 55 | ZA125 | 93.93 | 104 | |
| φ2.5x40 | 160 | Z2--92 | 40 | ZS125-2-I | 134.9 | 143 | |
| φ2.5x45 | 170 | JTZ82-4 | 45 | ZS125-4-I | 69.71 | 148 | |
| φ2.5x50 | 180 | ZT3-72-4 | 30 | ZS145-9-V | 122.8 | 173 | |
| φ2.5x60 | 168 | YCT355-4B | 75 | ZS165-7-II | 99.96 | 222 | Bauxite calcining kiln |
| φ3x48 | 360-480 | YCT355-4B | 75 | ZS145-7-II | 100.4 | 170.6 | |
| φ3.1/2.5x78 | 216-240 | Z4—225-31 | 75 | ZS165-2II | 57.17 | 268 | |
| φ3x48 | 700 | ZSN4-280-21B | 110 | MSY56-28-II | 28 | 244 | decomposition out the kiln |
| φ3x100.94 | 450 | ZSN4-280-21B | 90 | NZS995-90-VI-L | 90 | 526 | more cooling tube |
| φ3.2x50 | 1000 | ZSN4-280-21B | 160 | MSY56-28-II | 28 | 252.4 | decomposition out the kiln |
| φ3.2x52 | 600 | ZSN4-280-21B | 125 | ZSY1110-71BL | 71.54 | 275 | Preheater kiln |
| φ3.3x52 | 1000 | ZSN4-280-11B | 125 | NZS995-40-VI-BR | 40 | 283 | decomposition out the kiln |
| φ3.5x52.5 | 1400 | Z2-112 | 180 | ZS177 | 79.22 | 360 | decomposition out the kiln |
| φ3.5x54 | 1500 | ZSN4-3156-092 | 220 | ZSY500-40-V | 40 | 368 | decomposition out the kiln |
| φ3.6x70 | 490 | ZSN4-280-11B | 125 | ZS177-5-II | 79.2 | 419 | Waste heat power generation kiln |
| φ3.95x56 | 2000 | Z4-280-32BTH | 250 | ZSY560-40-I | 40 | 417 | decomposition out the kiln |
| Note: Form parameter is only for reference to select model | |||||||
