Henan Kefan Mining Machinery Co., Ltd.: Zhengzhou, Henan, China; Main products: Mining Machine

Home > Products > Rotary Kiln > Kefan Professonal Cement Rotary Kiln Supplier +0086-371-86678079

Kefan Professonal Cement Rotary Kiln Supplier +0086-371-86678079

FOB Price

US$ 1,000 - 99,999 / Set

1 Set(Min. Order)

Port Shanghai/Qingdao
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Production Capacity	4t/h
Place of Origin	Henan, China	Brand Name	Henan kefan
Model Number	YZ1828	Voltage	Industrial voltage, Industrial voltage
Power(W)	30kw	Dimension(LWH)	1.8*2.8m
Weight	59.39	Certification	CE/BV/ISO
Warranty	1 year, 2 years	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Description:

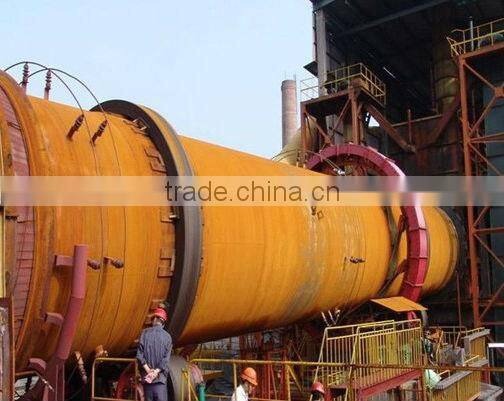

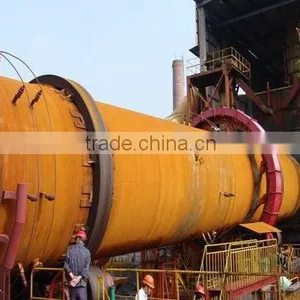

Cement Rotary Kiln is the main equipment of calcining cement clinker.The Cement Rotary Kiln is basically a rotating inclined cylinder. Solids retention time in the kiln is an important design factor and is set by proper selection of the diameter, length, speed, slope and internals design. There are two basic types of rotary kilns; direct fired and indirect fired.The dryer is used in the cement plant to calcine high grade cement, at the same time can be used in metallurgy, chemical,construction ect.

Our rotary dryer system is after technology innovation, being used in the most advanced hydraulic gear wheel device, the metering piston pump of high precision, the high precision control valve and contact graphite blocksealing devices and other advanced technologies. It features in easy to operate and operational safety. Compared with the same specification equipment, the rotary kiln stabilizes the thermal system program and improves the equipment operation rate, with the operation rate increased by 10%, the yield increased by 5% -10% and heat consumption reduced by 15%.

The Main Technical Parameters:

Type	Model	Shell Dia(mm)	Shell Length (mm)	Gradient (%)	Output(t/h)	Rotate Speed(rpm)	Motor Power(Kw)	Weight( t )
Straight Shell Rotary Kiln	YZ1225	1200	2500		3		22	34
	YZ1828	1800	2800		4		30	59. 39
	YZ1636	1600	36000	4	1. 2~1. 9	0. 26~2. 61	22	51. 023
	YZ2245	2200	4500	3. 5	3. 2~5. 3	0. 23~2. 25	45	125. 462
	YZ2555	2500	55000	3	7. 3~9. 8	0. 79~2. 38	55	191. 203
	YZ2820	2800	20000	4	15~18	0. 8~1. 45	75	186. 373
	YZ3060	3000	60000	3. 5	16~20	0. 49~2. 41	90	272. 510
	YZ3560	3500	60000	3. 5	28~40	0. 65~2. 25	125	347. 872
	YZ4030	4000	30000	4	52~70	0. 38~3. 52	160	415. 103
	YZ4262	4200	62000	3. 5	80~105	0. 38~3. 52	315	541. 615
Diameter -changing Rotary Kiln	YB1626	1600/1400	26000	4	0. 7~1. 1	0. 41~3. 85	18. 5	38. 621
	YB1939	1900/1600	39000	4	2. 2~2. 7	0. 27~2. 58	22	60. 841
	YB2545	2500/2200	45000	3. 5	4. 5~6. 2	0. 25~2. 18	45	102. 367
	YB3560	3500/3000	60000	3. 5	23`32	0. 65~2. 28	125	310. 263
