Specifications
durable vibrating screen1. Advanced technology
2. Low power consumption
3. Guanranteed quality with CE
4.High productivity
Professional durable vibrating screen from henan kefan

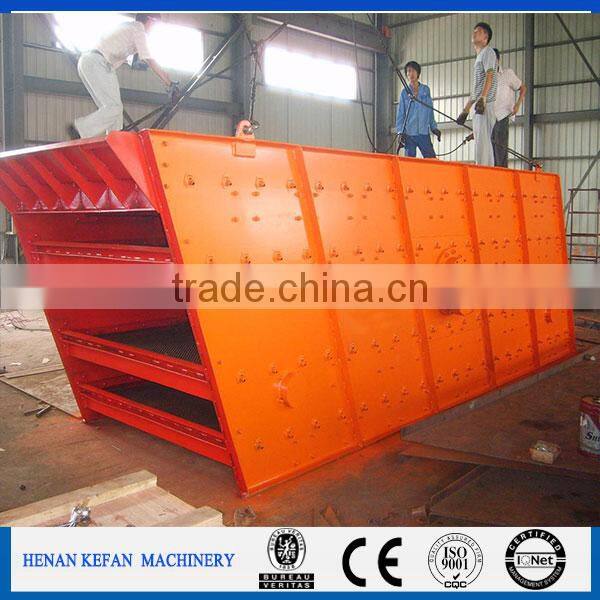

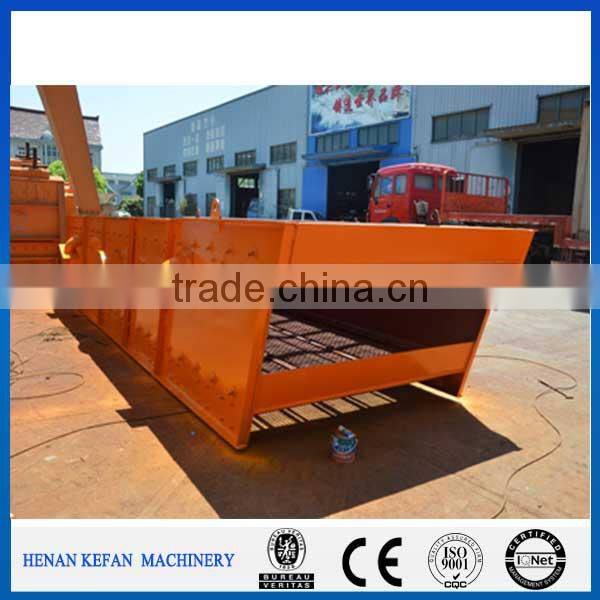

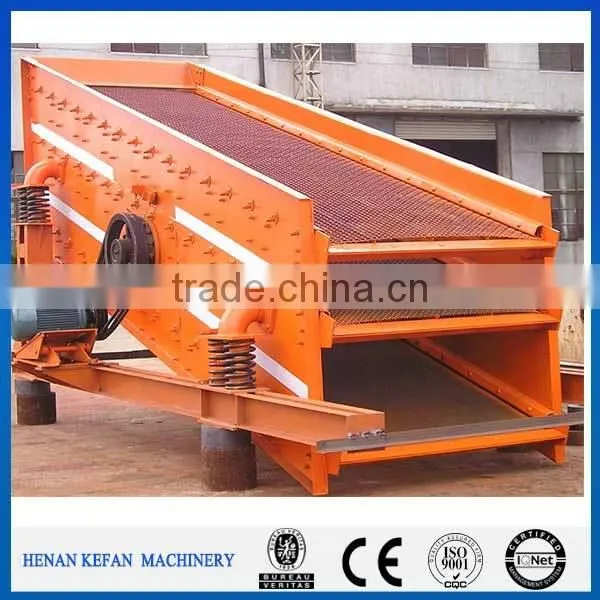

Vibrating Screen
| Application | vibrating screen is used for material classification in coal dressing, metallurgy and mining machinery, quarry, building materials, water conservancy and hydropower, transportation, chemical industry, smelting and so on. |
| Working principle | During normal operation, the vibration of exciter will drive the screen mesh fixed on the screen box vibrate, and then materials will be screened. The big and small materials fall from the upper side and lower side of the screen to get them separated. |
| Advantages |
1. It uses eccentric block to produce strong exciting force. 2. Crossbeam and the main body of the screen are connected with high strength screw bolts. So they have the features of simple structure and easy maintenance. 3. It adopts tire coupling with capability of flexible connection and stable operation. 4. It adopts the structure of small amplitude, high frequency, large obliquity to make the screen hold the capability of high efficiency, large handling capacity, long life span, low consumption, little noise. |
| Structure | Vibrating Screen consists of screen box, supporting device, vibration exciter, transmission part, etc. |
Technical Parameters
Model |
Screen Size |
Screen Decks |
Screen Hole Size |
Max. Feeding Size |
Capacity |
Motor Power |
Weight |
Overall |
2YZS1237 |
3700×1200 |
2 |
3-50 |
200 |
10-80 |
11 |
2.40 |
4773×2050×2247 |
3YZS1237 |
3700×1200 |
3 |
3-50 |
200 |
10-80 |
11 |
3.05 |
4773×2050×2700 |
2YZS1548 |
4800×1500 |
2 |
3-100 |
400 |
30-200 |
15 |
5.35 |
5900×2270×1620 |
3YZS1548 |
4800×1500 |
3 |
3-100 |
400 |
30-200 |
15 |
6.07 |
5900×2270×1670 |
2YZS1848 |
4800×1800 |
2 |
3-100 |
400 |
50-280 |
18.5 |
6.15 |
5900×2560×1620 |
3YZS1848 |
4800×1800 |
3 |
3-100 |
400 |
50-280 |
18.5 |
6.93 |
5900×2560×1670 |
2YZS1860 |
6000×1800 |
2 |
3-100 |
400 |
65-550 |
22 |
6.95 |
7060×2560×1620 |
3YZS1860 |
6000×1800 |
3 |
3-100 |
400 |
65-550 |
22 |
7.70 |
7060×2560×1670 |
4YZS1860 |
6000×1800 |
4 |
3-100 |
400 |
65-550 |
30 |
8.70 |
7060×2560×1930 |
2YZS2160 |
6000×2100 |
2 |
3-100 |
400 |
81-720 |
22 |
8.48 |
7130×2990×1760 |
3YZS2160 |
6000×2100 |
3 |
3-100 |
400 |
81-720 |
30 |
9.24 |
7130×2990×1810 |
4YZS2160 |
6000×2100 |
4 |
3-100 |
400 |
81-720 |
30 |
10.45 |
7130×2990×1930 |
2YZS2460 |
6000×2400 |
2 |
3-150 |
400 |
100-810 |
30 |
12.35 |
7130×4121×1810 |
3YZS2460 |
6000×2400 |
3 |
3-150 |
400 |
100-810 |
37 |
13.85 |
7130×4121×1940 |
4YZS2460 |
6000×2400 |
4 |
3-150 |
400 |
100-810 |
37 |
15.60 |
7130×4121×2080 |
About us
Henan Kefan Mining Machinery Co.,Ltd , established in 1980, is one of the first garden-like factories located in Zhengzhou which is one of the eight historic cities in China. Since established, We have passed ISO9001:2008 quality system authentication and CE certificate.We are also have a state-level quality management standard reaching ennterprise, member of China Brick&Tile Association and member of China Sand Association, the company has been taking the scientific management method of the modern enterprise, producing with meticulous care and non-stop creation and developing to become a bright pearl and pacemaker of the mechanical industry in our country.
Services
According to customers' demand, we supply the services in a flexible way not only the traditional services but also the Internet on-line services. Our engineer is 24 hours online.We try our best to carve out market and provide services all the time.
Before customers' purchase, we will send our engineers to customers' site to design the best flow chart;
After purchase, we will send the engineer to guide to install the machine, take trial run. Try our best to provide our customers with service of high quality and high efficiency. We welcome customers from home and abroad to visit our company and carry out cooperation!
If you need more informations, pls feel free to contact me at any time!!!
