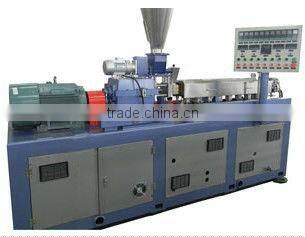

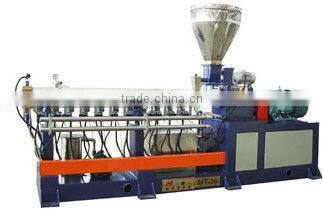

SES-100 Screw Extruder Granulator
Working principle of SES-100 Screw Extruder Granulator:

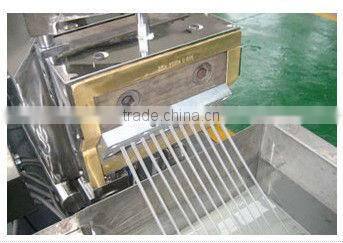

Screw Extruder Granulation divided into single-screw (SES) and twin-screw (SET) type, extrusion before discharge and side discharge two. After mixing, kneading and wet materials or low softening point (generally refers to less than 50 ° C) material in the screw conveyor under compression from the nose openings template extrusion, drying or cooling of particles finished, thus powder products to achieve change for the purpose of uniform particle products. Particle shape is cylindrical, the finished particle diameter by the formwork openings aperture adjustment and control: the side of the material is 0.7-2.0mm material is 1.5-12mm, into the grain is greater than 95%.
Applications: Screw extruder granulator is widely used in rubber chemicals, food additives, plastic additives, catalysts, pesticides, dyes, pigments, daily chemical, pharmaceutical and other industries need to granulation of the product
Main advantages of SES-100 Screw Extruder Granulator:
1. The powdered material in the wet granulation process, the granulation and its follow-up process (such as drying, packaging, etc.) the operating conditions have been greatly improved. General can reduce on-site dust emissions by more than 90%.
2. Granulation, prone to caking of the powder products can be avoided, bridges, pulsating impact of the phenomenon, while avoiding secondary pollution caused by the process of using powder, so that the physical properties of the product is greatly improved.
3. Under normal circumstances, the bulk density of the granulation product has greatly improved, so you can save on shipping, storage, packing space.
4. Multi-component complex mixtures of products, granulation can avoid each group segregation, which really guarantee the quality of composite products.
Technology parameters of Screw Extruder Rubber Granulation:
| SET Double Screw Extrusion Granulator | SES Single Screw Extrusion Granulator | |||||
| Model | Screw Diameter (mm) | Power (kw) | Model | Screw Diameter (mm) | Power (kw) | |
| SET-60 | 60 | 3.7 | SES-100 | 100 | 7.5 | |
| SET-100 | 100 | 7.5 | SES-120 | 120 | 15 | |
| SET-140 | 140 | 15 | SES-160 | 160 | 22 | |
| SET-180 | 180 | 30 | SES-180 | 180 | 30 | |
The Certifications Of This Granulator Machine:
