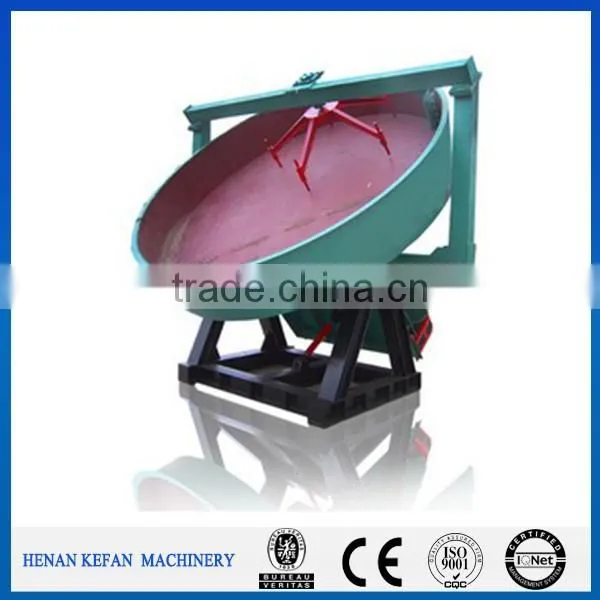

widely use high quality round disk granulate machine/YP series circle -dish granulate
1- Brief Introduction of Disc Granulator
Equalipment Brief introduction
The cirlcle-dish Granulate macine is one of the xommonequipments of fertilizer which replies to medium and low density small scate produce. the ball sish adjusts an 40-55 degrees, the engineering deceleration arouses weel and the to granulations gradually and overllow by the side of dish.
smooth granulations, high granulate rate, high strengh antisepsis, operation and maintain convenience are the advantages of the machine
2- Application Scope of Disc Granulator
Disc granulator is widely used in powder, beaded or small piece materials, such as coal, cement, clinker, fertilizer and other materials.
3. Working Principle of Disc Granulator
1) The pan revolves at a certain angle with the horizontal plane driven by the motor through reducer.
2) The powder will rise along with the revolving pan under the friction between the powder and the pan, on the other hand, the powder will fall down under the function of its gravity.
3) At the same time, the powder is to the pan edge because of the centrifugal force.
4) The powder material rolls in a certain trace under the function of these three forces.
5) It gradually becomes the required size, then overflows by the pan edge.
6) It has the advantages of high granulating rate, homogeneous grain, high strength, easy to operate, convenient maintenance.
4.Technical Parameters of Disc Granulator
Model |
Pan diameter |
Pan side height |
Volume (m3) |
Rotation speed r/m |
motor |
output |
reducer |
ZL 25 |
2500 |
500 |
2.5 |
13.6 |
7.5 |
1-1.5 |
BW33-23 |
28 |
2800 |
600 |
3.7 |
13.6 |
11 |
1-2.5 |
BW33-23 |
30 |
3000 |
600 |
4.2 |
13.6 |
11 |
2-3 |
BW33-23 |
32 |
3200 |
600 |
4.8 |
13.6 |
11 |
2-3.5 |
BW33-23 |
36 |
3600 |
600 |
6.1 |
11.3 |
15 |
3-5 |
BW33-23 |
5.The Certifications Of This Granulator Machine:
