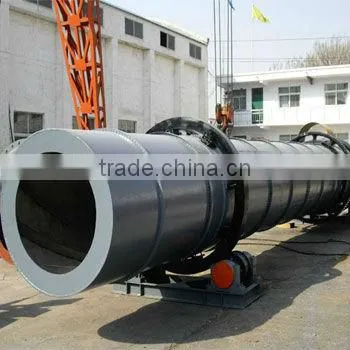

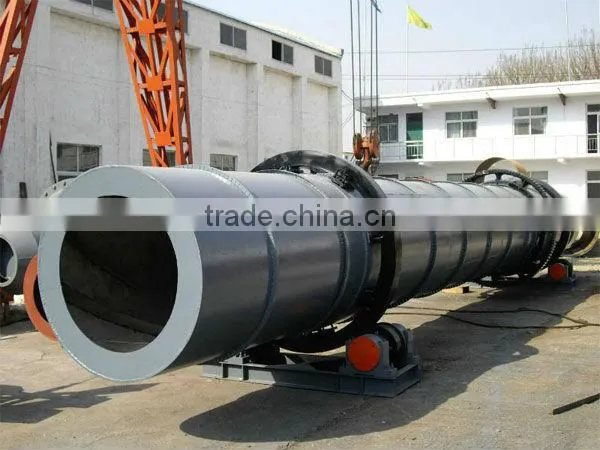

Help CenterKefan Widely Used Drum-type Drier for Sale
Related Products
-
Wholesale High Efficiency Chicken Manure Dryer EquipmentUS$ 1,000 - 99,999MOQ: 1 Set -
Kefan Professonal High Quality Directly Heated Rotary Vacuum Dryer Manufactor +0086-371-86678079US$ 1,000 - 99,999MOQ: 1 Set
-
Kefan Professonal High Quality Directly Heated Coal Rotary Dryer Manufactor +0086-371-86678079US$ 1,000 - 99,999MOQ: 1 Set
-
Kefan Supply High Quality Directly Heated Sand Rotary Dryer With Best PriceUS$ 1,000 - 99,999MOQ: 1 Set
-
Kefan Supply High Quality Directly Heated Rotary Drum Dryer With Best PriceUS$ 1,000 - 99,999MOQ: 1 Set
Specifications
drum-type drier1) remarkable thermal efficiency;
2) compact structure;operation simple
3) convenient installation.
Drum-type drier Product Description:
Base on the traditional single drum dryer structure, Drum-type drier has a significant breakthrough and innovation. Judging from the drying mechanism, materials and hot air exchange more fully, more scientific and reasonable, the thermal index reach leading level.
Drum-type drier technical parameters:
Model |
m |
2.0×7m |
2.5×7.5m |
3.2×8m |
3.6×8.5m |
4.2×9m |
|
Outer sleeve diameter |
m |
2.0 |
2.5 |
3.2 |
3.6 |
4.2 |
|
Outside cylinder length |
m |
7 |
7.5 |
8 |
8.5 |
9 |
|
Cylinder volume |
m3 |
21.98 |
36.8 |
64.3 |
86.48 |
124.6 |
|
cylinder speed |
rpm |
4-10 |
4-10 |
4-10 |
4-10 |
4-10 |
|
material moisture content |
% |
8-20 |
8-20 |
8-20 |
8-20 |
8-20 |
|
Finished material water |
% |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
|
High inlet temperature |
°C |
750-900°C |
750-900°C |
750-900°C |
750-900°C |
750-900°C |
|
Production capacity |
T/h |
slag |
12-18 |
22-25 |
30-38 |
40-48 |
55-65 |
fly ash |
8-10 |
15-20 |
25-30 |
35-40 |
40-50 |
||
coal |
8-10 |
13-18 |
23-28 |
33-38 |
40-45 |
||
yellow sand |
15-20 |
23-28 |
35-43 |
40-50 |
60-70 |
||
Motor model |
|
Yr160m-4 |
Yr132m-4E |
Yr132m-4E |
Yr160m-4E |
Yr160m-4E |
|
Motor power |
kw |
5.5×2 |
7.5×2 |
7.5×4 |
11×4 |
15×4 |
|
Reducer model |
|
XWD-6 |
XWD-6 |
XWD-6 |
XWD-6 |
XWD-6 |
|
Reducer ratio |
I |
23-29 |
23-29 |
23-29 |
23-29 |
||
Drum-type drier main features:
1, Drum-type drier thermal efficiency, energy-saving effect is remarkable. After testing, the thermal efficiency is much more about 50% than the traditional single-cylinder dryer. The device put into use, the economizer effect is remarkable.
2, the drying mechanism scientific rational, energy efficient. Material of the inner cylinder and the hot gas by radiation, convection, conduction, heat exchange form, the outer tube heat exchange by conduction, convection, and used in the form.
3, shorten the length of the aircraft, is conducive to process layout. Overall length shorter than monocular dryer about 40%, thereby reducing the plant construction area, save construction investment, but also more suitable for the old plant transformation process layout.
4, the machine uses hot air downstream drying materials and technology for a wide range. It can adapt to clay, coal, slag, iron and other raw materials drying, also used in metallurgy, chemical industry and other departments of the various dry bulk materials.
5, the structure is compact. Whole level layout, use of wheel bearing, gear size canceled and replaced by roller drive, make the device more convenient installation, operation more simple, more reliable, higher operating rates.
6, a variety of lifting plate design, angular lifting plate with thousands of words lifting plate combine to make the material more fully with the hot flue gas exchange, reducing the dryer cylinder body "wind tunnel" generating mechanism.
