Specifications
1.high effciency2.easy operation
3. low fule consumption
4.apply to a widely range of high humidity material

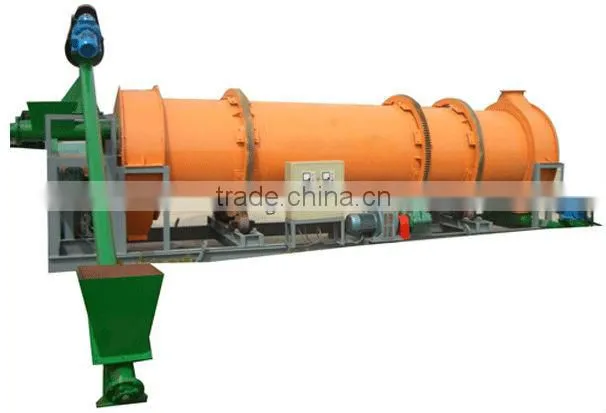

Instructions of High Humidity Roasting Machine
Humidity roasting and high humidity roasting materials are a low fule consumption ,high effciency of the drying equipment .the equipment adopts downstream drying process ,especially suitable for materials and humidity of nutrition maintained rapid drying .
Main use :the structure is compact ,easy installation and debugging , cover an area of small .roller and broken device adopts stepless speed regulation ,can adopt to different material dry requirements The machine can use different fules ( such as coal ,crude oil ,natural gas etc ) supporting the use of heat .The machine is suitable for dry water higher, the sticky larger worse kind of material ,such as beer worse ,starch worse ,rice bran bad , all kinds of slag qualitative material, such as bean dregs, sugar residue, fruit dreg, sauce, poultry and animal feces, mud slag and damp material contained brown-black .
Working Principle of High Humidity Roasting Machine
By feeding materials and humidity directly into the spiral drum drum dryer, was broken on the wall of the copy plate by repeatedly start to copy, endlessly picturequre scene after crushing equipment, materials and struck a scatter of high temperature medium fully contact with the negative, complete heat and mass transfer process. Because of roller Angle and lead points wind function, and the material is moving slowly, the incoming by discharging after drying spiral eduction, exhaust through cwoaldn, is vented to atmosphere .
High humidity dryer by drying craft downstream, especially suitable for materials and humidity of nutrition maintained rapid drying, such as processing fresh chicken manure, which can be reached drying, sterilization, deodorant and save nutrition purpose.
The machineroller equipped with high-speed rotation, increasing the crushing equipment, material and drying medium contact area, some of the unique design inside thequipment, to make materials not easy adhesive in **** board and a hollow, the heat preservation, sealed performance is good, thermal efficiency is much higher than the general drum drying machine.
High humidity roasting owns compact structure ,easy installation and debugging , cover an area of an area small , Roller and broken device adopts stepless speed regulation, can adapt to different materials with roast requirements. The machine can use different fuels such as coal, crude oil, natural gas etc) supporting the use of heat.
Main Technical Parameters of High Humidity Roasting Machine
| Model | ZK500 | Zk1000 | ZK2000 |
| Capacity(kg/h) | ≥ 500 | ≥ 1000 | ≥ 2000 |
| Water Evaporation(max,kg/h) | 275 | 550 | 1100 |
| Rotary speed(rmp),power(kw) | 3-4,3 | 3-4,3 | 3-4,5.5 |
| Crushing shaft speed(rmp) and power(kw) | 150-250,3 | 150-250,4 | 150-250,5.5 |
| Induced draft fan power(kw) | 7.5 | 15 | 18.5 |
| Coal cousmption(kg/h) | ≤ 70 | ≤ 110 | ≤ 220 |
| Power cousmption | ≤ 15 | ≤ 20 | ≤ 30 |
| Area (m2) | ≥ 120 | ≥ 140 | ≥ 150 |
| Workshop height(m) | ≥ 5.5 | ≥ 5.5 | ≥ 5.5 |
| Weight(kg) | 4000 | 6000 | 9000 |
