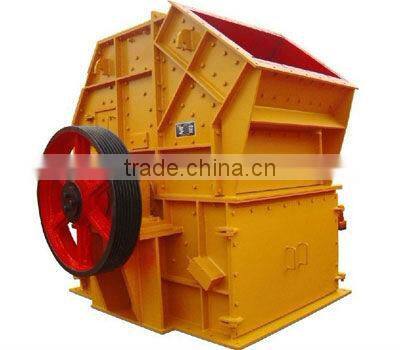

Introduction of GXF High-efficiency Complex Crusher:
GXF High-efficiency complex crusher is used to crush materials with smaller than 200MPa compression strength in cement, building materials, mining and other industries. Feeding size up to 450 ~ 1000mm, the average discharge size is less than 5 to 8mm. Multi-mode elastic adjusting mechanism control effectively the discharge size of the material; unique design, on the chassis back cover can hydraulic (manual) open, so replacement parts and maintenance are easy. This machine rewritten cement raw material preparation process, reduce 1/3 investment in equipment, saving energy consumption by up to 1/2, eliminating the need for a lot of maintenance costs. (Yield from 40t / h ~~ 500t / h).
Application of GXF High-efficiency Complex Crusher:
Secondary and tertiary crushing: mining ,aggregate,metallurgy, industral,construction, environmental
Advantages of GXF High-efficiency Complex Crusher:
- Advanced design.
- High reduction ratio;
- The blow bar with high chrome;
- Hydraulic or manual open switch;
- Impact plate with special shape;
- Excellent,stress-free,cubical-shape products

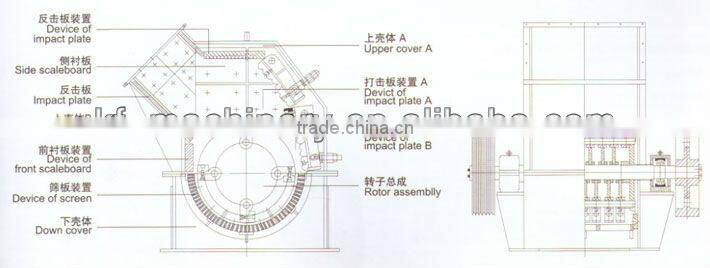

Structure of GXF High-efficiency Complex Crusher:
Technical Parameters of GXF High-efficiency Complex Crusher:
| Model | Max.Feeding Size(mm) | Average Discharge Size(mm) | Capacity (t/h) | Power (kw) | Weight(t) | Overall Dimensions (mm) |
| GXF-40 | 450 | 3-5 | 35-45 | 75 | 12 | 2231×1940×2168 |
| GXF-60 | 500 | 5-8 | 55-65 | 110 | 18 | 2550×2850×2670 |
| GXF-80 | 500 | 5-8 | 75-85 | 132 | 21 | 2550×2630×2670 |
| GXF-100 | 600 | 5-8 | 90-100 | 185 | 25 | 2550×3120×2670 |
| GXF-120 | 600 | 5-8 | 110-130 | 200 | 28 | 2550×3390×2670 |
| GXF-160 | 700 | 5-8 | 140-180 | 250 | 32.5 | 2793×3140×3014 |
| GXF-200 | 700 | 5-8 | 190-220 | 280 | 38.5 | 2793×3410×3014 |
| GXF-300 | 1000 | 8-2 | 280-340 | 450 | 55 | 3670×3850×4135 |
| GXF-400 | 1000 | 8-12 | 380-420 | 560 | 65 | 3670×4180×4135 |
| GXF-500 | 1000 | 8-12 | 460-520 | 710 | 75 | 3670×4500×4135 |
