Specifications
Roll Crusher1)Feature:reliable,stable and operation,energy saving;
2)Capacity:70t/h;
3)Used in mining,metallurgy,industrial.
Descriptions:
1.Roll crusher is the machine in the use of surface friction of rollers to bit materials into crushing zone, so bear squeeze or split to broken.
2.For coarse crushing or the need to increase the crushing ratio, often the roller surface is made teeth or grooves type to increase the splitting effect.
3.Roll crusher is usually suitable for primary crushing, breaking or crushing of the following materials in hard coal,limestone,cement clinker and feldspar.
Applications:
Secondary and tertiary crushing: mining ,aggregate,metallurgy,industral,construction, environmental.
Features:
1. Reliable,stable and operation;
2. Simple maintenance,long service life;
3. Low running costs, save resources;
4. Nesting grained adjustable size;
5. Reversible structure,good crushing effect.

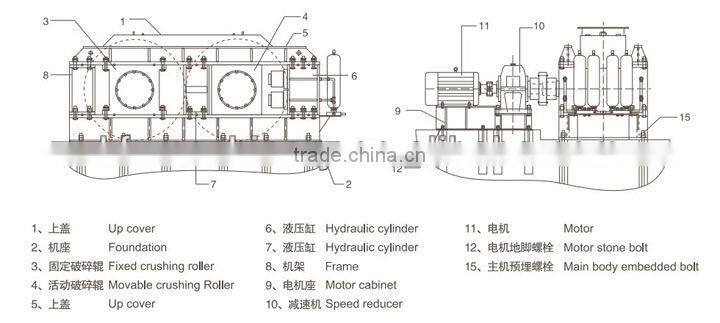

Structures:
Technical Parameters:
| Model | Roller Diameter | Throughput(t/h) | Max.Feeding Size(mm) | Discharge Opening Size(mm) | Weight(kg) | Reducer | Motor Power(KW) | Dimensions(mm) |
| Hydraulic 1000*700 | 1000 | -40 | <30 | <3mm, about 70% | 14800 | ZLY224-20-Ix2 | 30KW*2 | 2894*3773*1285 |
| Hydraulic 1200*700 | 1200 | -70 | <40 | <3mm, about 70% | 21500 | ZLY280-20-I ZLY280-20-IV | 55KW*2 | 3444*3537*1448 |
| Hydraulic 1500*700 | 1500 | -150 | <50 | <3mm, about 72% | 32500 | ZLY355-20-I ZLY355-20-IV | 110KW*2 | 4133*3970*1760 |
| Hydraulic 1800*800 | 1800 | -210 | <60 | <3mm, about 75% | 49000 | ZLY450-31.5-I ZLY450-31.5IV | 160KW*2 | 4860*4208*2050 |
| Hydraulic 2000*1000 | 2000 | -350 | <70 | <3mm, about 72% | 90000 | ZSY560-31.5-I ZSY560-31.5-IV | 220KW*2 | 5100*4950*2550 |
| Hydraulic 2600*1000 | 2600 | -600 | <300 | <50 | 1800000 | ZSY710-40-I ZSY710-40-IV | 400KW*2 | 7800*6500*3300 |
