Kefan Supply MQG Series Dry Grid Ball Mill With Best Price
- 100 Set / Sets per Month
- Qingdao/Shanghai
- T/T Credit Card
Product Details
Condition: | New | Type: | Ball Mill | Motor Type: | AC Motor |
Power(W): | 2.7-6.79kw | Capacity(t/h): | 1.40-0.36t/h | Place of Origin: | Henan, China |
Brand Name: | Henan kefan | Model Number: | MQG-0909 | Dimension(L*W*H): | Depend on different machine |
Weight: | 4.4t | Certification: | CE/BV/ISO | Warranty: | 2 years, 2 years |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1)CE/BV/ISO;2)The product size can be adjusted,the system run stable,there is no wearing parts,widely used in powder making.

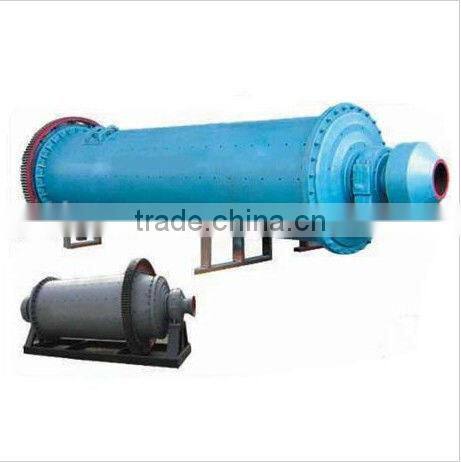

MQG Series Dry Grid Ball Mill
Applications:
MQG Series Dry Grid Ball Mill is named relative to wet type ball mill.Dry type ball mill mainly used in construction,chemical industry for powder making.
Raw materials:
MQG Series Dry Grid Ball Mill is used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass and ceramics and etc.
Features:
1.The product size can be adjusted;
2.The system run stable;
3.There is no wearing parts;
4.Widely used in powder making.
Technical Parameters:
Model | Shell diameter(mm) | Shell Lenghth(mm) | Cylinder Effective Volum(m3) | Max Weight of Balls(t) | Speed(r/min) | Power(KW) | Output size (mm) | Capacity(t/h) | Weight(t) |
MQG-0909 | 900 | 900 | 0.45 | 0.9 | 34.0-39.2 | 2.7-6.79 | 0.6-0.074 | 1.40-0.36 | 4.4 |
MQG-0918 | 900 | 1800 | 0.9 | 1.5 | 34.0-39.2 | 3.3-8.2 | 0.6-0.074 | 2.8-0.7 | 5.4 |
MQG-1212 | 1200 | 1200 | 1.1 | 1.8 | 29.5-33.5 | 3.3-8.5 | 0.6-0.074 | 2.6-0.9 | 11.0 |
MQG-1216 | 1200 | 1600 | 1.5 | 2.5 | 29.5-33.5 | 4.5-12 | 0.6-0.074 | 3.9-1.4 | 12.0 |
MQG-1224 | 1200 | 2400 | 2.2 | 3.6 | 29.5-33.5 | 2.6-14 | 0.6-0.074 | 5.1-1.8 | 12.6 |
MQG-1515 | 1500 | 1500 | 2.2 | 3.6 | 26.5-29.8 | 4-15 | 0.4-0.074 | 5.2-1.9 | 13.5 |
MQG-1522 | 1500 | 2250 | 3.4 | 5.6 | 26.5-29.8 | 4-15 | 0.4-0.074 | 10.2-2.7 | 15.0 |
MQG-1530 | 1500 | 3000 | 4.5 | 7.5 | 26.5-29.8 | 4-19 | 0.4-0.074 | 14.0-3.6 | 18.0 |
MQG-2122 | 2100 | 2200 | 6.7 | 11.0 | 22.2-25.2 | 6-22 | 0.4-0.074 | 25.0-5.0 | 45.2 |
MQG-2424 | 2400 | 2400 | 9.8 | 16.0 | 20.8-23.5 | 6.4-28 | 0.4-0.074 | 29.0-7.5 | 47.5 |
MQG-2430 | 2400 | 3000 | 12.2 | 20.0 | 20.8-23.5 | 7-28 | 0.4-0.074 | 38.0-9.5 | 50.0 |
