Specifications
1.Advanced technology2.Guanranteed quality with CE/ISO
3.Environment friendly
4.High efficient good performance.
1. The Application of Ball Mill
The ball mill is the key equipment that material to be broken, and then to be smashed . It is widely used in cement, silicate products, new building materials, refractory materials, fertilizer, black and non-ferrous metal processing and glass ceramics production industry,have dry or wet grinding on a variety of ores and other grind-able materials.

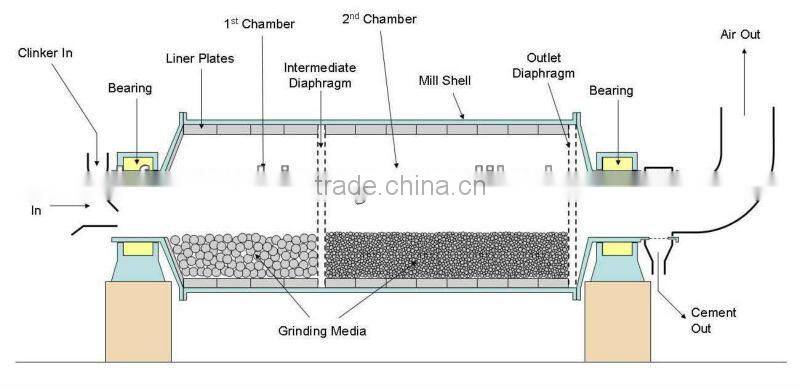

2. Ball mill's work principle
The materials grinded by steel slag ball mill are transferred to the grinding chamber of steel slag ball mill through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of ceramic ball in the chamber. The centrifugal force caused by rotation of barrel brings the ceramic ball to a certain height and impact and grind the materials. The powder materials are discharged through the discharging board thus the grinding process is finished.

3. Ball Mill's Technical Parameters
| Model | Cylinder Speed (r/min) | Ball Charge (t) | Feed Particle Size (mm) | Discharge Size (mm) | Output (t/h) | Motor Power (kw) | Weight (t) |
| 900*1800 | 38 | 1.5 | <=20 | 0.075 - 0.89 | 0.65 - 2 | 18.5 | 3.6 |
| 900*2100 | 38 | 1.3-1.4 | <=15 | 0.075 - 0.83 | 0.7 - 3.5 | 18.5 | 3.9 |
| 900*3000 | 38 | 2.7 | <=20 | 0.075 - 0.89 | 1.1 - 3.5 | 22 | 4.5 |
| 1200*2400 | 32 | 3.8 | <=25 | 0.075 - 0.6 | 1.5 - 4.8 | 30 | 11.5 |
| 1200*2800 | 32 | 3.3-3.5 | <=25 | 0.075 - 0.6 | 2 - 6 | 30 | 13 |
| 1200*4500 | 32 | 7 | <=25 | 0.074 - 0.4 | 1.6 - 5.8 | 45 | 13.8 |
| 1500*3000 | 27 | 8 | <=25 | 0.074 - 0.4 | 2 - 5 | 75 | 17 |
| 1500*3500 | 27 | 6.75-6.4 | <=25 | 0.075 - 0.4 | 3 - 7 | 75 | 17.5 |
| 1500*4500 | 27 | 14 | <=25 | 0.074 - 0.4 | 3.5 - 12 | 110 | 21 |
| 1500*5700 | 27 | 15 | <=25 | 0.074 - 0.4 | 3.5 - 8 | 115 | 24.7 |
| 1830*3000 | 24 | 18 | <=25 | 0.074 - 0.4 | 4 - 10 | 130 | 28 |
| 1830*3600 | 24 | 10.6-11.35 | <=25 | 0.075 - 0.4 | 5 - 22 | 130 | 33.5 |
| 1830*7000 | 24 | 25 | <=25 | 0.074 - 0.4 | 7.5 - 17 | 210 | 36 |
| 2100*3600 | 22 | 14-15.2 | <=25 | 0.075 - 0.4 | 15 - 36 | 370 | 46.8 |
| 2200*5500 | 21 | 30 | <=25 | 0.074 - 0.4 | 10 - 22 | 210 | 48.5 |
| 2200*6500 | 21 | 31 | <=25 | 0.074 - 0.4 | 14 - 26 | 380 | 52.8 |
| 2200*7500 | 21 | 33 | <=25 | 0.074 - 0.4 | 16 - 29 | 380 | 56 |
| 2400*3000 | 20.6 | 15.5-16.6 | <=25 | 0.075 - 0.4 | 22 - 24 | 245 | 59 |
| 2400*4500 | 21 | 30 | <=25 | 0.074 - 0.4 | 8.5 - 60 | 380 | 65 |
| 2700*3600 | 20.6 | 39 | <=25 | 0.074 - 0.4 | 12 - 70 | 400 | 91.3 |
| 2700*4000 | 20.7 | 40 | <=25 | 0.074 - 0.4 | 12 - 80 | 400 | 94 |
| 2700*4500 | 20.7 | 48 | <=25 | 0.074 - 0.4 | 12 - 90 | 430 | 102 |
| 3200*4500 | 18 | 65 | <=25 | 0.075 - 0.4 | set according to the process conditions | 800 | 137 |
Our products have CE,ISO9001:2008 certificated,so you can feel relieved for our product.
Please free contact us!
