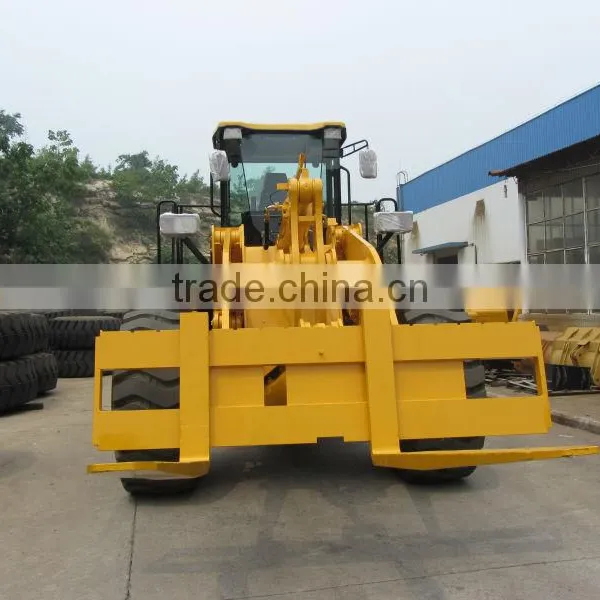

Help CenterZL60 Loader / Wheel Loader/ Front End Loader With CAT Tech. Engine and ZF Gearbox
Related Products
-
Asia China Shan Dong Famous Brand SHAN DONG Yineng YN 966 Loader Luneng Machinery LN YN Iso 9001 APPROVEDNegotiableMOQ: 1 Set -
6T 3.5CBM Asia China Shan Dong Famous Brand SHAN DONG Yineng YN 966 Loader Luneng Machinery LN YN Iso 9001 APPROVEDNegotiableMOQ: 1 Set
-
3.5CBM Asia China Shan Dong Famous Brand SHAN DONG Yineng YN 966 Loader Luneng Machinery LN YN Iso 9001 APPROVEDNegotiableMOQ: 1 Set
-
6T 3.5CBM CE ISO Approved Shan Dong Famous Brand SHAN DONG Yineng YN 966 Loader Luneng Machinery LN YN Iso 9001 APPROVEDNegotiableMOQ: 1 Set
-

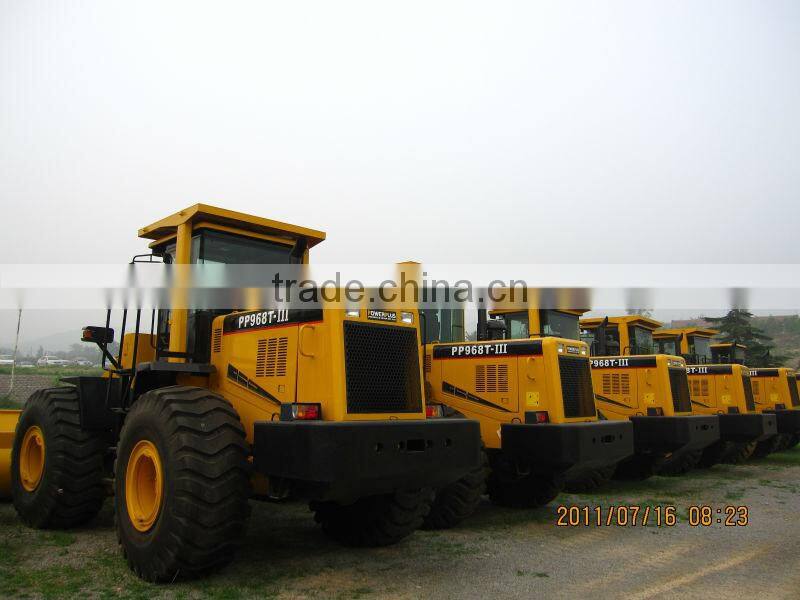

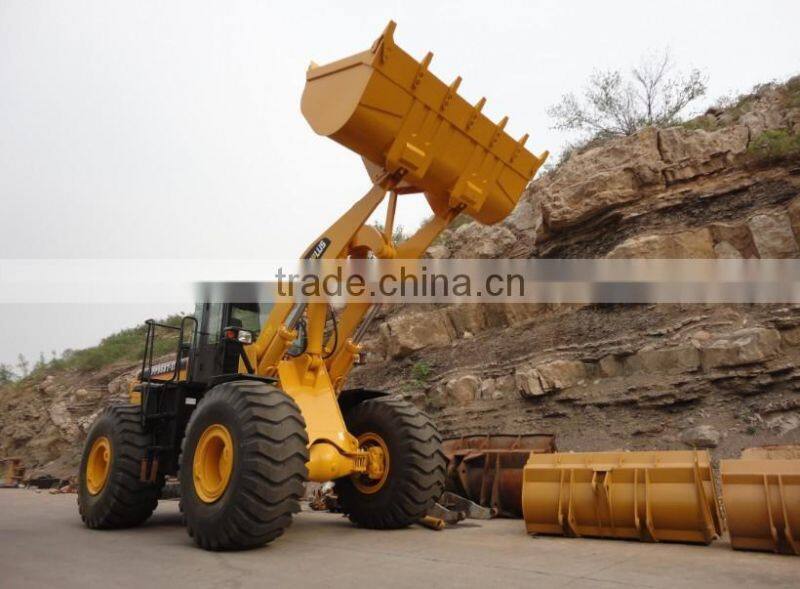

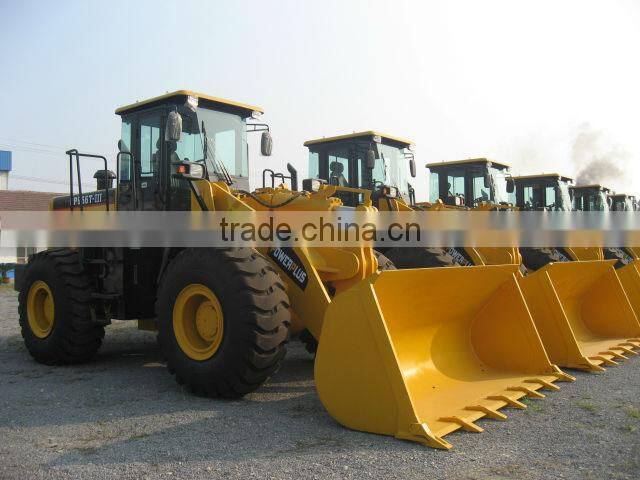

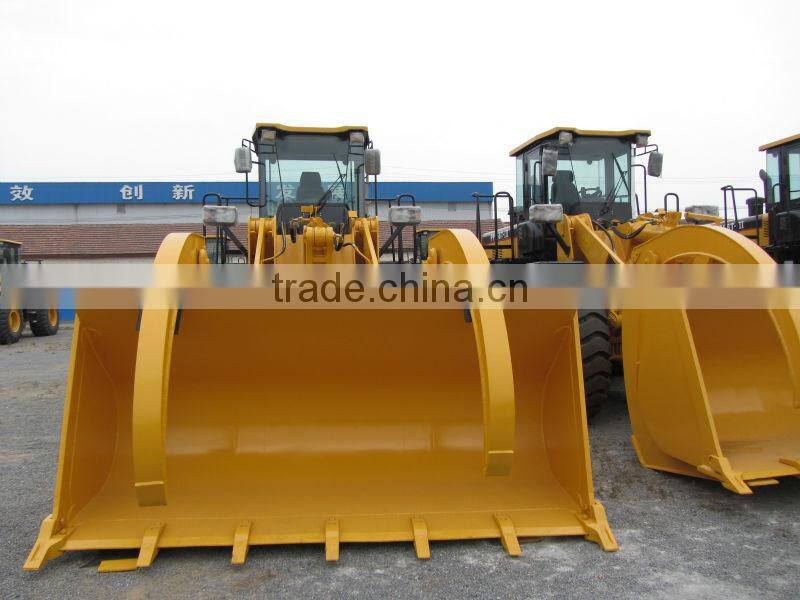

ZL60 Loader / Wheel Loader/ Front End Loader With CAT Tech. Engine and ZF GearboxNegotiableMOQ: 1 Set
Specifications

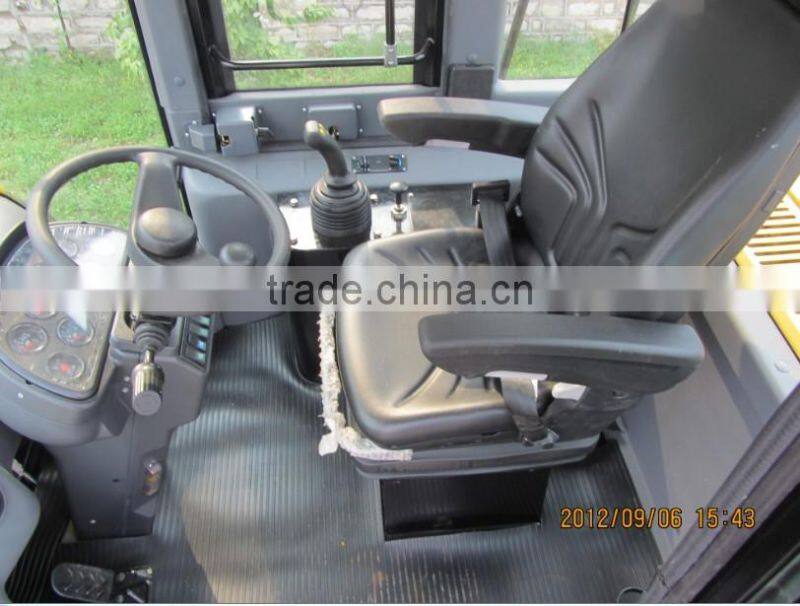

rated load/ capacity/power: 6t/3.5m3/175kw.Adopted Shangchai engine. ZF WG180 transmission, electronic control shift,Joystick
|
Performance |
1 |
Rated load |
6000kg |
2 |
Overall weight |
19200kg |
|
3 |
Rated capacity |
3.5m3 |
|
4 |
Max. Tractive force |
170KN |
|
5 |
Max. Breakout force |
≥190KN |
|
6 |
Max. Grade ability |
30° |
|
7 |
Max. Dumping height |
3100mm |
|
8 |
Max. Dumping reach |
1250mm |
|
9 |
Overall dimension L x W x H |
8160x3070x3400mm |
|
10 |
Min. Turning radius |
6630mm |
|
|
Engine |
11 |
Model |
Shangchai CAT SC11CB240.1G2B1 |
12 |
Type |
Inline/Turbocharged/water colling |
|
13 |
No. Of cylinder-bore/stoke |
6-121x152mm |
|
14 |
Rated power |
175kw-2200r/min |
|
15 |
Max. torque |
950N.m |
|
16 |
Min. Fuel-consume ratio |
≤215g/kw.h |
|
|
Transmission |
17 |
Model |
WG180 made by Hangzhou Advance Gearbox Group |
18 |
Gear shift |
4 forward, 3 reverse. Electronic control gear shift |
|
19 |
Max. speed |
38km/h |
|
|

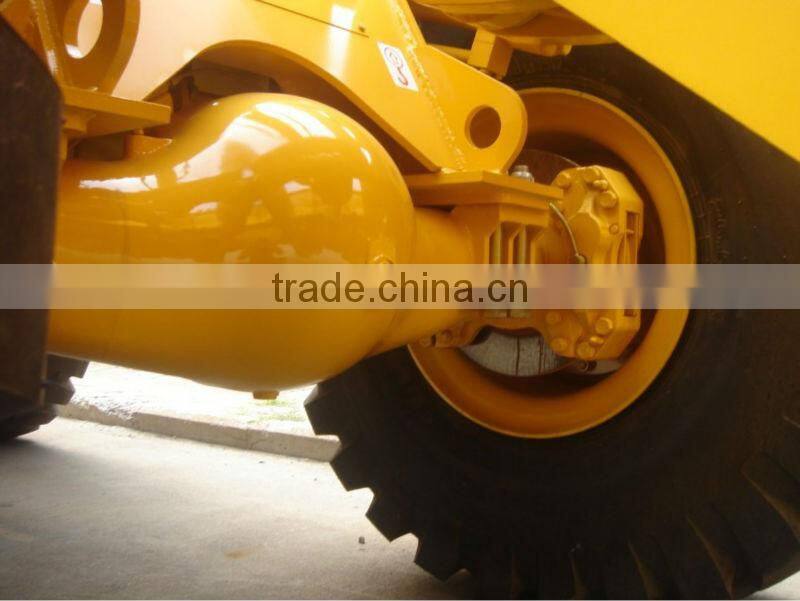

Drive axle |
20 |
Main reducing spiral |
Bevel gear grade 1 reduction |
21 |
Decelerating mode |
Planetary reduction, grade 1. |
|
22 |
Wheel base |
3200mm |
|
23 |
Wheel tread |
2250mm |
|
24 |
Min. ground clearance |
510mm |
|
|
Hydraulic system |
25 |
System working pressure |
18MPa |
26 |
Boom lifting time |
6.0+0.2s |
|
27 |
Total time |
12+0.5s |
|
28 |
Fuel tank capacity |
300L |
|
29 |
Leveling automatically |
Yes |
|
|
Break system |
30 |
Service brake |
Air over hydraulic disc brake on 4 wheels |
31 |
Parking brake |
expand hoof type |
|
|

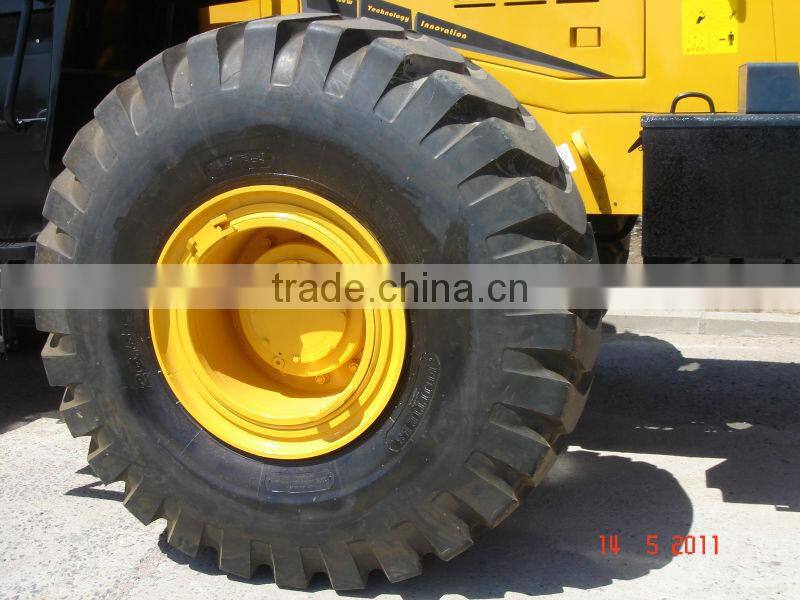

Tyre |
32 |
Type |
26.5-25 |
33 |
Front tyre pressure |
0.4Mpa |
|
34 |
Rear tyre pressure |
0.35Mpa |
We are OEM of Liu Gong, Foton Lovol and Powerplus.
