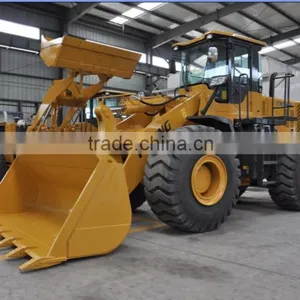

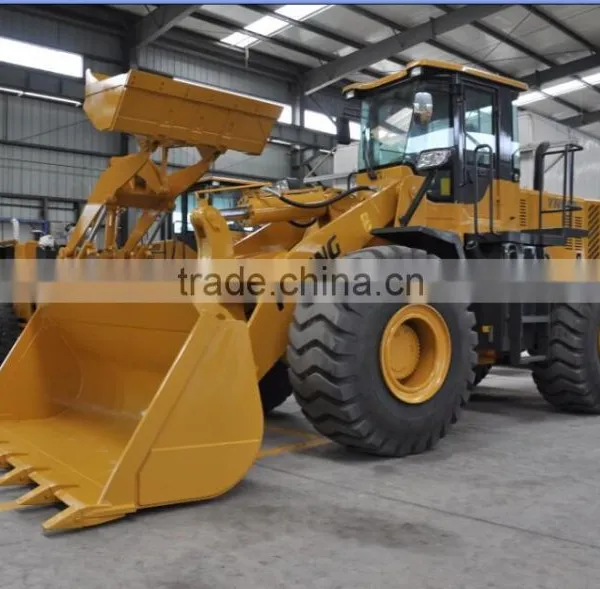

YN966 Wheel Loader

Name: YN966 Wheel Loader
Brand: YINENG
SKU: 141006960
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

YINENG

Model Number:

YN966

Shandong Yineng Heavy Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name YINENG

Model Number YN966

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 8160x3070x3400mm

Rated Load 6000kg

Certification ISO9001:2008

Warranty One year

After-sales Service Provided Overseas third-party support available

Product Description

Performance	1	Rated load	4000kg
	2	Overall weight	12360kg
	3	Rated capacity	2.35m3
	4	Max. Tractive force	100KN
	5	Max. Breakout force	≥120KN
	6	Max. Grade ability	30°
	7	Max. Dumping height	3000mm
	8	Max. Dumping reach	1100mm
	9	Overall dimension L x W x H	7200x2680x3375mm
	10	Min. Turning radius	5160mm
Engine	11	Model	Dongfeng Cummins 6BTA5.9-C150
	12	Type	Turbocharged water & air colling
	13	No. of cylinder-bore/stoke	6-102x120mm
	14	Rated power	112kw-2200r/min
	15	Max. torque	670N.m
	16	Min. Fuel-consume ratio	≤205g/kw.h
Transmission	17	Model	YD13 electronic control gearbox
	18	Gear shift	4 forward, 3 reverse. Electronic control gear shift
	19	Max. speed	36km/h
Drive axle	20	Main reducing spiral	Bevel gear grade 1 reduction
	21	Decelerating mode	Planetary reduction, grade 1.
	22	Wheel base	2845mm
	23	Wheel tread	1800mm
	24	Min. ground clearance	450mm
Hydraulic system	25	System working pressure	18MPa
	26	Boom lifting time	5.5+0.2s
	27	Total time	10+0.5s
	28	Fuel tank capacity	150L
	29	Leveling automatically	Yes
Break system	30	Service brake	Air over hydraulic disc brake on 4 wheels
Break system	31	Parking brake	Air break control
Tyre	32	Type	20.5-25
	33	Front tyre pressure	0.35Mpa
	34	Rear tyre pressure	0.2Mpa
