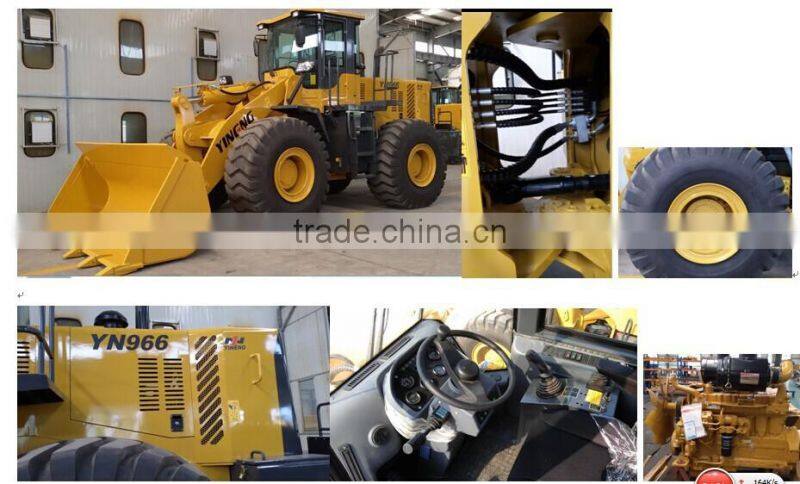

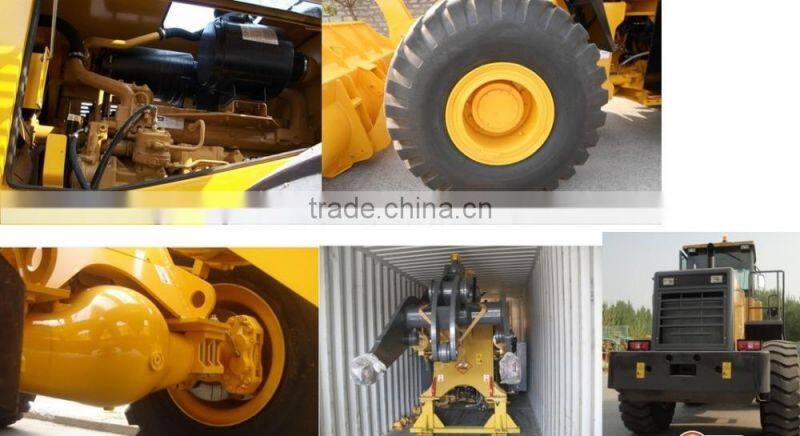

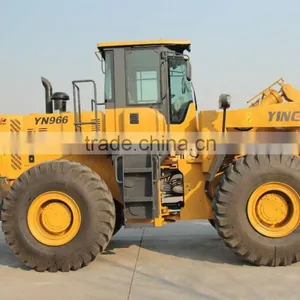

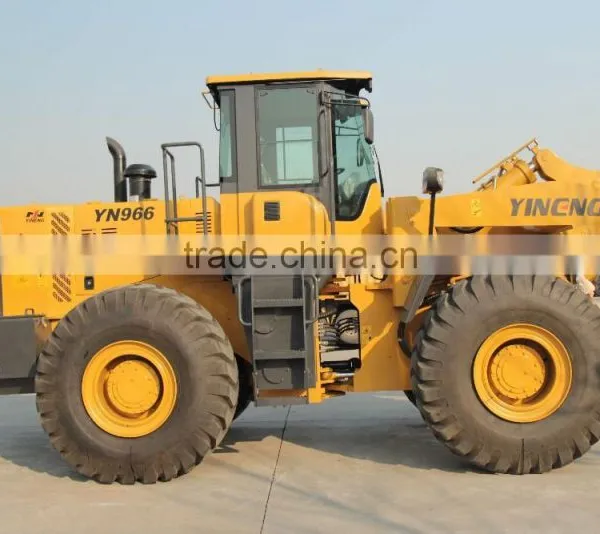

6 Ton Wheel Loader

Performance

1

Rated load

6000kg

2

Overall weight

20000kg

3

Rated capacity

3.5m3

4

Max. Tractive force

170KN

5

Max. Breakout force

≥190KN

6

Max. Grade ability

30°

7

Max. Dumping height

3100mm

8

Max. Dumping reach

1200mm

9

Overall dimension L x W x H

8250x3200x3560mm

10

Min. Turning radius

6593mm

Engine

11

Mode

Shangchai CAT SC11CB240.1G2B1

12

Type

Inline/Turbocharged/water cooling

13

No. Of cylinder-bore/stoke

6-121x152mm

14

Rated power

175kw-2200r/min

15

Max. torque

950N.m

16

Min. Fuel-consume ratio

≤215g/kw.h

 Transmission

17

Model

Hangchi ZL60 Gearbox

18

Gear shift

2 forward, 1reverse.

19

Max. speed

38km/h

Drive axle

20

Main reducing spiral

Bevel gear grade 1 reduction

21

Decelerating mode

Planetary reduction, grade 1.

22

Wheel base

3200mm

23

Wheel tread

2264mm

24

Min. ground clearance

544mm

Hydraulic system

25

System working pressure

18MPa

26

Boom lifting time

6.0+0.2s

27

Total time

12+0.5s

28

Fuel tank capacity

300L

29

Leveling automatically

Yes

Break system

30

Service brake

Air over hydraulic disc brake on 4 wheels

31

Parking brake

expand hoof type

Tyre

32

Type

26.5-25

33

Front tyre pressure

0.4Mpa

34

Rear tyre pressure

0.35Mpa
