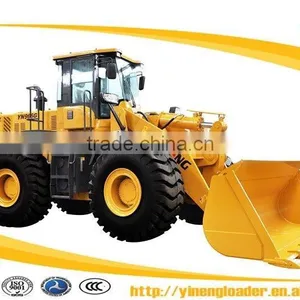

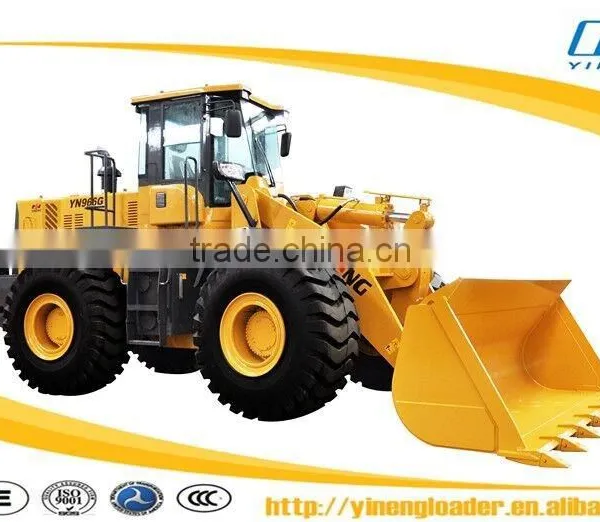

966 Wheel Loader

Name: 966 Wheel Loader
Brand: YINENG
SKU: 141006948
Availability: InStock

Shandong Yineng Heavy Industry Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

YINENG

Model Number:

966

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name YINENG

Model Number 966

Place of Origin Shandong, China

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 8160x3070x3400mm

Rated Load 6000 KG

Certification ISO and CE

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

1.Main Specifications:

Performance	1	Rated load	6000kg
	2	Overall weight	19200kg
	3	Rated capacity	3.5m3
	4	Max. Tractive force	170KN
	5	Max. Breakout force	≥190KN
	6	Max. Grade ability	30°
	7	Max. Dumping height	3100mm
	8	Max. Dumping reach	1250mm
	9	Overall dimension L x W x H	8160x3070x3400mm
	10	Min. Turning radius	6630mm
Engine	11	Model	Shangchai CAT SC11CB240.1G2B1
	12	Type	Inline/Turbocharged/water colling
	13	No. Of cylinder-bore/stoke	6-121x152mm
	14	Rated power	175kw-2200r/min
	15	Max. torque	950N.m
	16	Min. Fuel-consume ratio	≤215g/kw.h
Transmission	17	Model	WG200 Gearbox
	18	Gear shift	4 forward, 3 reverse. Electronic control gear shift
	19	Max. speed	38km/h
Drive axle	20	Main reducing spiral	Bevel gear grade 1 reduction
	21	Decelerating mode	Planetary reduction, grade 1.
	22	Wheel base	3200mm
	23	Wheel tread	2250mm
	24	Min. ground clearance	510mm
Hydraulic system	25	System working pressure	18MPa
	26	Boom lifting time	6.0+0.2s
	27	Total time	12+0.5s
	28	Fuel tank capacity	300L
	29	Leveling automatically	Yes
Break system	30	Service brake	Air over hydraulic disc brake on 4 wheels
Break system	31	Parking brake	expand hoof type
Tyre	32	Type	26.5-25
	33	Front tyre pressure	0.4Mpa
	34	Rear tyre pressure	0.35Mpa
