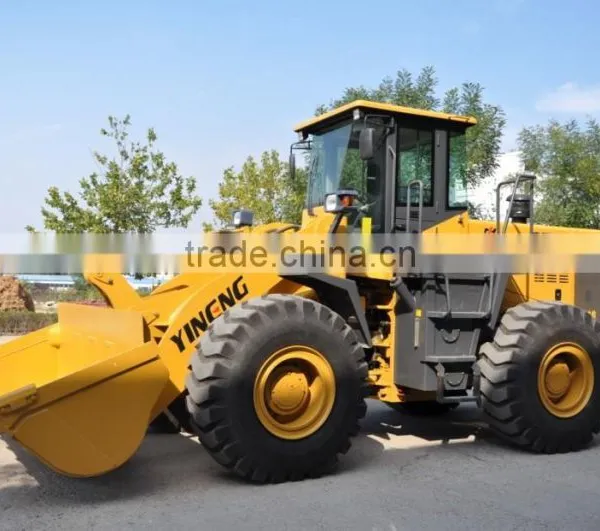

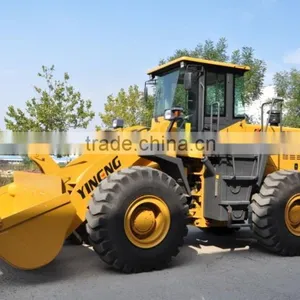

CE provided 5 ton front wheel loader YN958 for sale 3.0cbm bucket capacity
- 300 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- Shang chai Caterpiller diesel engine Yineng wheel loader with grass grasper /clamp Shan dong YIneng YN958 wheel loader
- CE provided 5 ton front wheel loader for sale YN 958 adopt Shangchai engine 3.0cbm bucket capacity
- Hot sale 5ton front wheel loader 3cbm bucket capacity
- 5tons 3m3 Wheel Loader
- hindustan wheel loader 2021 price/Weichai Steyr diesel Luneng used wheel loader with grass grasper
- Weichai Steyr diesel Luneng wheel loader with grass grasper /clamp Shan dong YIneng YN956 wheel loader
Product Details
Condition: | New | Brand Name: | Yineng | Model Number: | YN 958 |
Place of Origin: | Shandong, China | Type: | Front Loader | Moving Type: | Wheel Loader |
Dimension(Long * Breadth * High): | 7960*3070*3490mm | Rated Load: | 5000kg | Certification: | CE;ISO |
Warranty: | 1 year | After-sales Service Provided: | Overseas service center available |
Product Description
1. Features:
* Shangchai Caterpillar tech SC11CB220G2B1 engine is adopted, large torque backup and strong power.
* Single stage, 4 elements, twin turbo ZL50 torque converter and planetary gearbox from Hangzhou Advance Gearbox Group, compact structure and high reliability.
* Gear-shift with 2 forward and 1 reverse controlled by flexible shaft eases much labor.
* Strengthened axles owning large bearing capacities and high reliability.
* Twin pump merging hydraulic system makes lower consumption and excellent performance.
* The coaxes flow-amplified, hydraulic compensated steering makes operation easy and performance reliable.
* Both travel system and working hydraulic system are forced-cooled, improving the efficiency obviously.
* Air over hydraulic brake system; eight caliper disc brakes.
* Air break control, expand hoof type parking brake and emergency brake.
* Working device with automatically leveling ability at high position.
* Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
* Integral, luxury instrument board.
* New, luxury cabin
2.Main Specifications:
Item | Specification | Item | Specification |
Bucket capacity | 3m³ | Min. turning radius (outside of rear wheel) | 6360mm |
Rated load | 5000kg | Steering angle | 35° |
Dumping height | 3100mm | Min. ground clearance | 478mm |
Dumping reach | 1285mm | Wheel base | 3200mm |
Boom lifting time | 6.8s | Wheel tread | 2250mm |
Max. speed | 36km/h | Rated power | 162kW/2200rpm |
Max. breakout force | 170kN | Tyre | 23.5-25 |
Max. drawing force | 150kN | Overall dimensions | 7960*3070*3490mm |
Max. grade ability | 28° | Operating weight | 17000kg |
Remark: Heavy chassis for standard
3. Quality certificate:
(1)CE Approved.
(2)Obtained the certificate of ISO9001:2008.
(3)Manufacturing license number: TS2510025-2009.
4. Others:
(1) Packing: 1 unit naked within 1 x 40HQ container
(2) Delivery time: 40 days
(3) Accidental benefits: Customers can purchase wearing parts according to the parts list we offered.
(4) Guarantee Period: One year
(5)Offer Validity: 30 days
Shandong Yineng Heavy Industry Co., Ltd is specialized in 1 ton to 6 ton wheel loader, off road forklift & special-purpose loaders’ designing, manufacturing and selling with 16 years experience. Featuring the cost-effectiveness, our products have been exported to more than 40 countries with satisfactory feedbacks, like Germany, Russia, Brazil, Argentina, Indonesia, Saudi Arabia, Iran, Iraq, Algeria, Australia, South Africa, Singapore, New Zealand, etc. We always keep the good quality, good price and good service to our customers.
