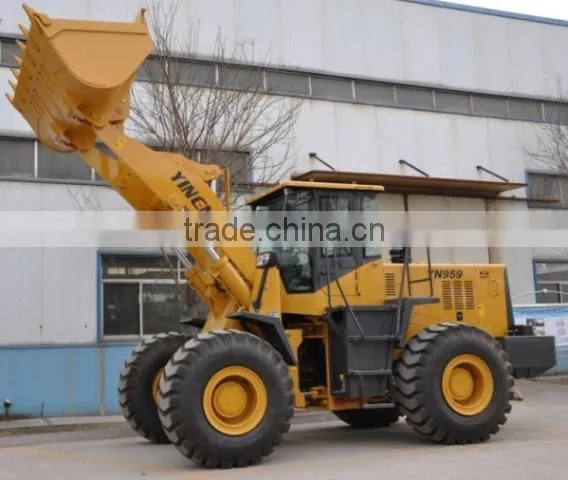

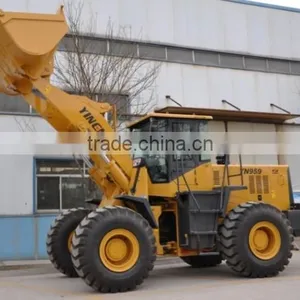

Bucket capacity 3m3; Rated load 5t;Dumping height 3100mm; Operating weigh 17000kg; Weichai Styer engine
1- FEATURES AND OPTIONALS:
*WEICHAI styer engine is adopted, with large torque backup and strong power.
*Hangzhou Advance Gear Group WG180 torque converter and fix-shaft gearbox, with ZF technology.
*Electro-hydraulic control, 4 forward and 3 reverse,

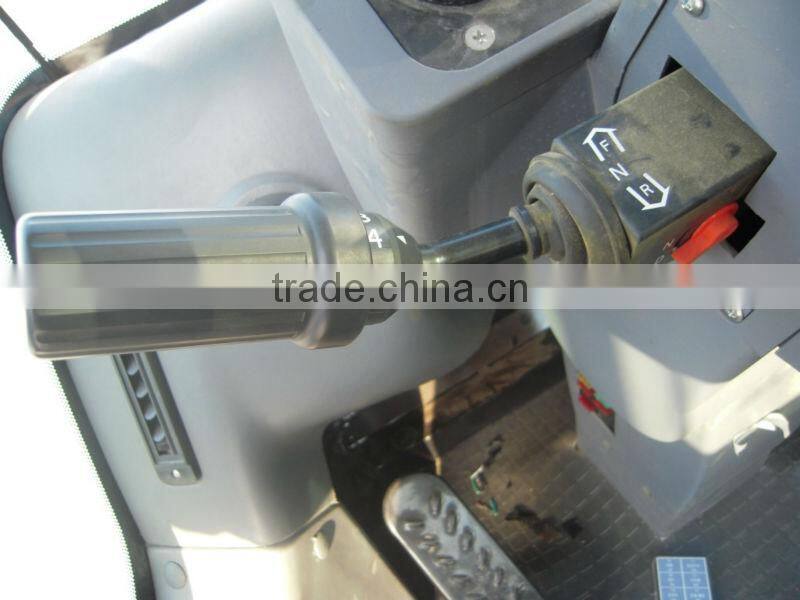

*Single lever pilot control system makes operation easy and comfortable.
*Strengthened axles owns large bearing capacities and high reliability.
*Twin pump merging hydraulic system makes lower consumption and excellent performance.
*The coaxes flow-amplified, hydraulic compensated steering makes operation easy and performace reliable.
*Both travel system and working hydraulic system are forced-cooled, improving the efficiency obviously.
*Air over hydraulic brake system; Eight caliper disc brakes.
*Air break control, expand hoof type parking brake and emergency brake.
*Large space articulated frame makes operation and traveling stable.
*Working device with automatically levelling ability at high position.
*Main articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
*Integral, luxury instrument board.

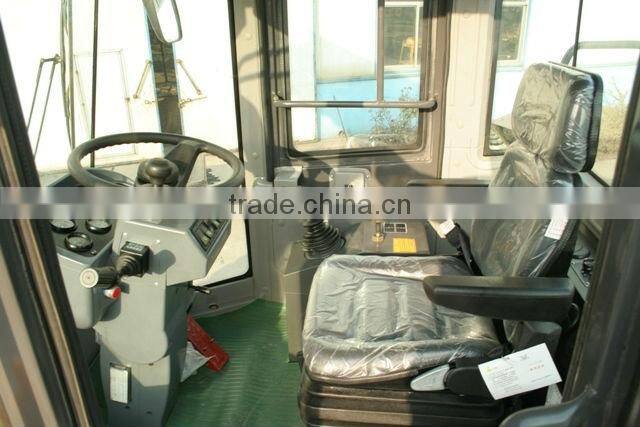

*New, luxury cabin.
OPTIONALS:
• Original Cummins engine
(Model QSB6.7, Eur III)
• DongFeng Cummins Engine
(Model: 6CTA8.3-C215, from DongFeng Cummins Co.);
• ZF Technology Gear Box (Model: WG180);
• Hydraulic Joystick Control;
• Air Conditioner
*CE Approved.
*Obtained the certificate of ISO9001:2000;
*Manufacturing license number: TS2510025-2009.
1- SPECIFICATIONS:
Item |
Specification |
Item |
Specifications |
Bucket capacity |
3 m3 |
Min. turning radius (outside of rear wheels) |
6630mm |
Rated load |
5000 kg |
steering angle |
38º |
Dumping height |
3100 mm |
Min. ground clearance |
500mm |
Dumping reach |
1280 mm |
Wheel base |
3200mm |
Boom lifting time |
6 S |
Tread |
2250mm |
Total cycling time |
12 S |
Engine model |
weichai styer |
Max. speed |
38 km/h |
Rated power |
162kW/2200rpm |
|
Max. breakout force |
180 kN |
Tyre |
23.5-25 |
Max.drawing force |
152 kN |
Overall dimensions |
7960*3070*3400mm |
Max. Gradeability |
30° |
Operating weight |
17000kg |
