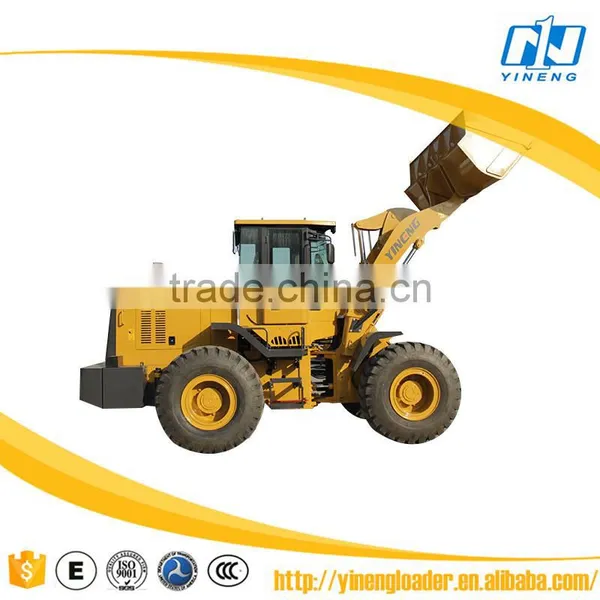

Help Center4 Ton Front Wheel Loader for Sale YN940 Adopt Cummins Engine 2.4cbm Bucket Capacity
Related Products
-
One Sale Eourope ISO2000 Approved SHAN DONG Yineng YN 940 Loader 2.35cbm 4ton LoaderNegotiableMOQ: 1 Set -
ISO2000 Approved SHAN DONG Yineng YN 940 Loader Luneng Machinery LN YN Iso 9001 2.35cbmNegotiableMOQ: 1 Set
-
YN940 Wheel Loader With YINENG BrandNegotiableMOQ: 1 Unit
-
4000kg Front End LoaderUS$ 30,000 - 450,000MOQ: 1 Unit
-
YN940 Wheel LoaderNegotiableMOQ: 1 Unit
1.Main Specifications:
|
Performance |
1 |
Rated load |
4000kg |
2 |
Overall weight |
12360kg |
|
3 |
Rated capacity |
2.35m3 |
|
4 |
Max. Tractive force |
100KN |
|
5 |
Max. Breakout force |
≥120KN |
|
6 |
Max. Grade ability |
30° |
|
7 |
Max. Dumping height |
3250mm |
|
8 |
Max. Dumping reach |
1100mm |
|
9 |
Overall dimension L x W x H |
6910x2510x3300mm |
|
10 |
Min. Turning radius |
5160mm |
|
|
Engine |
11 |
Model |
DongfengCummins6BTA5.9-C150 |
12 |
Type |
Turbocharged water & air colling |
|
13 |
No. of cylinder-bore/stoke |
6-102x120mm |
|
14 |
Rated power |
112kw-2200r/min |
|
15 |
Max. torque |
670N.m |
|
16 |
Min. Fuel-consume ratio |
≤205g/kw.h |
|
|
Transmission |
17 |
Model |
YD13 electronic control gearbox |
18 |
Gear shift |
4 forward, 3 reverse. Electronic control gear shift |
|
19 |
Max. speed |
36km/h |
|
|
Drive axle |
20 |
Main reducing spiral |
Bevel gear grade 1 reduction |
21 |
Decelerating mode |
Planetary reduction, grade 1. |
|
22 |
Wheel base |
2845mm |
|
23 |
Wheel tread |
1865mm |
|
24 |
Min. ground clearance |
380mm |
|
|
Hydraulic system |
25 |
System working pressure |
18MPa |
26 |
Boom lifting time |
5.5+0.2s |
|
27 |
Total time |
10+0.5s |
|
28 |
Fuel tank capacity |
120L |
|
29 |
Leveling automatically |
Yes |
|
|
Break system |
30 |
Service brake |
Air over hydraulic disc brake on 4 wheels |
31 |
Parking brake |
Air break control |
|
|
Tyre |
32 |
Type |
20.5-25 |
33 |
Front tyre pressure |
0.35Mpa |
|
34 |
Rear tyre pressure |
0.2Mpa |
Remark:YD13 electronic control gearbox,Joystick control and heavy chassis for standard
2. Quality certificate:
(1)CE Approved.
(2)Obtained the certificate of ISO9001:2008.
(3)Manufacturing license number: TS2510025-2009.
3. Others:
(1) Packing: 1 unit naked within 1 x 40HQ container
(2) Delivery time: 40 days
(3) Guarantee Period: One year
(4) Offer Validity: 30 days
