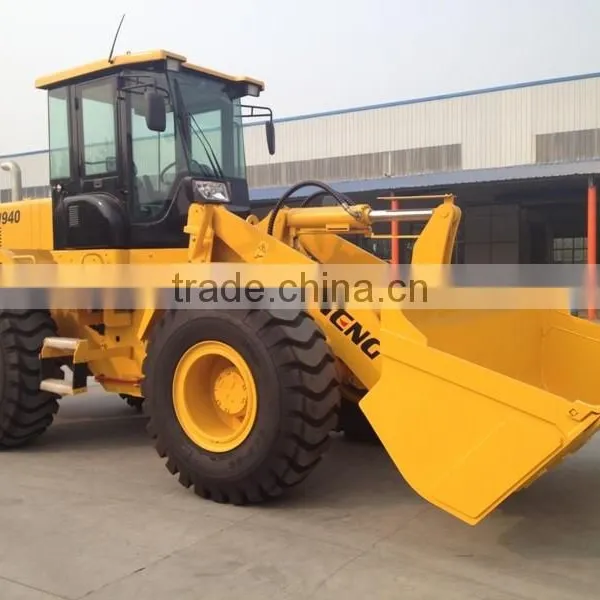

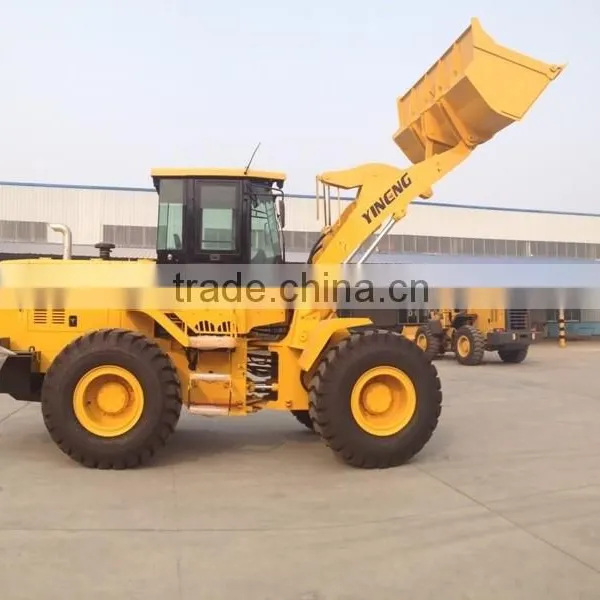

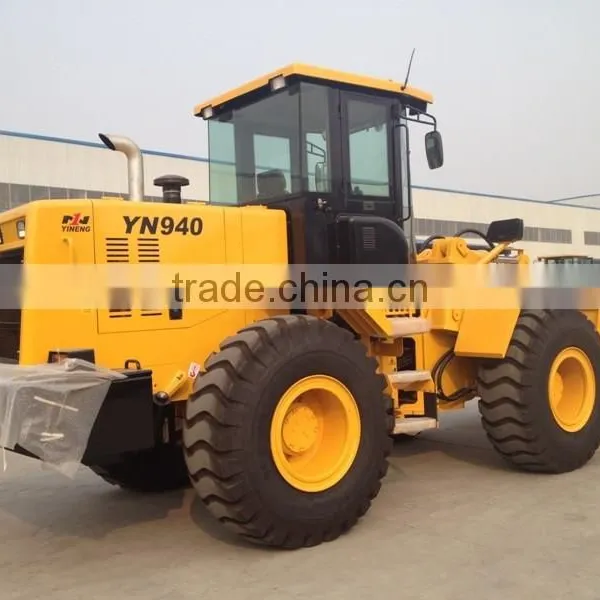

YN940 Wheel Loader

Performance

1

Rated load

4000kg

2

Overall weight

12360kg

3

Rated capacity

2.5m3

4

Max. Tractive force

100KN

5

Max. Breakout force

≥120KN

6

Max. Grade ability

30°

7

Max. Dumping height

3250mm

8

Max. Dumping reach

1100mm

9

Overall dimension L x W x H

6910x2510x3300mm

10

Min. Turning radius

5160mm

Engine

11

Model

Dongfeng Cummins 6BTA5.8-C150

12

Type

Turbocharged  water & air colling

13

No. of cylinder-bore/stoke

6-102x120mm

14

Rated power

112kw-2200r/min

15

Max. torque

670N.m

16

Min. Fuel-consume ratio

≤205g/kw.h

 Transmission

17

Model

YD13 electronic control gearbox

18

Gear shift

4 forward, 3 reverse.

Electronic control gear shift

19

Max. speed

36km/h

Drive axle

20

Main reducing spiral

Bevel gear grade 1 reduction

21

Decelerating mode

Planetary reduction, grade 1.

22

Wheel base

2845mm

23

Wheel tread

1865mm

24

Min. ground clearance

380mm

Hydraulic system

25

System working pressure

18MPa

26

Boom lifting time

5.5+0.2s

27

Total time

10+0.5s

28

Fuel tank capacity

120L

29

Leveling automatically

Yes

Break system

30

Service brake

Air over hydraulic disc brake on 4 wheels

31

Parking brake

Air break control

Tyre

32

Type

20.5-25

33

Front tyre pressure

0.35Mpa

34

Rear tyre pressure

0.2Mpa
