High configuration wheel loader Model YN746
Technical Parameters:
|
Performance
|
1 |
Rated load |
4000kg |
2 |
Overall weight |
13200kg |
|
3 |
Rated capacity |
2.35m3 |
|
4 |
Max. Tractive force |
100KN |
|
5 |
Max. Breakout force |
≥120KN |
|
6 |
Max. Grade ability |
30° |
|
7 |
Dumping height |
3176mm |
|
8 |
Max. Dumping reach |
1095mm |
|
9 |
Overall dimension |
7670×2680×3375mm |
|
10 |
Min. Turning radius |
6052mm |
|
|
Engine
|
11 |
Model |
Dongfeng Cummins 6BTA5.9-C180 |
12 |
Type |
Turbocharged water & air cooling |
|
13 |
No. of cylinder-bore/stoke |
6-102x120mm |
|
14 |
Rated power |
132kw- 2200r/min |
|
15 |
Max. torque |
750N.m |
|
16 |
Min. Fuel-consume ratio |
≤212g/kw.h |
|
|
Transmission
|
17 |
Model |
4WG180 Gearbox |
18 |
Gear shift |
4 forward, 3 reverse. Electronic control gear shift |
|
19 |
Max. speed |
35km/h |
|
|
Axle |
20 |
Type of main reducer |
Bevel gear grade 1 reduction |
21 |
Gear ratio of main reducer |
5.286 |
|
22 |
Type of final reducer |
Planetary |
|
23 |
Gear ratio of final reducer |
4.26 |
|
24 |
Total ratios |
22.52 |
|
25 |
Wheel base |
3067 mm |
|
26 |
Wheel tread |
1860mm |
|
27 |
Min. ground clearance |
460mm |
|
|
Hydraulic system |
28 |
System working pressure |
18 MPa |
29 |
Boom lifting time |
5.5+ 0.2s |
|
30 |
Total time |
9.8+ 0.2s |
|
31 |
Fuel tank capacity |
150L |
|
32 |
Leveling automatically |
Yes |
|
Break system |
33 |
Service brake |
Air over hydraulic disc brake on 4 wheels |
34 |
Parking brake |
Air break control |
|
|
Tyre |
35 |
Type |
20.5-25 16PR |
36 |
Front tyre pressure |
0.35Mpa |
|
37 |
Rear tyre pressure |
0.3Mpa |

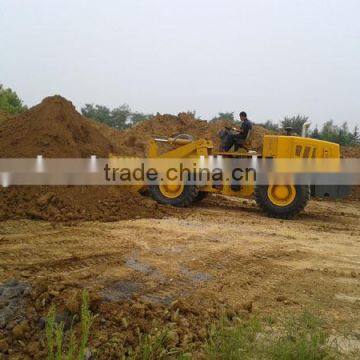

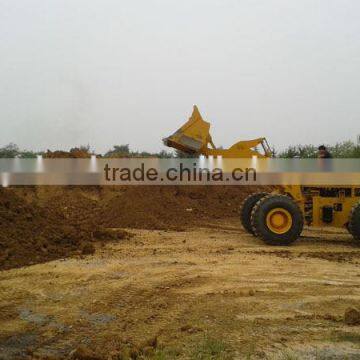

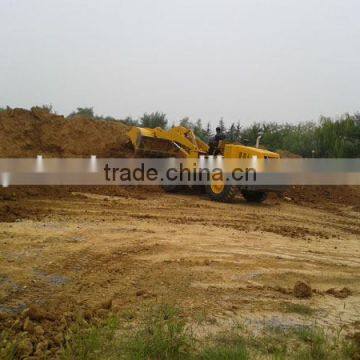

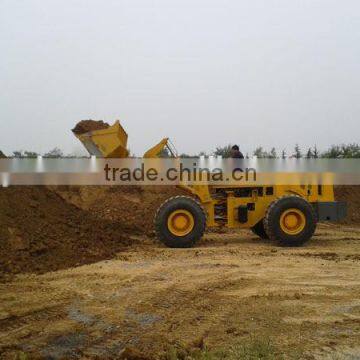

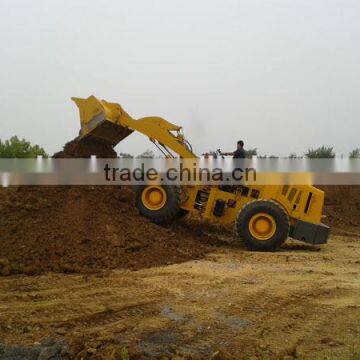

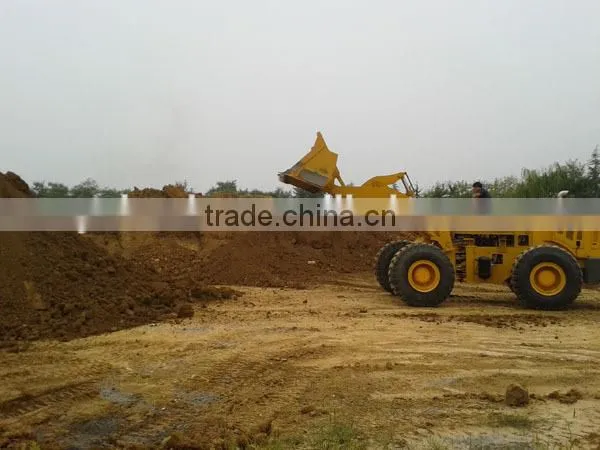

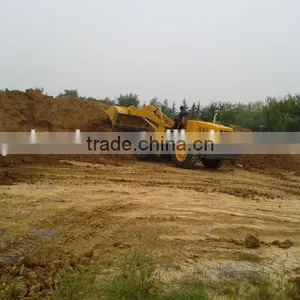

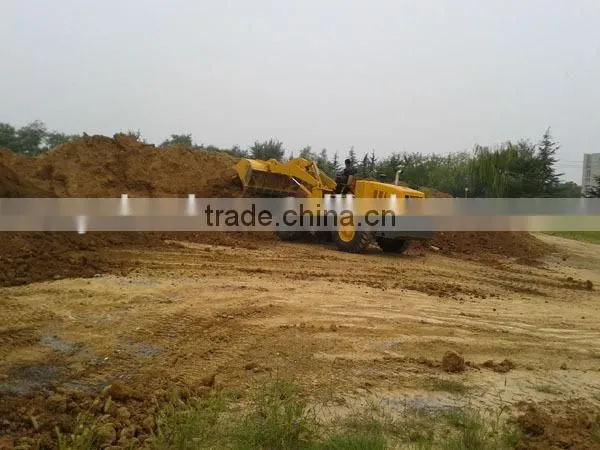

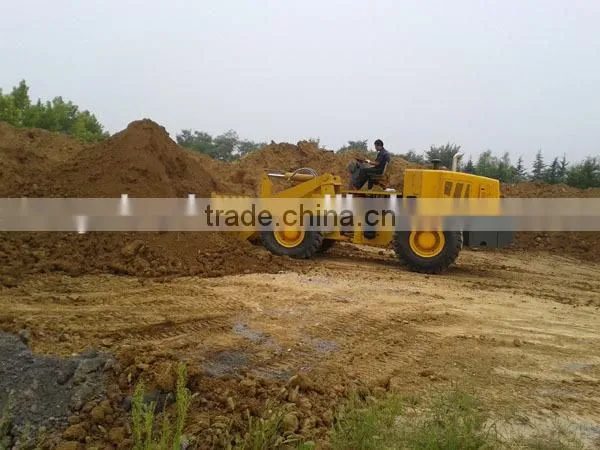

Detailed Picture:
Built in year 1999; covers area of 70,000 square meter; Fixed assets-200 million RMB;It belongs to Shandong Yineng Group.
Specialized in wheel loader R&D, manufacturing and marketing. More than 10 years professional manufacturing
experience.
Under the guide of company Business philosophy "Continuous innovation, step-by-step",
New products are constantly being developed, and quickly occupy the domestic market. Furthermore, owing to
the strict quality control, our farm machines have exported to many countries,such as :Russia,Australia,South
Africa, South-East Asia, South America etc.
We will always be dedicated ourselves to provide high quality prod-ucts and service.
Shandong Yineng Group
Include Five Branch Companies:
Shandong Yineng Jiuxin Farming Equipment Co., Ltd
Shandong Yineng Heavy Industry Co., Ltd
Taian Luneng Machinery Co., Ltd
Taian Luneng Import & Export Co.,Ltd
Taian Yineng Hydraulics Co., Ltd
How about Payment terms?
1.100% T/T before delivery.
2.30% T/T in advance, balance will be paid before delivery.(FOB)
3.30% T/T in advance, balance will be paid against copy of B/L.(CIF)
4.L/C at sight.
5.If you have other payment terms, pls inform us. We can consider it.
