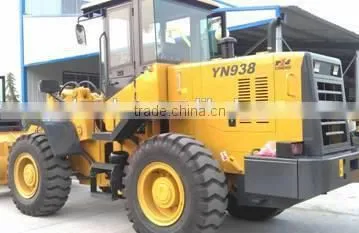

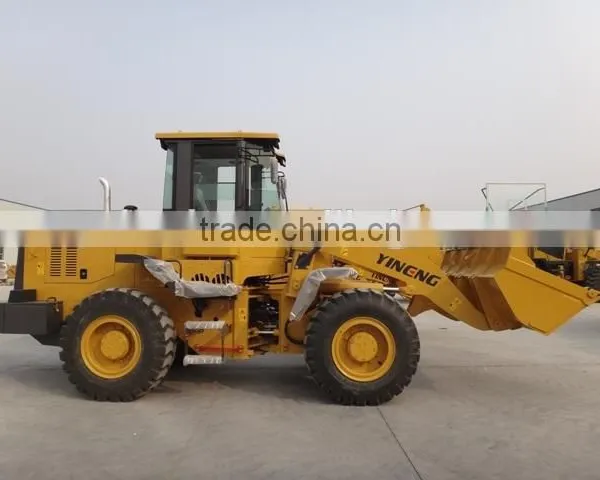

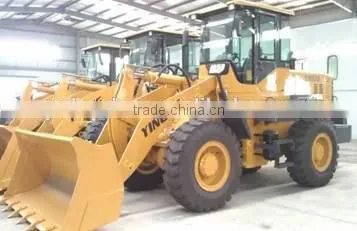

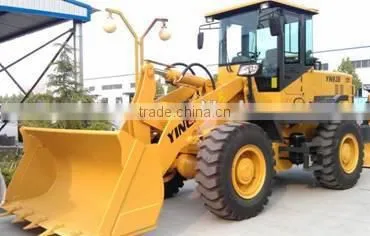

938 Wheel Loader

Name: 938 Wheel Loader
Brand: YINENG
SKU: 141006568
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

YINENG

Model Number:

938

Shandong Yineng Heavy Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name YINENG

Model Number 938

Place of Origin Shandong, China

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 7020*2510*3230mm

Rated Load 3000 KG

Certification CE and ISO

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

1. Features:

* Weichai DEUTZ WP6G125E23 diesel engine, higher power and reliability

* Hydrodynamic transmission, three-element and single stage torque converter, high reliability, easy maintenance.

* Hangzhou Advance Gearbox Group BS428 power shift transmission, high efficiency and easy maintenance.

* Gear-shift controlled by flexible shaft makes operation more flexible and reliable.

* Single lever joystick control system, comfortable and flexible operation.

* Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage;

* Air over hydraulic disks on four wheel brakes.

* Large space articulated frames make operation and traveling stable.

* Working device with automatically leveling ability at high position.

* Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.

* Integral, luxury instrument board.

* New, luxury cabin

2.Main Specifications:

Item	Specification	Item	Specification
Bucket capacity	1.8m³	Min. turning radius (outside of rear wheel)	5160mm
Rated load	3000kg	Steering angle	36°
Dumping height	3000mm	Min. ground clearance	375mm
Dumping reach	1050mm	Wheel base	2850mm
Boom lifting time	5.5s	Wheel tread	1700mm
Max. speed	36km/h	Rated power	92kW/2300rpm
Max. breakout force	103kN	Tyre	17.5-25
Max. drawing force	90kN	Overall dimensions	702025103230mm
Max. grade ability	30°	Operating weight	10500kg
