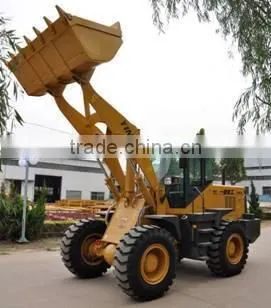

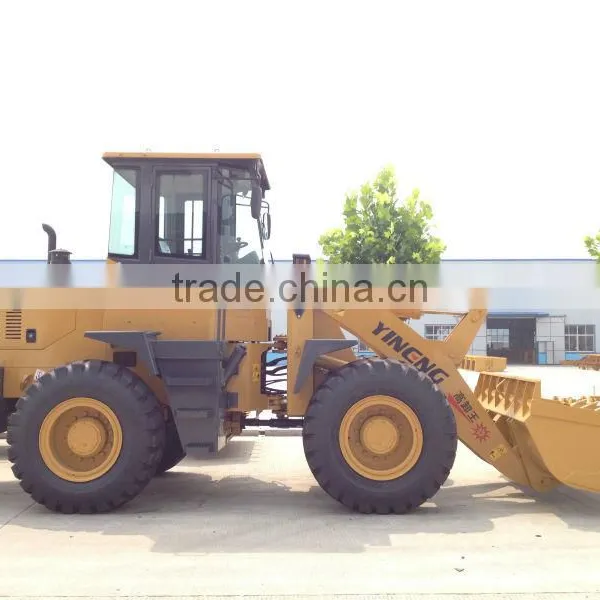

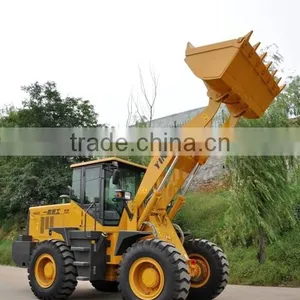

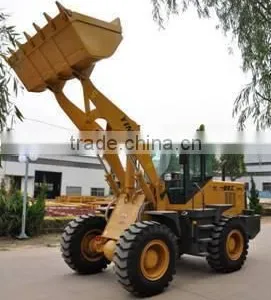

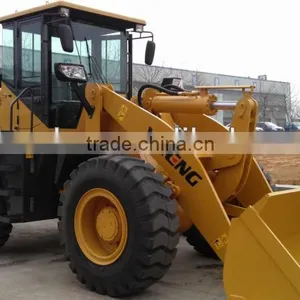

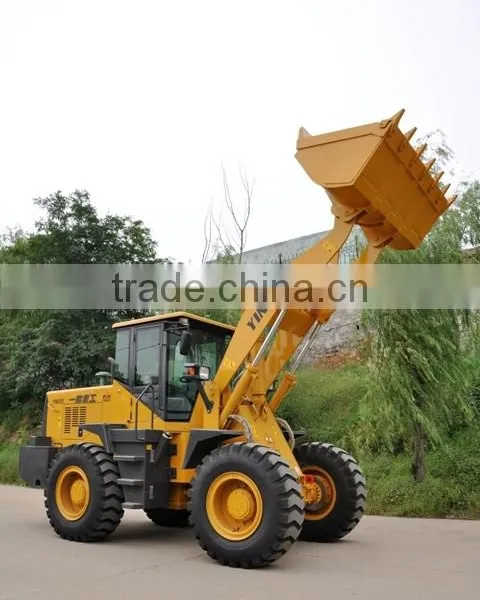

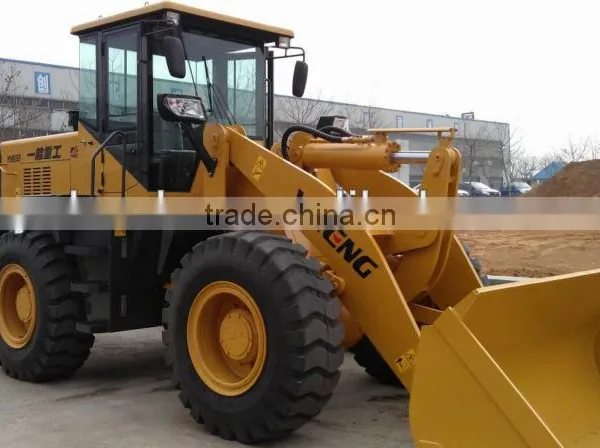

Help Center935 Wheel Loader
Related Products
-
Hot Sale ZL30 With CE;ISO Provided YN 938 LoaderNegotiableMOQ: 1 Set -
First Class CE Provided 3 Ton Front Wheel Loader for Sale YN938 Adopt Duetz EngineNegotiableMOQ: 1 Set
-
First Class CE Provided 3 Ton Front Wheel Loader for Sale YN935 Adopt DUETZ Engine 1.7cbm Bucket CapacityNegotiableMOQ: 1 Set
-
Hot Sale CE Provided 3 Ton Front Wheel Loader YN938 Adopt Duetz Engine 1.8cbm Bucket CapacityNegotiableMOQ: 1 Set
-
Hot Sale 3 Ton Front Wheel Loader YN935 Adopt DUETZ EngineNegotiableMOQ: 1 Set
1. Features:
* Deutz WP6G125E23 high-power engine, large power storage;
* Torque-converter and gear box, the detached structure makes easy maintenance;
* Main articulated points take sealed, lubricated, double dust-proof layers, which owns good durability;
* The strengthened bucket attached with peripheral tooth is more wear-resisting and reliable;
* Doubly sealed hydraulic pipeline joints with 24° awl and O ring of international standard, avoided the oil leakage effectively;
* Air over hydraulic disks on four wheel brakes;
* Working device with automatically leveling ability at high position;
* Integral, luxury instrument board;
* New, luxury cabin.
2.Main Specifications:
Item |
Specification |
Item |
Specification |
Bucket capacity |
1.7m³ |
Min. turning radius (outside of rear wheel) |
5160mm |
Rated load |
3000kg |
Steering angle |
35° |
Dumping height |
3050mm |
Min. ground clearance |
410mm |
Dumping reach |
1105mm |
Wheel base |
2600mm |
Boom lifting time |
5.5s |
Wheel tread |
1800mm |
Max. speed |
38km/h |
Rated power |
92kW/2200rpm |
Max. breakout force |
120kN |
Tyre |
17.5-25 |
Max. drawing force |
90kN |
Overall dimensions |
6990*2420*3000mm |
Max. grade ability |
30° |
Operating weight |
9800kg |
3. Quality certificate:
(1)CE Approved.
(2)Obtained the certificate of ISO9001:2008.
(3)Manufacturing license number: TS2510025-2009.
4. Others:
(1)Packing: 1 unit naked within 1 x 40HQ container
(2) Delivery time: 30 ~ 40 days
(3)Accidental benefits: Customers can purchase wearing parts according to the parts list we offered.
(4) Guarantee Period: One year
(5)Offer Validity: 30 days
