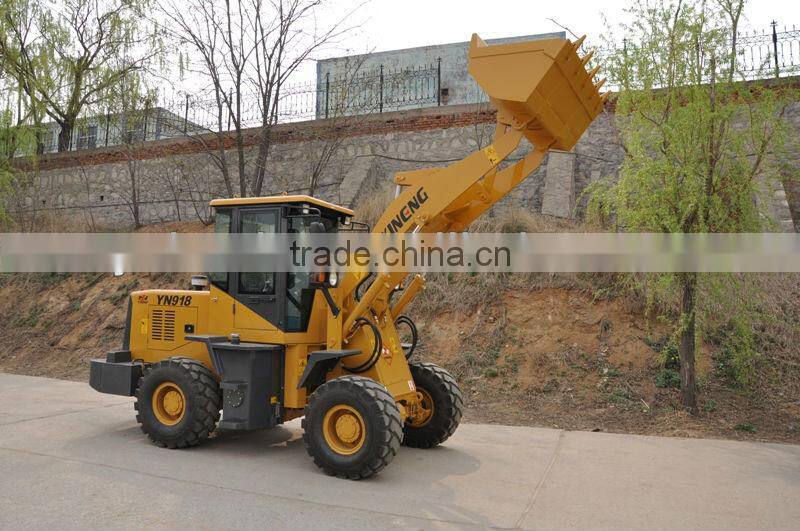

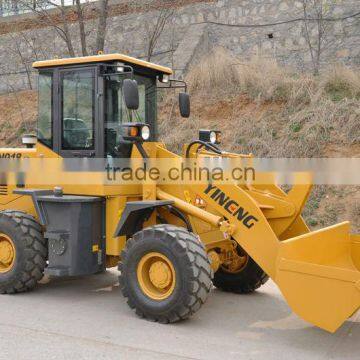

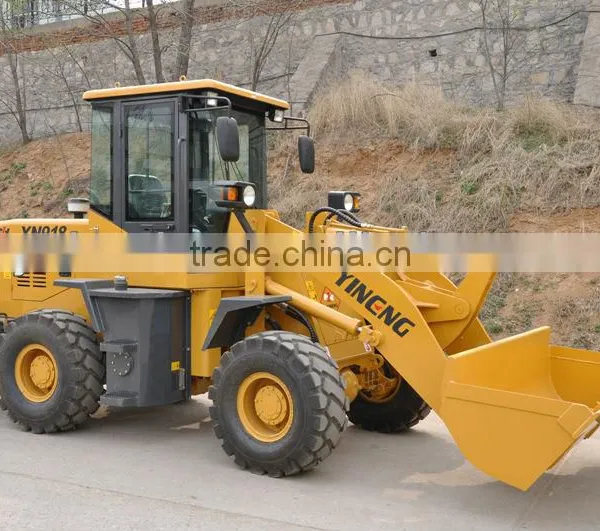

Front Wheel Loader 1.5ton

Front Wheel Loader 1.5ton photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
yinenYINENG
Model Number:
YN918
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Brand Name yinenYINENG
Model Number YN918
Place of Origin Shandong, China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 5520*1800*2650MM
Rated Load 1500kg
Certification GOST,CE,ISO
Warranty 1 YEAR
After-sales Service Provided Overseas service center available

Specifications

Bucket capacity0.7m3, Rated load 1500kg, Dumping height 2700mm, Rated Power 38kw

Bucket capacity0.7m3, Rated load 1500kg, Dumping height 2700mm, Rated Power 38kw
1-      FEATURES:

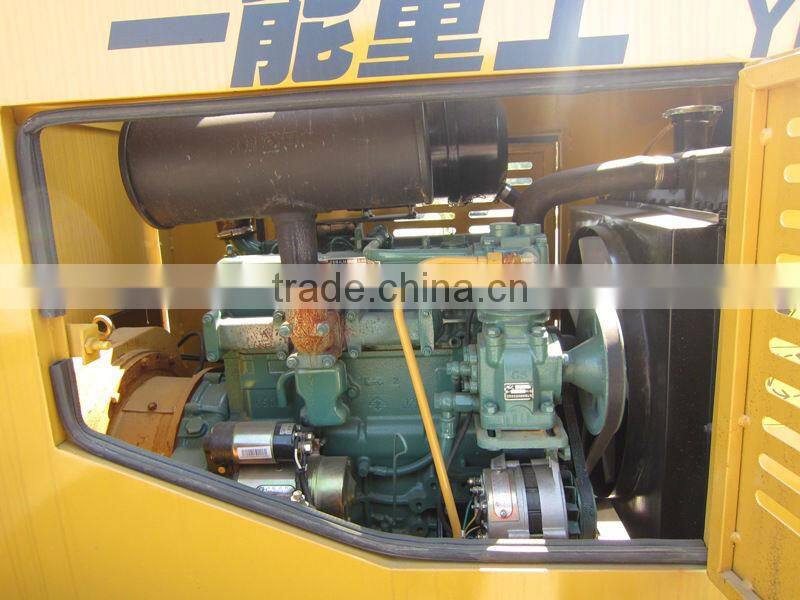

* Adopt Jiangsu Changchai four cylinder diesel engine.

*Hydrodynamic transmission technology and separated structure make high reliability and easy maintenance.

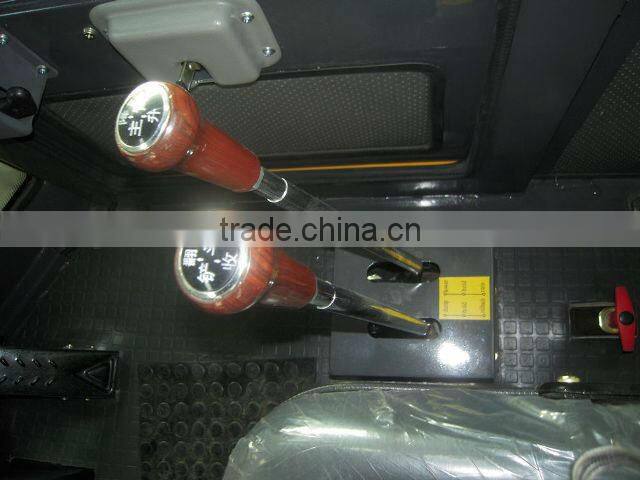

* Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operate easy.

* Single pump, split flow working hydraulic system makes lower consumption and excellent performance.

* Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage;

* Load sensing fully hydraulic steering system makes operation easy.

* Air over hydraulic brake system; Caliper disc brakes.

* Working device with automatically levelling ability at high position.

* Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.

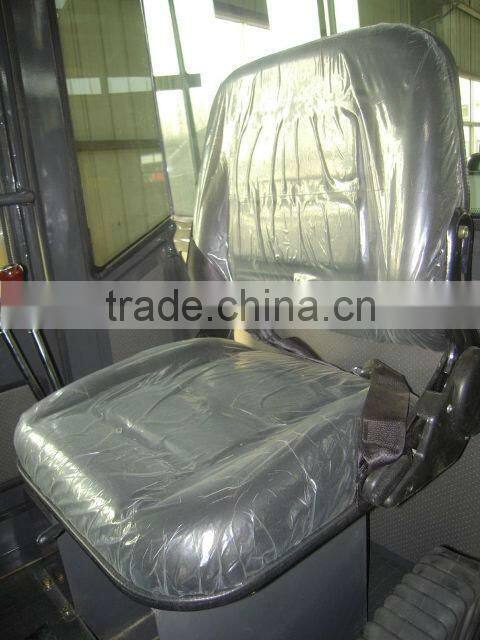

* Integral, luxury instrument board. New, luxury cabin.



2-      SPECIFICATIONS:



Item

Specifications

Item

Specifications

Bucket capacity

0.7 m3

Min. turning radius

(outside of rear wheel)

4200mm

Rated load

1500 kg

Steering angle

35º (L/R)

Dumping height

2700 mm

Min. ground clearance

250mm

Dumping reach

860 mm

Wheel base

2150mm

Boom lifting time

4.5 S

Tread

1400mm

Total cycling time

9 S

Engine model

4L68

Max. speed

19km/h

Rated power

38kW/2400rpm

Max. breakout force

46 kN

Tyre

16/70-16

Max.drawing force

33 kN

Overall dimensions

5520*1800*2650mm

Max. Gradeability

28°

Operating weight

4500kg



3-OPTIONAL:

Air Condition

Quick Hitch (Fork)
ROPS Cabin
