Adopt Jiangsu Changchai 4L68 Diesel Engine. |
Hydrodynamic transmission technology and separated structure make high reliability and easy maintenance |
Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse se gears makes operate easy. |
Single pump, split flow working hydraulic system makes lower consumption and excellent performance. |
Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage |
Load sensing fully hydraulic steering system, easy and flexible operation |
Air over hydraulic brake system; Caliper disc brakes |

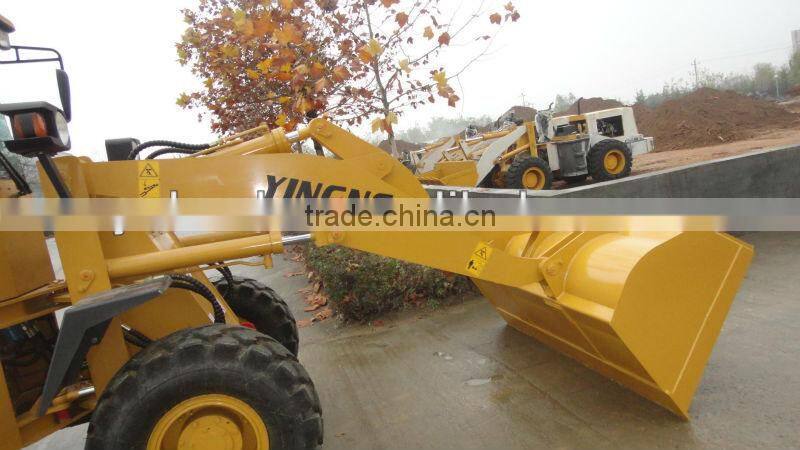

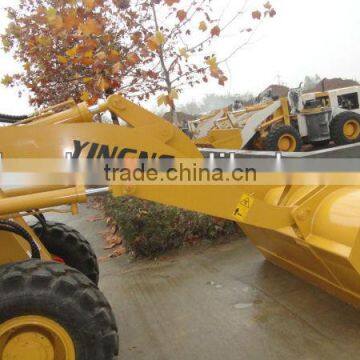

Working device with automatically leveling ability at high position |

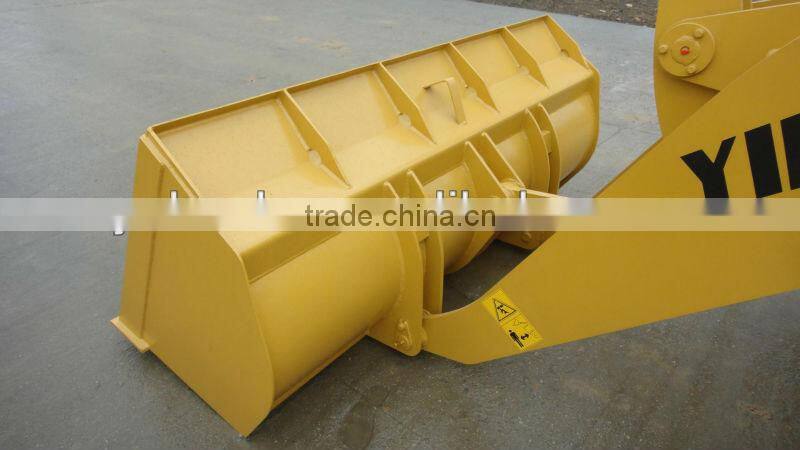

Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability |
Integral, luxury instrument board. |

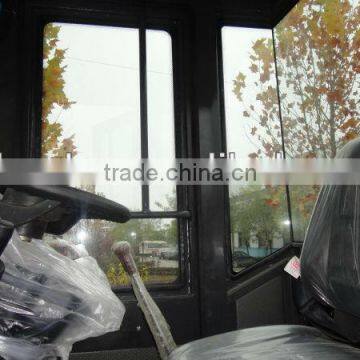

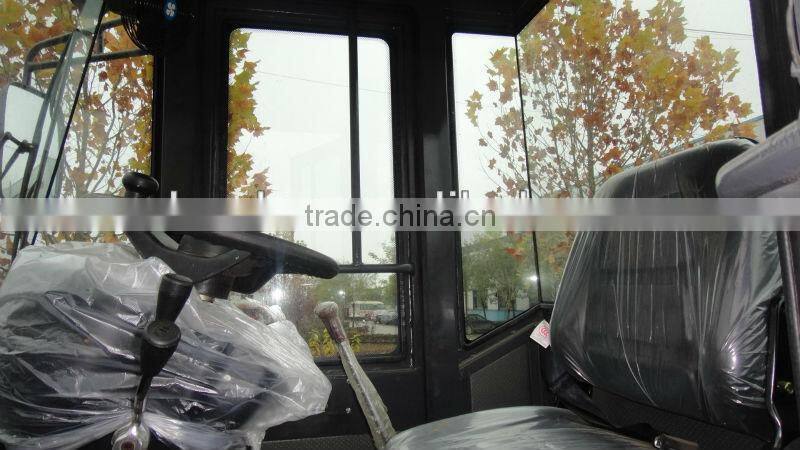

New, luxury cabin |
Item |
Specification |
Item |
Specification |

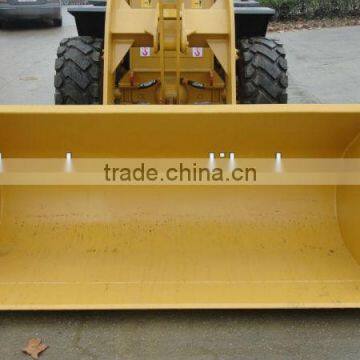

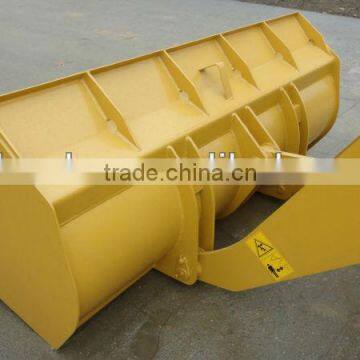

Bucket capacity |
0.7m3 |
Rated power |
38kW/2400rpm |
Rated load |
1500kg |
Tyre |
20.5-16 |
Dumping height |
2700mm |
Overall dimensions |
5520*1800*2650 |
Max. breakout force |
40 KN |
Operating weight |
4500kg |
Max. drawing force |
32 KN |
|
|
