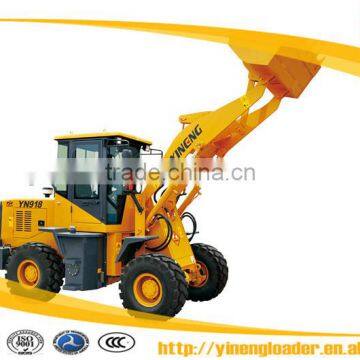

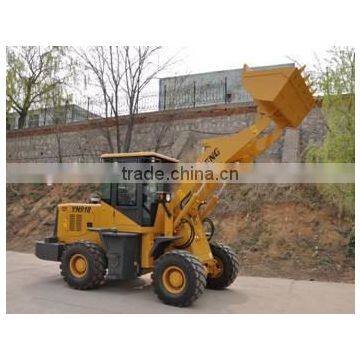

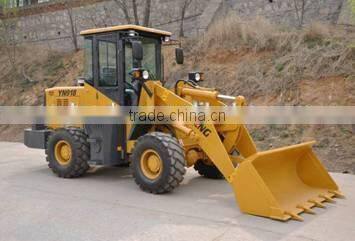

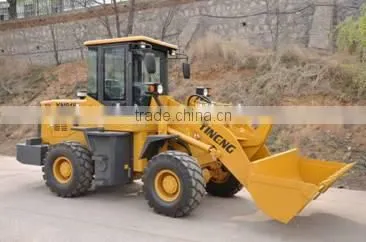

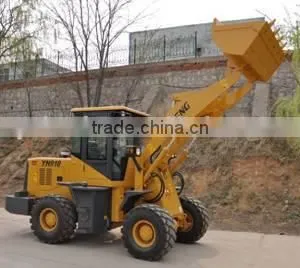

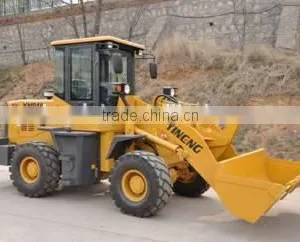

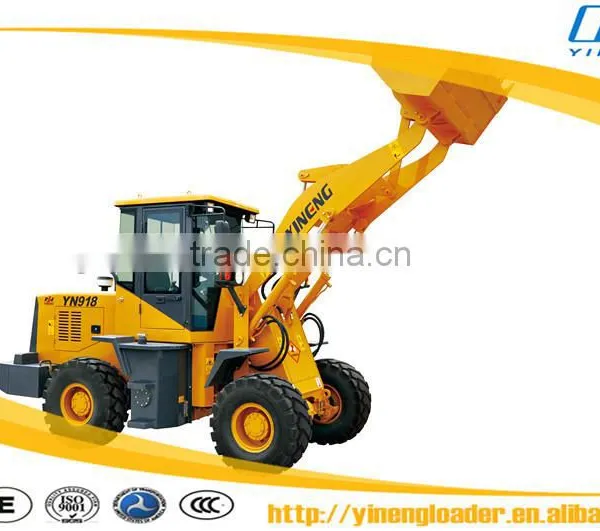

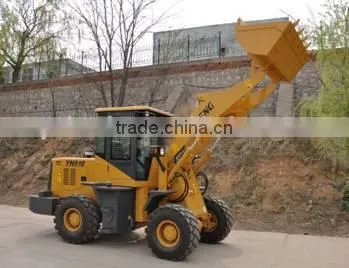

CE Provided 1ton Front Wheel Loader YN918 0.7cbm Bucket Capacity

Name: CE Provided 1ton Front Wheel Loader YN918 0.7cbm Bucket Capacity
Brand: Yineng
SKU: 141006336
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

Yineng

Model Number:

YN 918

Shandong Yineng Heavy Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name Yineng

Model Number YN 918

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 5520*1800*2650 mm

Rated Load 1500kg

Certification CE;ISO

Warranty 6 months

After-sales Service Provided Overseas service center available

1. Features:

* Adopt Jiangsu Changchai four cylinder diesel engine.

*Hydrodynamic transmission technology and separated structure make high reliability and easy maintenance.

* Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operate easy.

* Single pump, split flow working hydraulic system makes lower consumption and excellent performance.

* Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage;

* Load sensing fully hydraulic steering system makes operation easy.

* Air over hydraulic brake system; Caliper disc brakes.

* Working device with automatically leveling ability at high position.

* Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.

* Integral, luxury instrument board.

* New, luxury cabin.

2.Main Specifications:

Item	Specifications	Item	Specifications
Bucket capacity	0.7 cbm	Min. turning radius (outside of rear wheel)	4200 mm
Rated load	1500 kg	Steering angle	35º (L/R)
Dumping height	2700 mm	Min. ground clearance	250 mm
Dumping reach	860 mm	Wheel base	2150 mm
Boom lifting time	4.5 S	Tread	1400 mm
Total cycling time	9 S	Engine model	4L68
Max. speed	19 km/h	Rated power	38 kW/2400 rpm
Max. breakout force	46 KN	Tire	20.5-16
Max. drawing force	33 kn	Overall dimensions	552018002650 mm
Max. Grade ability	28 degree	Operating weight	4500kg
