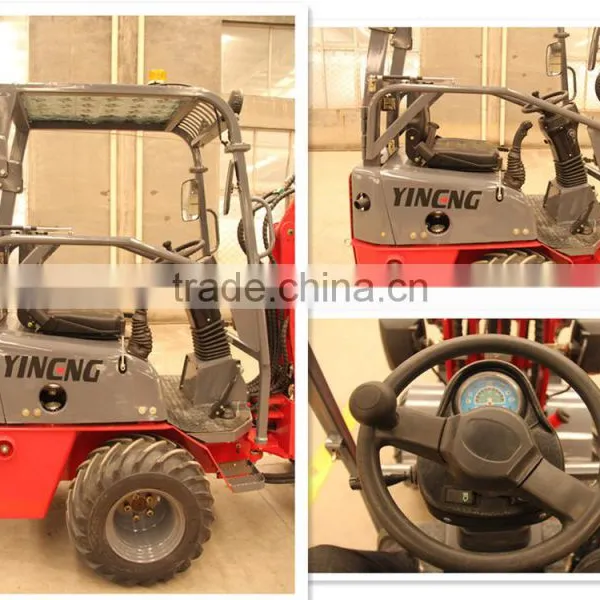

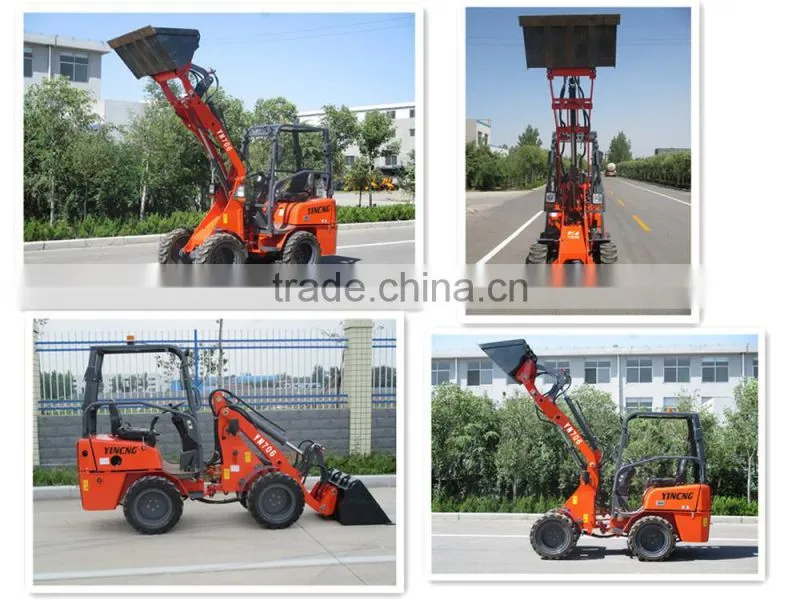

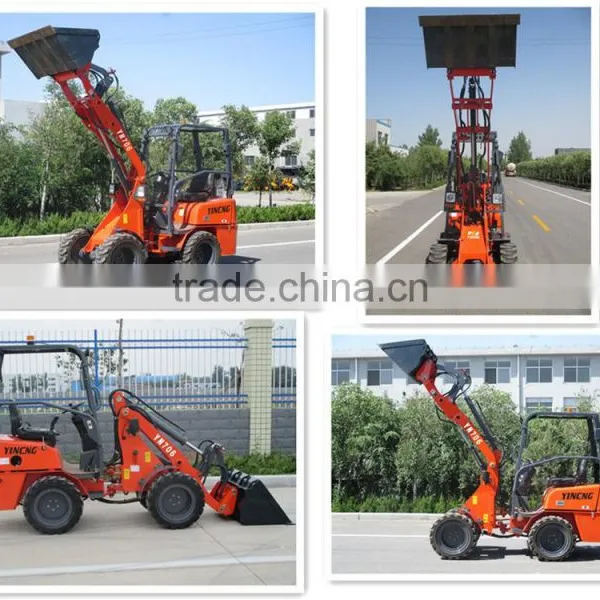

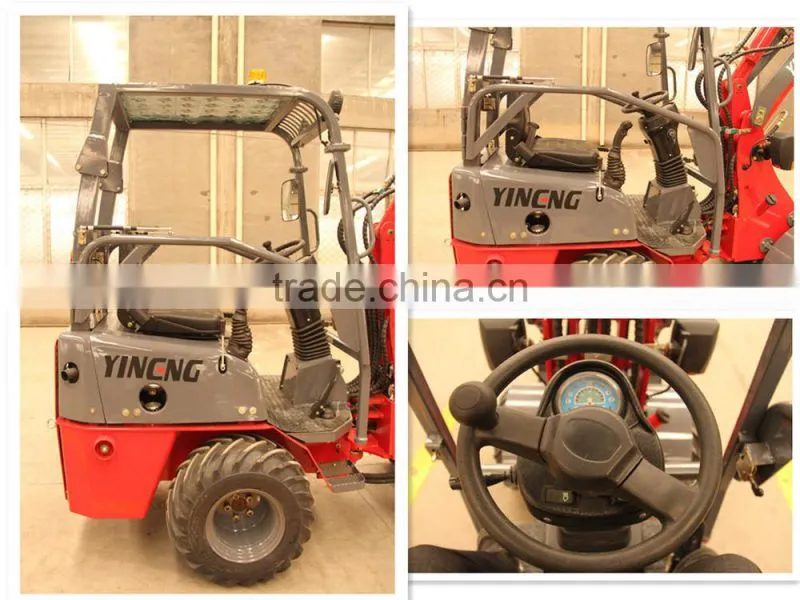

YN706 Mini Loader
Adopt original Perkins engine, American Eaton hydraulic steering unit , original Italian hydraulic control valve, standard bucket, big arm and bucket floating.
Specifications of YN706 Compact Loader
1. Perkins or Kubota engine and italy hydraulic pump;
2. New articulated and steering style, let u operate more stably;
3. Min width 950mm, less than 1.9m high, go across door easily;
4. 43° big turning angle, much more flexible to operate;
5. Side support and enhanced working devices ensure safe;
6.Either multi-integrated joystick or hydraulic arm damping system, your best choice;
7.Cabin with heater and canopy can be exchanged.
YN706 Technical Parameters | |
Engine / Motor |
|
Engine / Motor manufacturer |
Perkins |
Engine / Motor type |
403D-11 |
Engine performance |
18.5 kW |
at rpm maximum |
2,800 rpm |
Displacement |
1,131 cm³ |
Operating data and Weights |
|
Operating weight |
1560kg |
Speed Level 1 |
0-12 km/h |
Bucket capacity Standard bucket |
0.25m³ |
Lifting force maximum |
1,981 daN |
Breakaway force maximum |
1,242 daN |
Tipping load with bucket - machine straight |
850 kg |
Tipping load with pallet fork -machine straight |
690 kg |
Tipping load with bucket - machine at angle |
580 kg |
Tipping load with pallet fork - machine at angle |
540 kg |
Hydraulic system |
|
Driving hydraulics - operating pressure |
300bar |
Driving hydraulics - discharge capacity |
84 L/min |
Operating hydraulics - operating pressure |
185 bar |
Operating hydraulics - discharge capacity |
33 L/min |
Filling capacities |
|
Tank capacity (fuel) |
25 L |
Engine oil |
4 L |
Hydraulic oil tank |
40 L |
Coolant |
4.3L |
Front axle |
2.5L |
Rear axle |
2.5L |
Electrical system |
|
Operating voltage |
12 V |
Battery |
45Ah |
Alternator |
60 A |
Tire |
|
Type as standard |
27×8.5-15 |
Type as option |
26*12.00-12 |
Send Inquiry to This Supplier
