Q43W-4000A High Quality Stainless Steel Cutting Mahcine to CANADA
- 30 Set / Sets per Month
- Shanghai
- T/T Credit Card
-
Omax Maxiem Pump Minor Maint 302700 Retainer Man 301873 301353 Ring Seal 303274 Major Maintenance Kit
-
Dual Port Swivels Seal Replacement Kit 308616 Package for Omax 308620-1 2 3
-
60KPSI SL-IV SL-V WK000216 05007786 Bushing Retainer Flange for KMT Water Jet Cutting
-
Waterjet Spare Parts 90K WK000190 189 20468617 20475871 Pneumatic Dump Valve
-
1-14493 UHP 90 degree 1/4 in. 94k Waterjet Repair Kit 015093-1 Swivel Rebuild Kit for Water Jet Cutt
-
Hydraulic Waste Car Body Shell Gantry Shear Machine for Scrap Recycling Center
Product Details
| Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | Wanshida |
| Model Number: | Q43W-4000A | Voltage: | 380V 220V Customized, 220V/380V/Customized | Rated Power: | 74kW |
| Dimension(L*W*H): | 5850x2200x2280mm | Weight: | 21000kg, 21000kgs | Certification: | CE & ISO9001, CE & ISO9001 |
| Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Q43W-4000A High Quality Stainless Steel Cutting Mahcine to CANADA
This horizontal metal shear is applicable for cutting the metal shaped in different cross section like round, square, channel, angle, I shape, plate and various waste structural metal at cold state. It brings convenience to the baling, storage and transportation of scrap metal materials, also offers qualified furnace charge for smelting plant. With large application range, this machine is commonly used as the processing equipment in the metal recycling unit, casting room of factory and machinery construction industry.
Technical Specification of Horizontal Scrap Container Metal Shears
Model | Q43W-4000A |
Cutting Force | 4000Kn |
Press Scrap Force | 1250Kn |
Length Of Blade | 1400Mm |
Feeding mouth size | 1500×1400mm |
Output mouth size | 1400×450mm |
Motor Power | 74kW |
Cycle Time | 2-3 times/min |
Dimensions | 5850x2200x2280mm |
Weight | 21000Kgs |
Scrap Be cutted | Size of scrap be cutted |
Round Steel | φ 110mm |
Square Steel | 100×100mm |
Angle Steel | 180×180×15mm (3pcs) |
Channel Steel | 320×90×10mm |
Steel Plate | 30×450mm |
I Steel | 320×132×11.5mm |

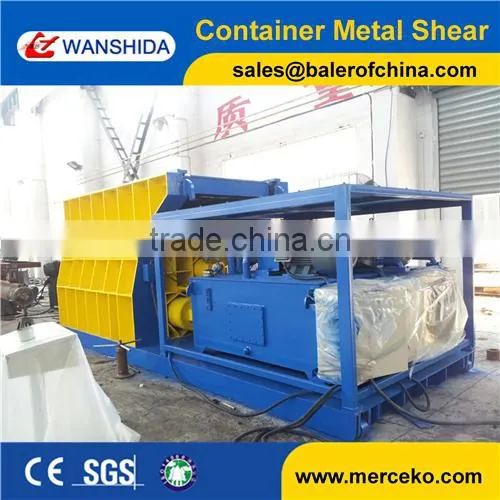

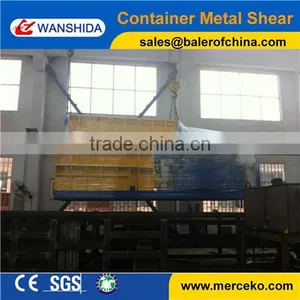

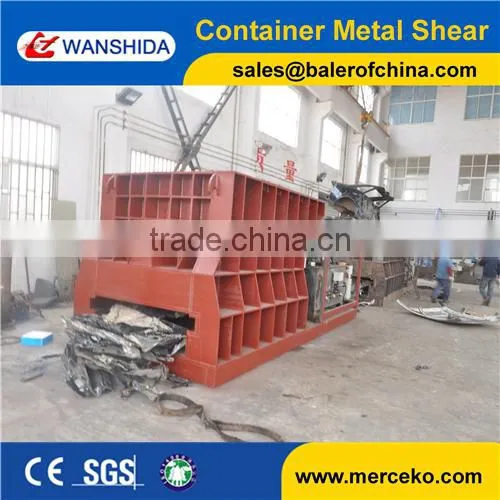

Equipments Photos Puzzle of Horizontal Scrap Container Metal Shear
| |
| |
Equipments Video Chips
Welcome visit Wanshida YOUTUBE Channel
/c/Merceko
After Sales Service
Wanshida have Ukraine, Russia, China, South Africa service company, supply the service 2 days fast.
After sales service, we have the complete spare parts supply chain by DHL, which supply spare parts to customers hand fast in 3 days from Ukraine and China
WHY WANSHIDA?
(1) Wanshida is the 20 years experience company. We have the good credit
(2) Wanshida is the CE certificated company.
(3) Wanshida have the complete production management system
(4) Wanshida supply the longest sales guarantee.
FAQ
Q1: What is the Warranty for our machines?
For all WANSHIDA china recycling machines have 12 month warranty,If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.
Q2: Are you a factory or trade company?
Wanshida is the China manufacturer, and we have our own companies in China and in Ukraine.
Q3: How can I trust your company?
A. Wanshida is the 20 years old company in China.
B. Wanshida is the SGS certificated company
C. Welcome to visit Wanshida in the fixed time.
Q4: What machines Wanshida main produce?
We mainly produce Scrap metal baler,Scrap metal shears, Metal Baler Shears, Metal Briquetting Press, Horizontal Balers, Vertical balers and Metal Shredders.
Q5: How to choose the right scrap metal baler?
When you plan to buy one metal baler,we suggest you consider 3 issues as below:
(1) How many tons scrap metal you get for processing per day
(2) The size of the stove,because you will choose the right bale size for stove
(3) Choose china made machinery parts or Europen made machienry parts
Q6:Is there cheap shipping cost to import to our country?
For small order,express will be best.And for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Q7: Is your price competitive?
Wanshida supply the EU quality machines but comes with China price.
