Specifications
Corn forage harvester1.Crush the straw and collect it for animal
2.Easy to operate
3.ISO Cert
4.Factory direct sell

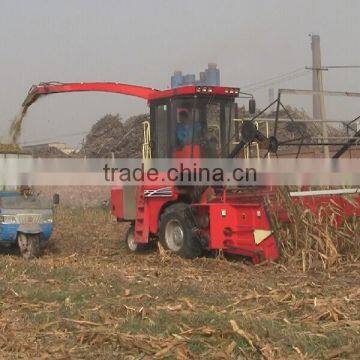

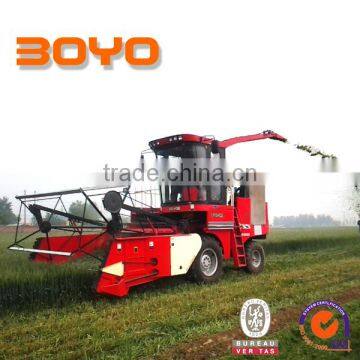

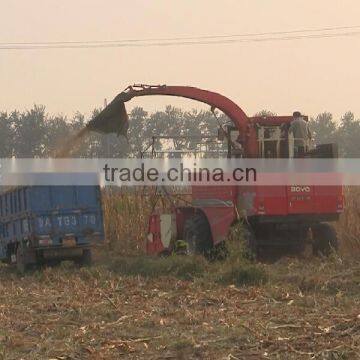

4QZ-2800 Corn forage harvester
1. It is used to harvest stalks of corns, oats, etc. to store as silage.
2. It realizes non-row harvesting.
3. It’s mainly composed of header, feeding device, throwing device, engine, underpan, driving room, hydraulic system, electric system, etc.
4. It can completes harvesting, cutting and smashing, curlating, throwing and loading continuously during one operation.
5. It adopts high-speed diesel engine of direct injection combustion chamber. Its PTO is 220hp (260hp is optional)
6. Technical parameter:
Item |
Unit |
Technical Specifications |
Overall dimension(L*W*H) |
mm |
6800x3300x3800 6800x3500x3800 |
Working width |
mm |
2800/3000 |
Whole weight |
kg |
7895 |
Working speed |
Km/h |
≤5 |
Stubble height |
mm |
≤150 |
Cut length of straw |
mm |
10~35 |
Feeding roller quantity |
pc |
8 |
Diameter of cut roller |
mm |
635 |
Rotation speed of cut roller |
R/min |
782 |
Knife type of cut roller |
/ |
Flat knife |
Throw distance (max) |
m |
12 |
throw tub Scop of turn round |
/ |
270degree |
Height of throw |
m |
4.5 |
Motor |
/ |
NC6110ZLN2L/6CTA8.3-C260 |
Motor power |
Kw/hp |
160/190 or 220/260 |
Motor output rotation speed |
r/min |
2200 |
Wheel base(front) |
mm |
2410 |
Wheel base (rear) |
mm |
1600/1745-1945 |
Axle base |
mm |
2400 |
I gear |
Km/h |
1.21-3.26 |
II gear |
Km/h |
3.02-8.15 |
III gear |
Km/h |
7.9-19.32 |
Reverse gear |
Km/h |
2.93-8.72 |
HEBEI SINO-AGRI BOYO AGRICULTURAL EQUIPMENT CO., LTD
Hebei Sino-agri BOYO Agricultural Equipment Co., Ltd (hereinafter referred to as BOYO) is a modern large agricultural enterprise who is engaged in reseaching and developing, manufacturing, selling and servicing agricultural equipment since 1991. Its register capital is RMB 50 million. The main products includes: Self-propelled combine corn harvester of 2 rows (3 rows / 4 rows / 5 rows), Self-propelled combine corn grain harvester of 6 rows, Silage harvester, Subsoiler machine, Round baler, and so on.
The new base of BOYO is located in ecnomic and technological development zone of Shijiazhuang. Owning modern assembly lines, electrophoretic coating lines of international level,
its annual production capacity is 30 thousand agricultural machinery. It is the largest agricultural machinery R&D and manufacturing base in Hebei province.
Welcome you to contact and visit BOYO!
Pre-sale service
Quick response to customers' inquiry or online message
Guide customers to choose the best suitable machine model, offer detailed specification and competitive prices
Contract execution
Machine production will be arranged strictly according to the contract
Machine photos will be sent to you for reference and inspection during production
Machines will be strictly inspected and tested before delivery
Strong enough packages to prevent possible damages during shipping
Send customs clearance documents by DHL
Keep customers to be informed of vessel location while shipping and get them prepared for customs clearance work
After-sale service
12 months warranty except for wear parts
Spare parts (except for wear parts) will be sent for free due to quality problems
Timely response to customers technical problems
New products update for customers' reference
