Wheat and Rice Harvester 4LZ-3

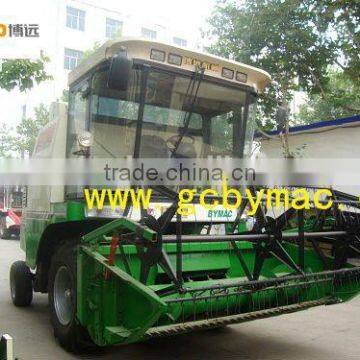

Wheat and Rice Harvester 4LZ-3 photo-1

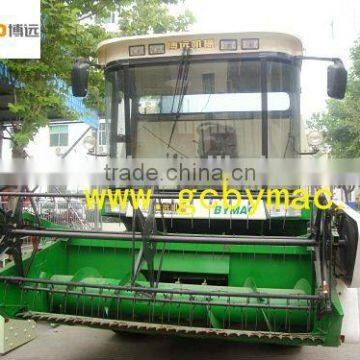

Wheat and Rice Harvester 4LZ-3 photo-2

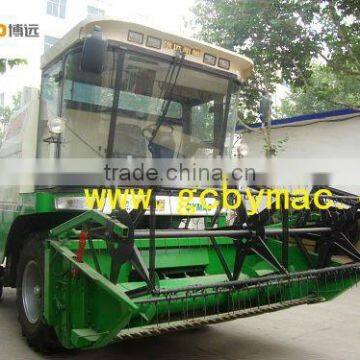

Wheat and Rice Harvester 4LZ-3 photo-3
Wheat and Rice Harvester 4LZ-3 photo-4
Wheat and Rice Harvester 4LZ-3 photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Combine Harvester
Drive Type:
Gear Drive
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Combine Harvester
Drive Type Gear Drive
Usage Grain Harvester
Place of Origin Hebei, China
After-sales Service Provided Engineers available to service machinery overseas

1.Model: 4LZ-3

2.Function:

The machine can harvester wheat and rice ,threshing the  grain directly ,cutting and smashing the straw then return it  to the field at the same time ,when the barn is full it can unload to the bag  auto

3.Feature:

-Self-propelled machine, hydraulic stepless speed adjustment

-Spring tooth, hydraulic control lifting, good suitability for lodging crop.



-Optimized bridge, the driver can get more exact position of crops and feed will be more equally

-Compact structure, advantages of agility, lower loss and impurities.

-Equipped with reversing radar, improve the driving safety

4.Main tech data:



Item

Unit

4LZ-3

Power model



QC4115

Working width

mm

2360

High of crops

mm

500-1000

Dimension(L*W*H)

mm

6600×2730×3350

Rated power

Kw

73.5

Rated speed of rotation

r/min

2200

The lowest gap to the ground

mm

335

Weight

kg

4620

Working efficiency

hm²/h

0.3-0.4

Feed in speed

Kg/s

3

Oil consumption

kg/m²

≤30

Volume of barn

M³

1.8

Type of cut



II

Type of screw feeder



flex

Diameter of screw feeder

mm

500

Type of action reel



Eccentric elastic tooth

Diameter of action reel

mm

1000

Thresh roller length

mm

1445

Thresh roller diameter

mm

550

cleaning



Air screen

Wheel base( rear)

mm

1640

Wheel base( front)

mm

1700

Axles base

mm

2800

Diameter of turn

mm

6500

Oil volume

L

234
