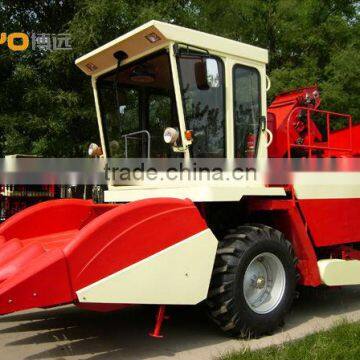

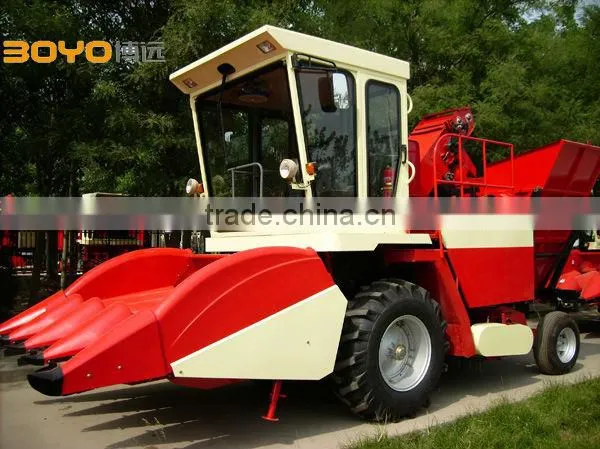

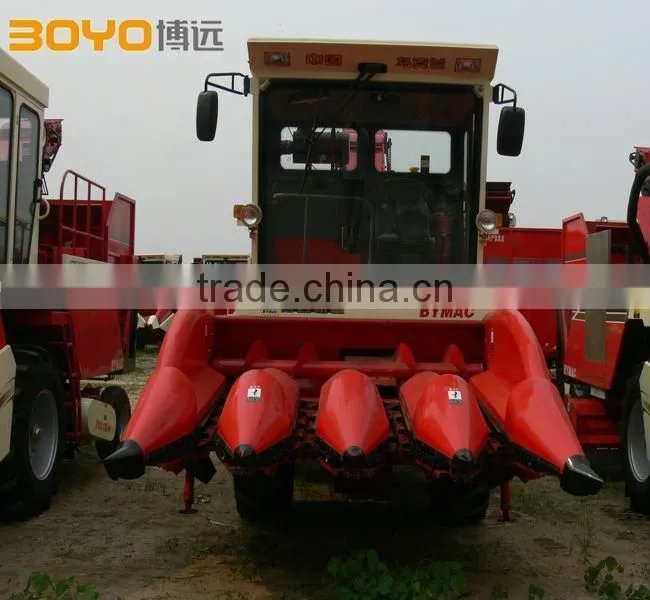

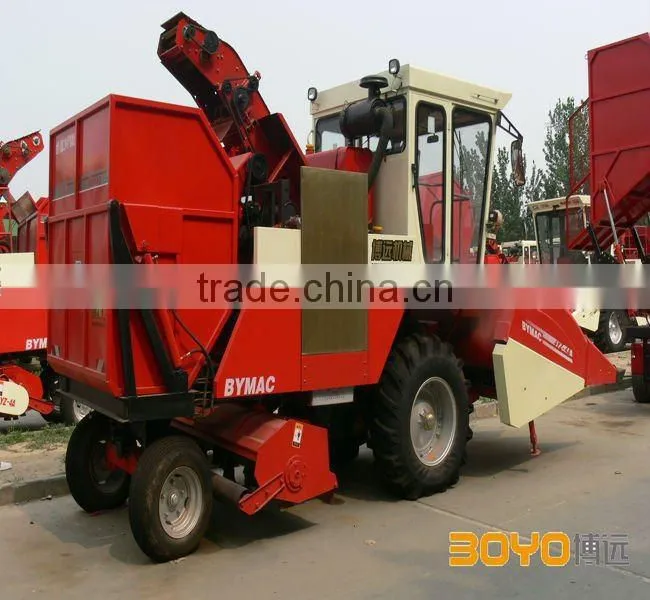

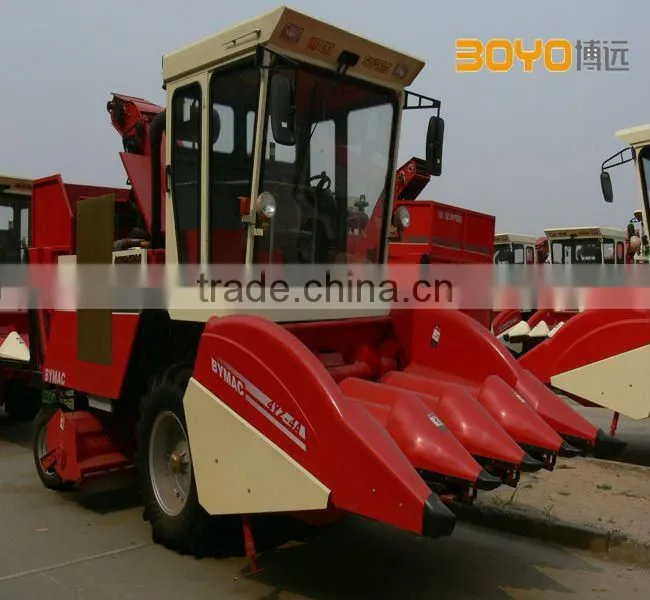

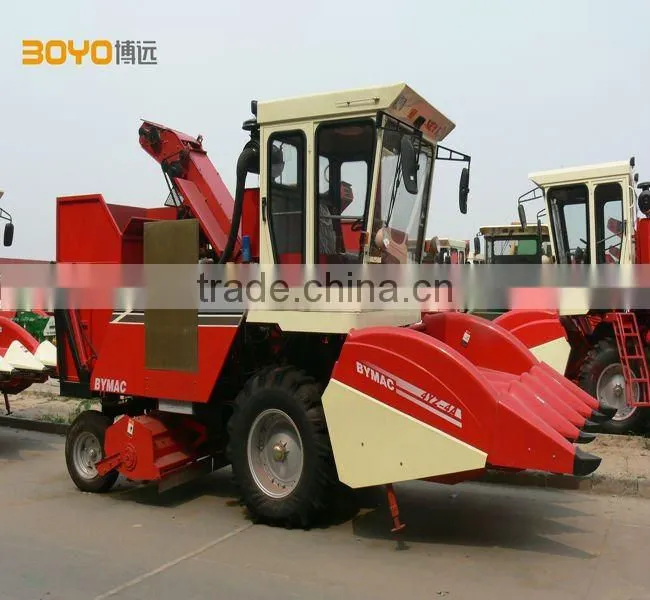

4YZ-4A maize harvester:
1. 4YZ-4A Small-interval corner harvester is to attach newly developed small-interval headers to 4YZ-3 machine body. The main feature is the design of small interval of headers, 520mm reaping interval can meet the conditions of use for most of inland area with corn growing interval of 450-550mm. The harvester reaps front to front, which can raise working efficiency and harvesting result greatly. It can complete the operation of corn picking, corn collection into box and straw crushing and returning to field at the same time.
2. The standing straw poking chain of headers adopts automatically tightening spring, thus it is free from adjustment and easy to use.
3. Corn picking plate adopts underlying structure to effectively reduce stem breaking rate when corns are picked by headers.
4. Mid crusher adopts self-grinding sharp blades to achieve ideal result of crushing and returning straws to fields.
5. Specially developed chassis is proved durable after years of use.
Item |
Unit |
4YZ-4A |
Working rows |
rows |
4 |
Working width |
mm |
2340 |
Header row space |
mm |
530 |
Dimension(L*W*H) |
mm |
6970×2350×3350 |
Rated power |
Kw/Hp |
92/125 |
Weight |
kg |
5600 |
Working efficiency |
Hm2/h |
0.3-0.6 |
Working speed |
Km/h |
3-5 |
Oil consumption |
kg/m2 |
≤30 |
Volume of barn |
M3 |
2.5 |
High of loading |
Mm |
1900(side loading) |
Frequently asked question (FAQ)
1. What is your minimum order quantity (MOQ)?
Our MOQ is 1 piece.
2. Where is your factory located? How can I visit there?
Our factory is located in Shijiazhuang Economic and technology development zone,
If you arrived Shijiazhuang we will pick you up.
3. How does your factory do regarding quality control?
We have our professional quality check team.
4. What are the payment Items?
Normally we accept the payment T/T, Western Union and L/C etc..
The advantage you must to choice us
1. Advantage of price: as the manufacturer of corn harvester, it is directly export to you not through trade company ,the price is competitive
2. Advantage of technology, we have professional and technical personnel and worker of skilled technology, since 1994 to produced corn harvester more than 20years researching
3. Advantage of products, all models with CE,TUV,ISO9001-2008;ISO14001- 2004 OR other authority approved, more than forty patent certificate was gained
4. Advantage of test, each process or even every parts has been a professional quality inspection, when assembly a whole machine we need to test turn more than 60hours.
5. Advantage of marketing team and service, we will according to your request recommend the suit harvester to you, and supply the service to you any time
