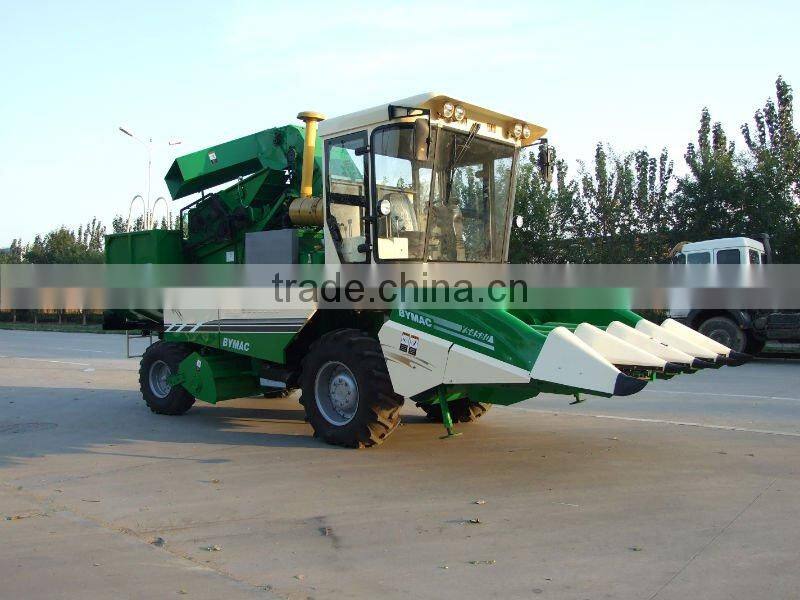

4YZ-4 corn harvester
1. Adjustable semi-closed plate design is applied to engine part, insulated asbestos material is wrapped for supercharger, so as to effectively prevent straw fragments from wrapping the engine body during operation which may result in fire accident due to engine overheat. Heat radiating water tank is equipped with double-layer filter screen to significantly improved heat radiating result.
2. Double fans are equipped to clean trash. The big fan is used to discharge stems and fragments carried by the elevator, the underlying small fan is used to specially blow corn leaves discharged by the vibration sieve. Thus trash discharging speed is raised and total working efficiency is improved.
3. New type header with Ukraine technology is adopted. Reel chain is arranged in triangle shape, which can reduce the amount of broken stems and make the feeding more smoothly. Chain wheel is processed by striking and forging, to make it anti-abrasive and with long service life. Thickening type steel protection hood is equipped and complete set of lodged corn reaping protection hood is complimentary, so that both standing and lodged corns can be reaped.
4. Adjustable header feeds into screw feeder, so that corn damage rate is lower and agricultural accommodation is wider.
5. Trash baffle is added before barker bracket, corn leaves passage is formed under engine protection hood, and special small fan is installed to blow trash. Thus trash is cleaned without delay.
6. The barker adopts five units of peeling-off mechanism, rotating speed is raised to 600rpm and total working efficiency is improved.
7. Separation plate is added at the top of elevator. Its combination with the corn distributor of the barker makes the distribution of corns more even, the working efficiency of peeling-off operation better and operation speed is raised.
Item |
Unit |
4YZ-4 |
Working rows |
rows |
4 |
Working width |
mm |
2600 |
Header row space |
mm |
650 |
Dimension(L*W*H) |
mm |
9300×3050×3800 |
Rated power |
Kw/Hp |
117/159 |
Weight |
kg |
9200 |
Working efficiency |
Hm2/h |
0.5-1 |
Working speed |
Km/h |
3-5 |
Oil consumption |
kg/m2 |
11-30 |
Volume of barn |
L |
4300 |
High of loading |
Mm |
2100(side loading) |
Frequently asked question (FAQ)
1. What is your minimum order quantity (MOQ)?
Our MOQ is 1 piece.
2. Where is your factory located? How can I visit there?
Our factory is located in Shijiazhuang Economic and technology development zone,
If you arrived Shijiazhuang we will pick you up.
3. How does your factory do regarding quality control?
We have our professional quality check team.
4. What are the payment Items?
Normally we accept the payment T/T, Western Union and L/C etc..
The advantage you must to choice us
1. Advantage of price: as the manufacturer of corn harvester, it is directly export to you not through trade company ,the price is competitive
2. Advantage of technology, we have professional and technical personnel and worker of skilled technology, since 1994 to produced corn harvester more than 20years researching
3. Advantage of products, all models with CE,TUV,ISO9001-2008;ISO14001- 2004 OR other authority approved, more than forty patent certificate was gained
4. Advantage of test, each process or even every parts has been a professional quality inspection, when assembly a whole machine we need to test turn more than 60hours.
5. Advantage of marketing team and service, we will according to your request recommend the suit harvester to you, and supply the service to you any time
