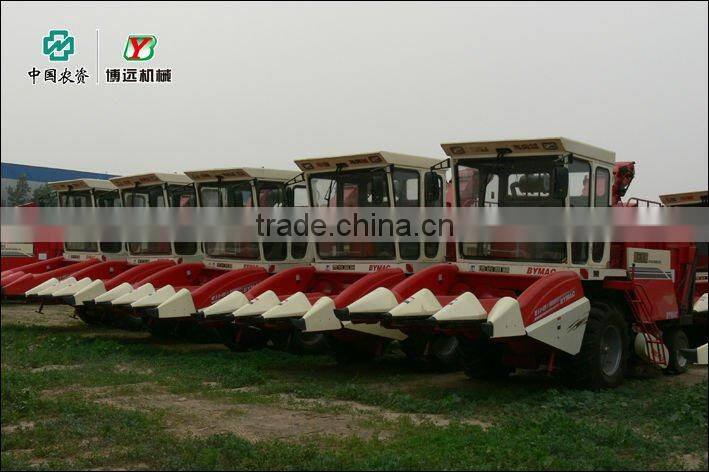

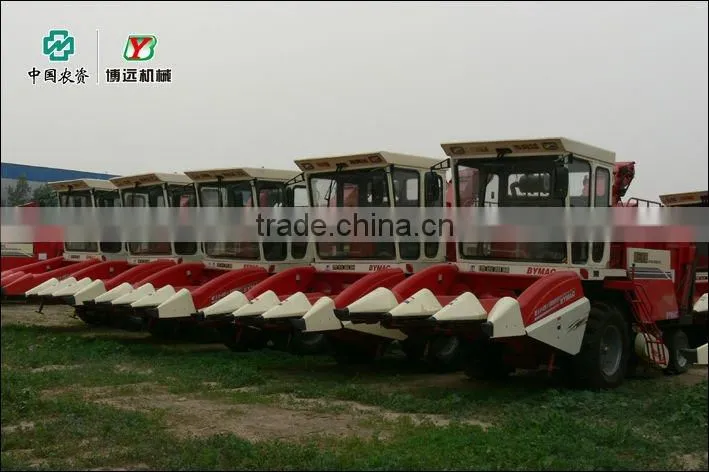

combine harvester
1. European technology is introduced and improved to manufacture corn header. New type stem drawing roller and striping device is adopted. Chain wheel is processed by striking and forging to make it anti-abrasive, reliable, mature, economical and with long service life.
2. Corn headers adopt specialized glass fiber protecting hood, which is corrosion-resistant, with low noise and non-deforming.
3. Double motor driving is adopted, power output is harmonious and strong.
4,Specially developed chassis is proved durable after years of use.
5. Machine structure is reasonable and compact, turning is convenient and flexible when operating in field, suitable for operating in small field plots. Large granary silo of 2.5m3 effectively reduces machine ancillary time and improves total working efficiency.
Model |
4YZ-3 |
4YZ-3B (peeling-off) |
harvest row number (rows) |
3 |
3 |
header interval (mm) |
600 |
600 |
working width (mm) |
2100 |
2100 |
adaptive interval (mm) |
400-800 |
400-800 |
front/rear wheel track(mm) |
1640 |
1640 |
front/rear wheel base(mm) |
2850 |
2850 |
Dimensions LxWxH(mm) |
6400*2150*3350 |
7600*2150*3550 |
driving force |
YC48110Z-T10 |
LR4A3L-H96 |
rated power (kw/HP) |
83/113 |
90/123 |
rated rotate speed (rpm) |
2400 |
2400 |
total weight (kg) |
4850 |
5800 |
working performance (acre/h) |
0.833 – 2 |
0.833 – 2 |
optional equipments |
standard straw swathing type standard silage recycling type |
|
Frequently asked question (FAQ)
1. What is your minimum order quantity (MOQ)?
Our MOQ is 1 piece.
2. Where is your factory located? How can I visit there?
Our factory is located in Shijiazhuang Economic and technology development zone,
If you arrived Shijiazhuang we will pick you up.
3. How does your factory do regarding quality control?
We have our professional quality check team.
4. What are the payment Items?
Normally we accept the payment T/T, Western Union and L/C etc..
The advantage you must to choice us
1. Advantage of price: as the manufacturer of corn harvester, it is directly export to you not through trade company ,the price is competitive
2. Advantage of technology, we have professional and technical personnel and worker of skilled technology, since 1994 to produced corn harvester more than 20years researching
3. Advantage of products, all models with CE,TUV,ISO9001-2008;ISO14001- 2004 OR other authority approved, more than forty patent certificate was gained
4. Advantage of test, each process or even every parts has been a professional quality inspection, when assembly a whole machine we need to test turn more than 60hours.
5. Advantage of marketing team and service, we will according to your request recommend the suit harvester to you, and supply the service to you any time
