Product Application

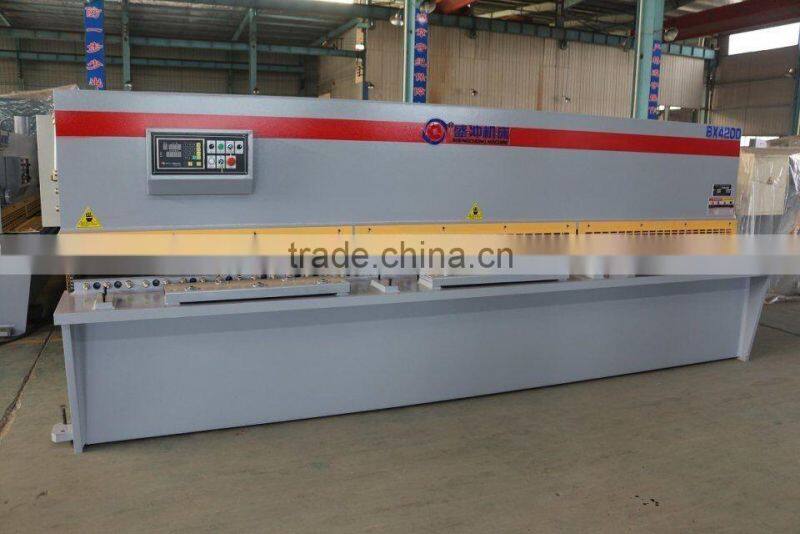

Hydraulic shearing and cutting machine for QC12Y series
Performance and Feature
1. Rack, blade frame is entire welded,vibration to eliminate inner stress,to maintain good accuracy.
2. Use advanced integrate hydraulic system and good reliability.
3. Use three-point support rolling guide to eliminate the support gap,improve cut quality.

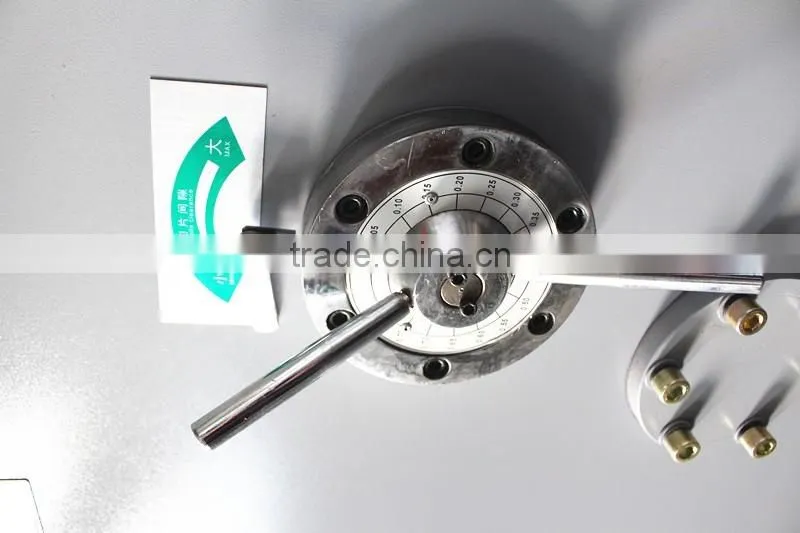

4. The clearance between the blades adjusted by hand wheel rapidly,accurant and convenient.
5. Adjustable shearing angle to reduce deformation of the sheet.
6. The upper blade frame use introversion structure,easy for blanking to improve the accuracy of production.
7. With the sub-shear function, motorized backgauge,digital display.
Youtube Video Links
https://youtu.be/Qnug3HsJh0Y
1. Hydraulic system
1.Adopt integrated hydraulic control system, more reliable and easy for maintenance.
2.All seals in cylinder is imported,the most famous brand,good quality and high performance
3.Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly
2. Control system
1.The parallelism of the sheet to be cut off and the precision of the shear size can be ensured. The cut stroke and cut times also can be controlled.
2.The cutting times of this machining tool is displayed on a MD11-1 NC or Estun E10 NC and accurately show the cut after the block size and number display.
3.Light alignment device eases drawing line for cutting, Standard front support sheet frame, A set of standard blades
3. Advanced procedures
1.Holland Delem DAC350, DAC360, DAC310 or Estun E200 cnc controller automatically controls the backgauge, cutting stroke, cutting angle and the blades gap together the numbers of workpieces accurately.
2.European key electrics and Hydraulic Valves Advanced integral hydraulic system are good reliablity-Imported from Germany.

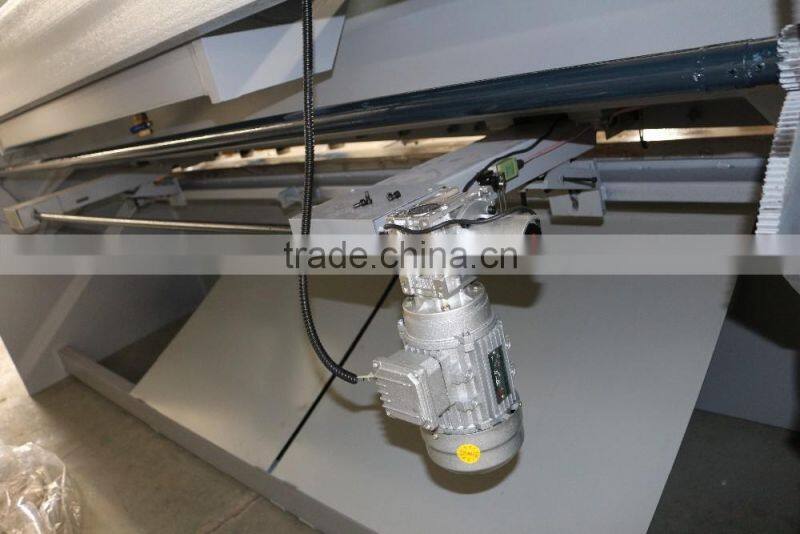

3.X axis back gauge clearance are controlled by E10s which ensures a higher cutting accuracy, Backgauge with Optional ball screw and line guide rail,, maximum stroke of backgauge can realize 1000mm.
4.Electrical system and the safety interlock
1.Electrical components are imported or from Sino-foreign joint Venture,in accordance with international standards.
2.Emergency stops on machine and foot switch for safety and fence like body guard is standard and light curtain is optional.
3.Protective fence and the safety interlock to ensure the operation safety. Hold a movable single-hand pedal switch,easy to operate.
Why do you choose us?
1. Accomplishment
Nanjing Harsle Machine Tool Co.,Ltd. boasts the excellent technician team to design and serve our customers. We have successfully served many domestic and overseas customers in the past several years.
2.Innovation
Our team hold the strong designing capability, adopt the international management mode and address the new solutions for different requirements.
3.High quality
Plenty of machinery parts are imported from famous factory in the world, such as Siemens ; DELEME ; CYBELEC and etc.
4.Competitive price
Our bending machines with competitive price are appropriate for you in terms of the advanced technology.
5. Welcome
Whenever you come to visit our factory, you can see many hydraulic press breaks in our factory. Wait for your contact.
