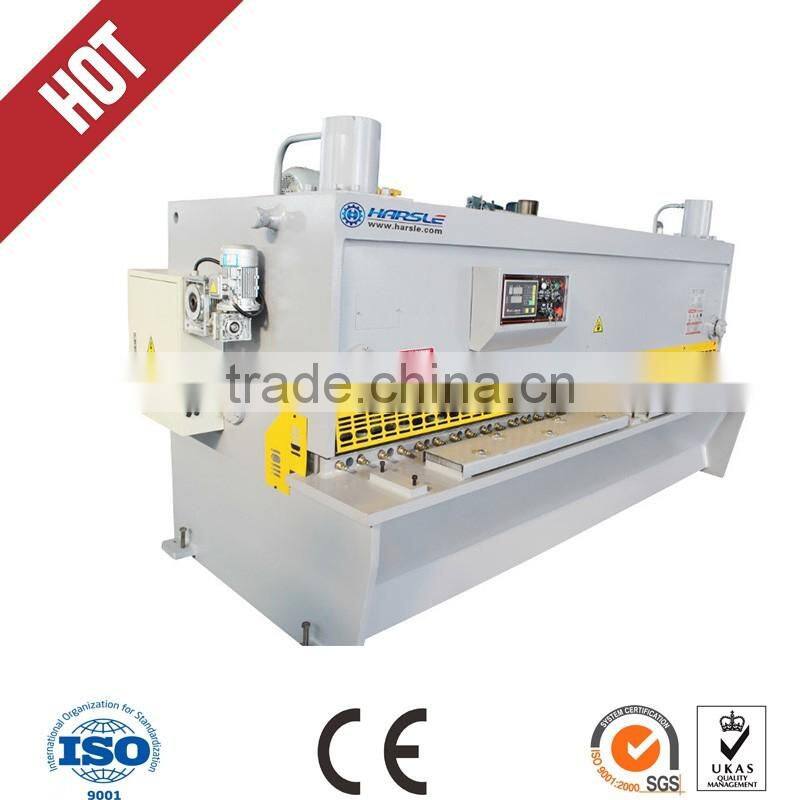

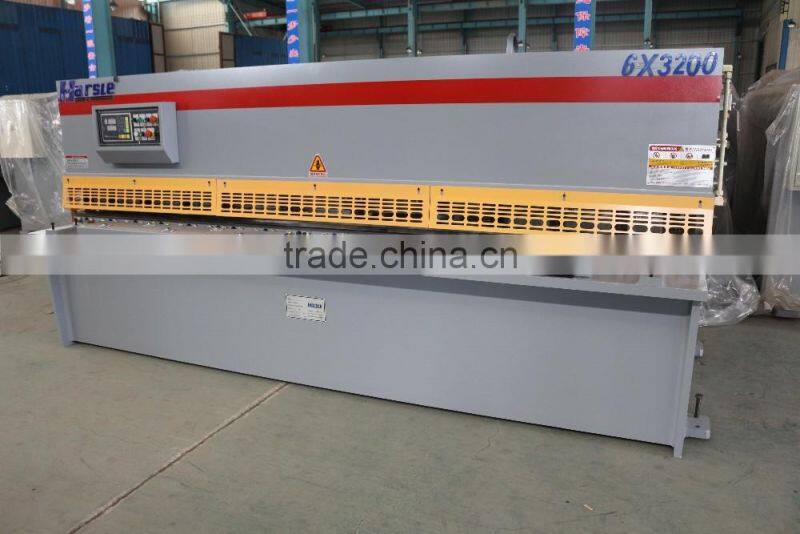

Sheet Plate Hydraulic Metal Cutter With High Efficiency Fast Delivery

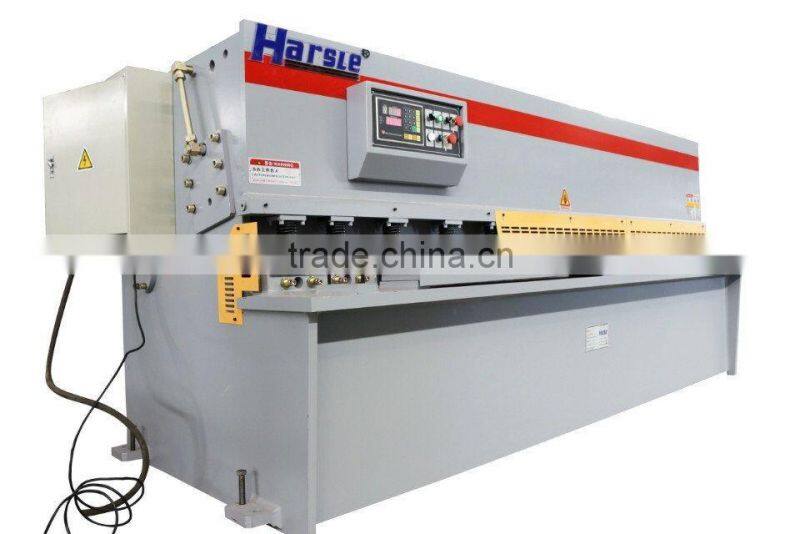

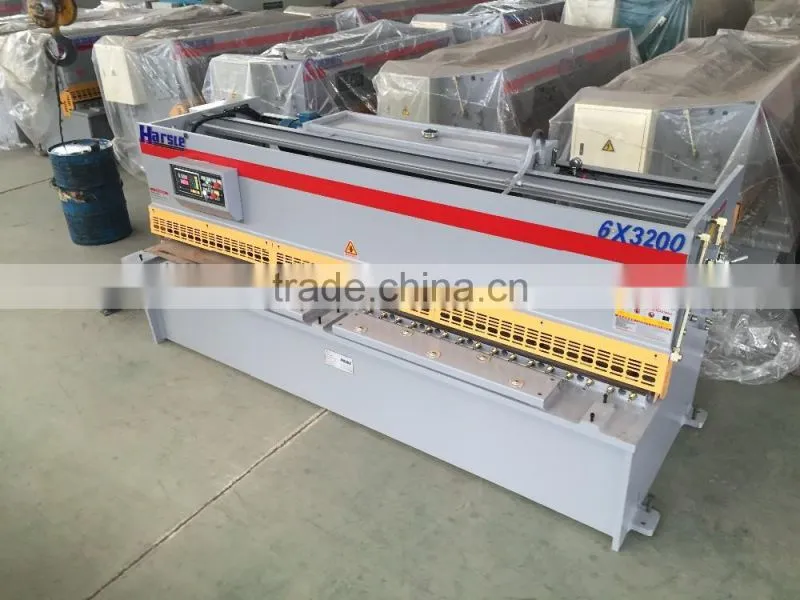

Hydraulic shearing and cutting machine for QC12Y series

Performance and Feature
1. Rack, blade frame is entire welded,vibration to eliminate inner stress,to maintain good accuracy.
2. Use advanced integrate hydraulic system and good reliability.
3. Use three-point support rolling guide to eliminate the support gap,improve cut quality.

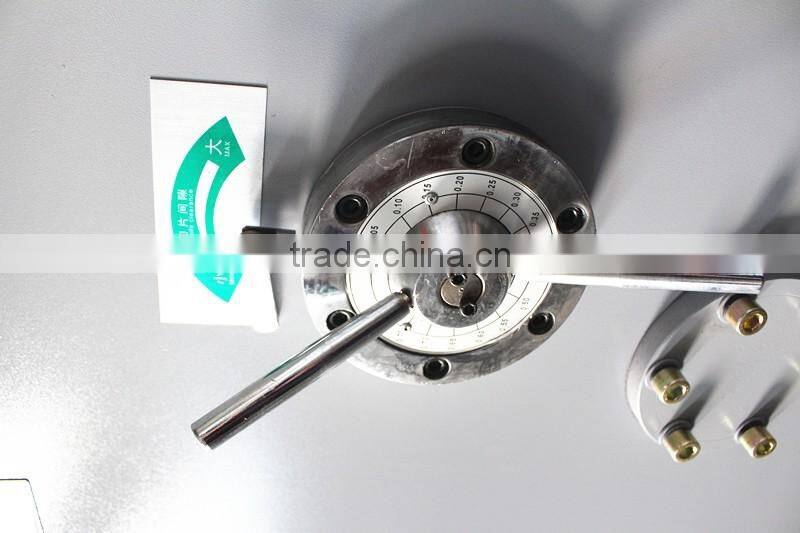

4. The clearance between the blades adjusted by hand wheel rapidly,accurant and convenient.
5. Adjustable shearing angle to reduce deformation of the sheet.
6. The upper blade frame use introversion structure,easy for blanking to improve the accuracy of production.

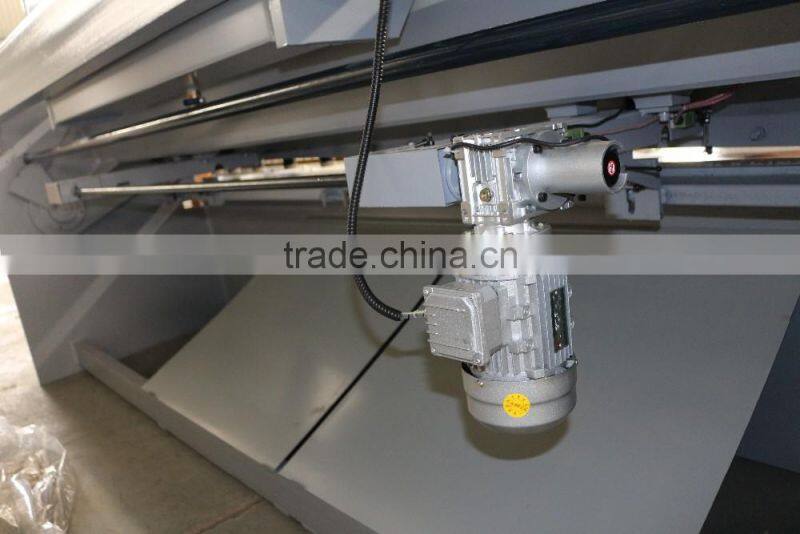

7. With the sub-shear function, motorized backgauge,digital display.

Youtube Video Links
https://youtu.be/Qnug3HsJh0Y

1. Hydraulic system

1.Adopt integrated hydraulic control system, more reliable and easy for maintenance.
2.All seals in cylinder is imported,the most famous brand,good quality and high performance
3.Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly

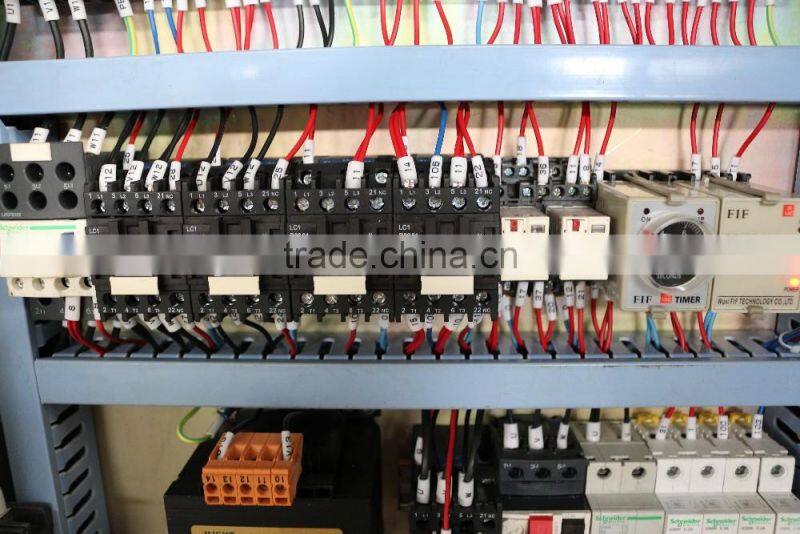

2. Control system

1.The parallelism of the sheet to be cut off and the precision of the shear size can be ensured. The cut stroke and cut times also can be controlled.
2.The cutting times of this machining tool is displayed on a MD11-1 NC or Estun E10 NC and accurately show the cut after the block size and number display.

3.Light alignment device eases drawing line for cutting, Standard front support sheet frame, A set of standard blades

3.Electrical system and the safety interlock
