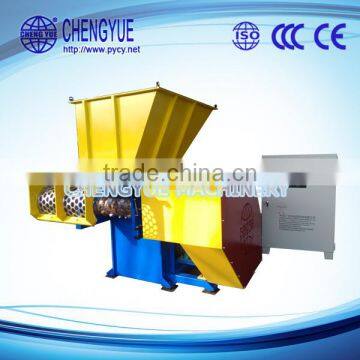

Solid Plastic Rubber Waste Paper Shredder Industry Wood Shredder
- Guangzhou/Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | |||
| Brand Name | Chengyue | Model Number | S-600 | |
| Use | Waste Plastic Crusher | Plastic Type | ABS | |
| Shaft Design | Single | Power | 1.5KW | |
| Capacity | 600kg/h | Voltage | under the customers' requirements | |
| Power(W) | 18.5KW | Dimension(L*W*H) | 1800*1360*1500 | |
| Weight | 1800kg | Certification | CE&ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

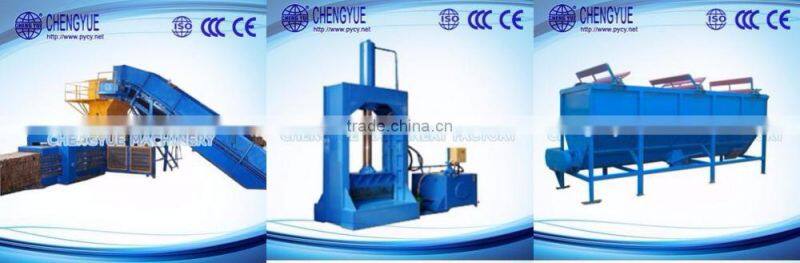

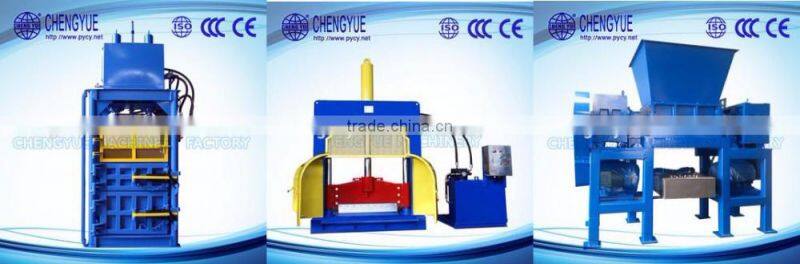

We are a professional recycling machine manufacturer for 19 years. Main product: Automatic/Semiautomatic baler, Vertical Baler, Horizontal Baler, Crusher, Single and double shaft shredder, Rubber cutter, Plastic Washing recycling line, etc. Welcome to visit our company.
Address: No.1111, Shiliang Road, Shawan Town, Panyu District, Guangzhou, China

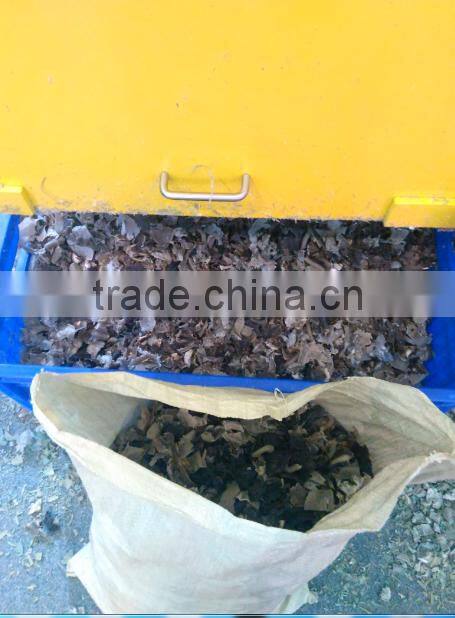

It is widely applicable to shred solid materials which are hard to shred, like plastic, rubber, fiber, hardboard, wood, electronic components, cable and so on. If you need the machine to shred ultra hard plastic such as nylon, ABS and PC, please mark your detailed specification to us.
Technical parameters:
Model / Item | S-600 I | S-600 II | S-800 I | S-800 II |
A(mm) | 1800 | 2500 | 2500 | 2850 |
B(mm) | 1360 | 1500 | 1700 | 1750 |
C(mm) | 810 | 1300 | 1300 | 1400 |
D(mm) | 600 | 680 | 880 | 800 |
E(mm) | 380 | 500 | 500 | 500 |
H(mm) | 1600 | 1700 | 1700 | 1900 |
Oil cylinder stroke(mm) | 500 | 750 | 750 | 900 |

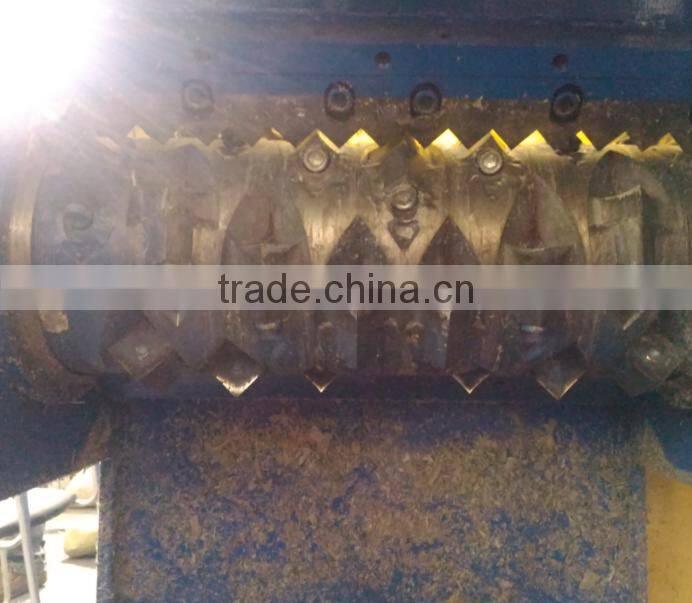

Rotor diameter(mm) | Φ224.7 | Φ300 | Φ300 | Φ400 |
Spindle speed(r/min) | 84.7 | 83.7 | 83.7 | 73.7 |
Mesh size(mm) | Φ25(optional) | Φ40(optional) | Φ40(optional) | Φ40(optional) |
Rotational blade(pcs) | 28+4 | 26+4 | 42+4 | 42+4 |
Fixed blade(pcs) | 2 | 4 | 4 | 2 |
Motor(kw) | 18.5 | 22 | 30 | 37 |
Hydraulic motor(kw) | 1.5 | 1.5 | 1.5 | 1.5 |
Weight(kg) | 1400 | 1550 | 1950 | 13500 |
Model / Item | S-1000 | S-1200 | S-1500 | S-4000 |
A(mm) | 2850 | 2850 | 3300 | 4100 |
B(mm) | 2000 | 2600 | 2900 | 6800 |
C(mm) | 1400 | 1400 | 1450 | 1550 |
D(mm) | 1000 | 1200 | 1500 | 4000 |
E(mm) | 500 | 500 | 930 | 1000 |
H(mm) | 1900 | 1900 | 2750 | 3000 |
Oil cylinder stroke(mm) | 850 | 900 | 950 | 1200 |
Rotor diameter(mm) | Φ400 | Φ400 | Φ468.8 | Φ660 |
Spindle speed(r/min) | 73.7 | 73.7 | 83.3 | 75 |
Mesh size(mm) | Φ40(optional) | Φ40(optional) | Φ40(optional) | Φ40(optional) |
Rotational blade(pcs) | 54+4 | 66+4 | 129 | 363 |
Fixed blade(pcs) | 2 | 4 | 6 | 8 |
Motor(kw) | 45 | 55 | 90 | 132+132/220+220 |
Hydraulic motor(kw) | 1.5 | 2.2 | 5.5 | 7.5 |
Weight(kg) | 4000 | 5000 | 8000 | 17500 |
Remark: all the parameters above are only for your reference.
Features:
- It's applicable to shred solid materials which are hard to shred, like plastic, rubber, fiber, hardboard, wood, electronic components, cable and so on.
- Low energy consumption and noise.
- Easy to operation.
Applications:
Construction:

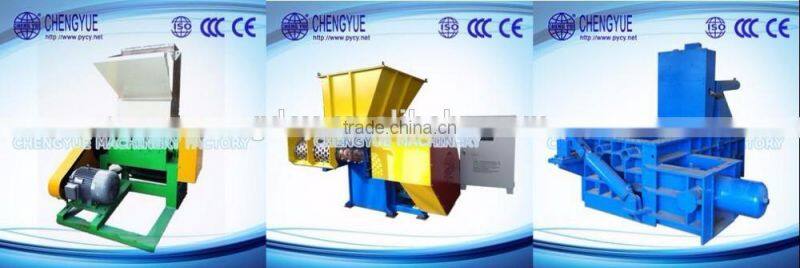

Related product
Our service :
l Any inquiries will be replied within 24 hours
l Professional manufacturer
l Welcome to visit our website: /
l OEM/ODM avaliable
Guarantee And After-sale Sevice
l One year guarantee for whole machine
l 24 hours technical support by e-mail
l Calling or door-to door service
l Use-friendly English software,user manual and detailed Videos/CD
Paking:
l Outside package:Sandard export wooden cases
l Inner package:Stretch film
Shiping:
l Safe, fast, warm
l You can also choose your own shipping forwarder
Q1: Are you a factory or trading company?
A1: we are a factory with 19 years experience.
Q2: How can I get a quotation?
A2: Pls tell us the machine you need, including quantity, raw materials and other requirements.
Q3: After I buy the machine, what will you do if I don’t know some of the function?
A3: We will show you how to use the machine perfectly. Technical support and the video is available.
Q4: What can I do if the machine troubled after I buy it?
A4: We provide completely after sales service, and our engineers are avaliable to service machinery overseas.
Q5: Will you show me how to install the machine?
A5: Certainlly, we will enclose the production specification with the machine, and we could provide the video online to you.
Payment:
30% of total amount should be paid in advance, and the balance before delivery.
Certificate:
Welcome to our factory
Contact information
Mobile: +86 13922261809 (whatsapp/Line)
Skype:aimee.hu5
Wechat:1418745090
Thanks for your reading!
