BYB-150T Horizontal waste carton press machine, waste carton press machine
- 10 Set / Sets per Month
- Huangpu port Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
- complete set of pelletizer flue gas treating machine
- one-stop pelletizer flue gas treating machine
- Best performance pelletizer flue gas treating machine
- stainless steel pelletizer flue gas treating machine
- Portable pelletizer flue gas treating machine
- complete set of organic waste processing equipment
Product Details
Condition: | New | Application: | plastic recycle | Automatic Grade: | Semi-Automatic |
Production Capacity: | 37kw | Place of Origin: | Guangdong, China | Brand Name: | Chengyue |
Model Number: | BYB-150T | Voltage: | 380V, 50Hz | Power(W): | 37kw |
Dimension(L*W*H): | 7200*3020*2000mm | Weight: | 14000kg | Certification: | ISO |
Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
BYB-150T Horizontal waste carton press machine, waste carton press machine
BYB-150T Horizontal waste carton press machine, waste carton press machine
uses hydraulic loop system and could choose manual or PLC automatic controller operation. It’s suitable for baling the incompact materials , especially used plastic, pet bottles and waste cutton, hay, wheat straw, rice straw, used clothing and so on to recycle.
Main technical parameters:
1. Input & output
Raw material: plastic, paper, carton, PET bottle, cardboard, etc

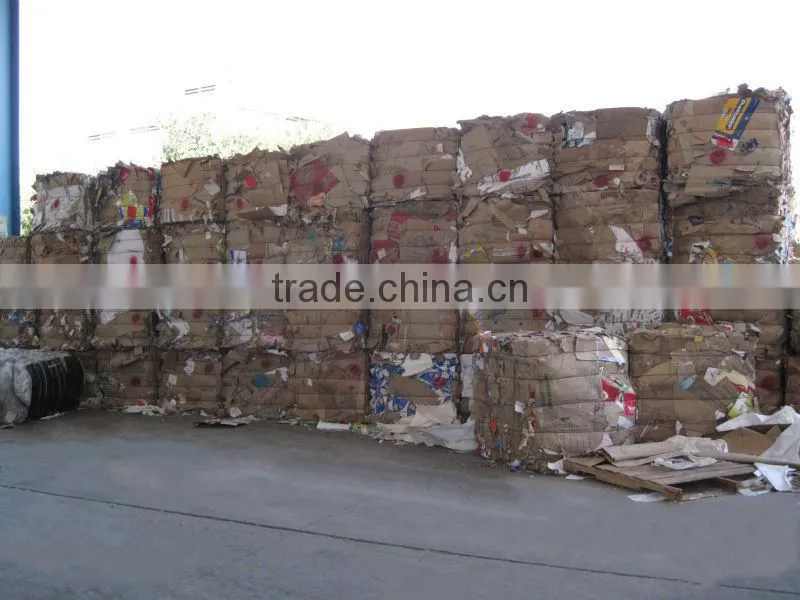

Completed product: plastic bale, paper bale, carton bale, PET bottle bale
Output capacity: 3-4bale/hr.
2. Energy consumption:
Electricity consumption:
Main power:37kw
Conveyor power:7.5kw
Cooling system:1.5kw
Qty. of labors: 1-2 persons
3. Basic Infrastructure
3.1 Electricity supply: 380V/50H,200V/50HZ,440V/60Hz,220V/60HZ(option)
3.2 one part of the conveyor(3.5meter long) need to put in the group(about 1.2meter deep)
3.3 Necessary lifting plants for loading and unloading machines during install nation and testing
Configuration:
Model | BYB-150T |
Baler size | (700-1500)*1100*830mm |
work pressure | 150Ton |
bale weight | about 450kg-500kg |
main power | 37kw |
conveyor power | 7.5kw |
overall dimension | 7200*3020*2000mm |
total weight | 14000kg+5000kg(conveyor) |
electric panel | Japanese appliance |
conveyor | compose by iron plate |
size | 3.5meter in the ground |
oil tank capacity | 1530kg(68# hydraulic oil) |
cooling system | air cooling |
Remark: all the parameters above are only for your reference.
Characteristic feature:
- Waste plastic recycling machine uses hydraulic loop system and could choose manual or PLC automatic controller operation.
- The max oil pressure is 21Mpa(210kg/cm2).
- The ground to placed the machine should be smooth.
- Active cutter(V style SKD-11 durable steel cutter).
- The dimension of feeding hooper and bale can be designed according to customers’ requirement.
- BYB-150T Horizontal waste carton press machine, waste carton press machine is applicable for used plastic recycle, and it's also can be used in recycling waste paper, cardboard, cartons, aluminum, etc.
Payment:
30% of total amount should be paid in advance, and the balance before delivery.
On-sales service:
- Your inquiry will be replied within 24 hours.
- Any questions, you could email us or call directly.
- 24 hours technical support by e-mail.
Guarantee and after-sales services:
One year guarantee period.
During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide them at cost price.
APB-250T fully automatic baler | BYB-150T semi-auto bale press machine | ZYB automatic waste recycling plant | BYB semi-auto reccling machine for pet bottles |
HB-200R metal baler | HB automatic or manual scarp metal baling machine | VB vertical waste baling machine | TB tub-type used clothes baling press machine |
Packaging:
- We formally use film outside, then packed in the containers.
- If customers require the wooden case, we also could packed as you like.
- If you have any other special requirement, please contact our service for futher discussion.
Shipping:
The machines will be shipped within 25 days after payment.
Why choose Chengyue?
Guangzhou Chengyue Machinery Co., Ltd is the leading manufacturer of recycling machines since 1995 with the advanced technology and excellent equipments.
- We have developed many kinds of recycling machines, including Hydraulic Powerful Press Baling Machine, plastic crusher, plastic extractor, plastic dewatering machine, dissolution foam machine, rubber cutter/cutting machine and so on.
- These products are not only with the great appearance and perfect system functions, but also easy to operation and low power consumption.
- Due to the persistent effort of our teams and the support of our customers, our factory will strengthen steadily.
- In the meantime, we have won a great reputation from our customers depend on our firm determination, best quality and excellent after-service.
- And our products are very popular not only in China, but also in Japan, Australia, Mexico, America, Canada, Indonesia, Kuwait and so on.
Pictures of our factory:
Pictures of our office:
Q1: Are you a factory or trading company?
A1: we are a factory with 8 years experience.
Q2: How can I get a quotation?
A2: Pls tell us the machine you need, including quantity, raw materials and other requirements.
Q3: After I buy the machine, what will you do if I don’t know some of the function?
A3: We will show you how to use the machine perfectly. Technical support and the video is available.
Q4: What can I do if the machine troubled after I buy it?
A4: We provide completely after sales service, and our engineers are avaliable to service machinery overseas.
Q5: Will you show me how to install the machine?
A5: Certainlly, we will enclose the production specification with the machine, and we could provide the video online to you.
Thanks for your reading! Welcome to China, welcome to our factory!
