Chinese Factory Industrial Used Machine Plastic Washer Price

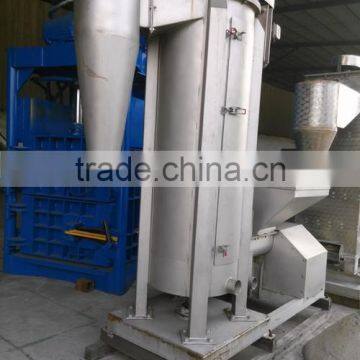

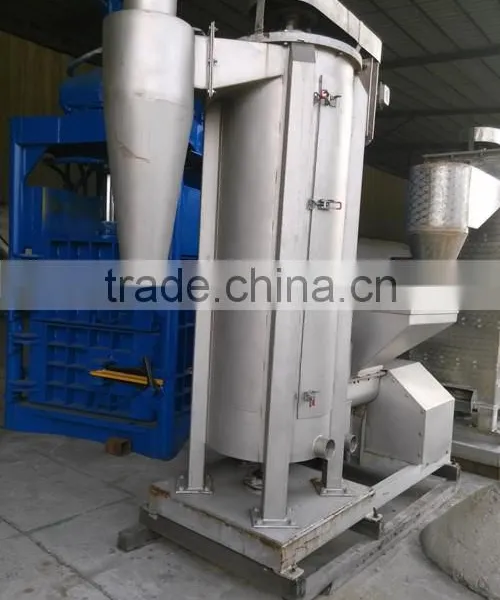

Automatic Vertical Plastic Dewatering Machine is suitable forcleaning and dewatering the plastic sheet and saccharoid, like PVC, PE, PP, ABS material, with the strength of low energy consumption, high dehydration and efficiency. Also easy to clean and operation, low noise, safety to use, durable.
Application Feature:
1. Made of stainless steel with advanced technology.
2. Low energy consumption and noise.
3. Durability.
4. High efficiency.
5. Safety in use.
6. It’shigh dehydration, especially in cleaning and dewatering the plastic sheet.
Instructions for use:
I : Installation requirements :
1, the vertical dewatering machine must be placed on a smooth concrete base depending on local circumstances.
2 , drains placed in the ditches , but not rigid connection , remember tighten anchor bolts .
3 , install the power cord , usually three-phase four-wire , which line the other three wire is the ground wire for the power cord.
II: Operation:
1 open front of the body to check whether the debris , now start the spindle motor, the motor rotation direction of the arrow , or should ( spindle steering and arrow. ) New machine is powered load running five minutes , and then start feeding the motor. If no abnormalities before feeding dehydration.
2 plastic dewatering machine is designed spindle motor must be started before starting feeding the motor. Stripper avoid clogging , such as using less effective than in the past found during dehydration , please turn off the power , open the cover and open the clogged sieve to remove the foreign body , and then reboot to use .
3 machine because high speed spindle drive belt between the motor phenomenon of long-term use has worn a gap , causing weakness or low speed spindle , dehydration results are poor, then the motor must be adjusting bolt out of adjustment. The rotating belt tensioner to the normal effect .
4 , stop dehydration, the first conveyor into the hopper After injecting some water to clean the hopper , and then close the feed motor , then close the spindle motor. To keep the machine clean.
III : Note:
1 , Application of this device is broken pellets or small flakes , can not put a slug or bulky materials to avoid stuck inside the machine .
2 , before you use start -load one minute , no abnormal to ` feeding dehydration.
3 , after the boot such as generating severe vibration or abnormal sound , immediately stop or cut off the power , open the cover , and then remove the screen, check whether the leaves fall off the spindle or a foreign body ` , if the shock can not be ruled out restarting the machine can not be used to check for the cause or notice party maintenance, to avoid accidents.
4 , on a regular basis to the spindle bearings, bearing feed , add butter, gear oil fill. Six months after the dewatering machine should do a comprehensive inspection .
Model | Rotor size | Motor Power | Water Supply | Capacity | Max Overall Dimension | Feeding position | Total Weight | ||||
(mm) | Main Motor | Feeding Motor | L/min | Kg/h | L*W*H(mm) | A | H | h | Kg |
| |
VE-F380 | 380*1545 | 7.5 | 1.5 | 20-40 | 600-1500 | 3020*1140*2350 | 860*860 | 1100 | 1150 | 1200 |
|
VE-F420 | 420*1545 | 11 | 1.5 | 20-50 | 800-2000 | 3020*1140*2350 | 860*860 | 1100 | 1150 | 1400 |
|
VE-Y380 | 280*1615 | 7.5 | 1.5 | 20-40 | 600-1500 | 2240*880*2440 | 660*660 | 1050 | 1050 | 1200 |
|
VE-Y420 | 420*1615 | 11 | 1.5 | 20-50 | 800-2000 | 2240*960*2440 | 660*660 | 1050 | 1050 | 1400 |
|
Other Recycling Machine(Click picture for more details)
Used Cardboard Baler Machine Baler Machine for Used Clothing Hard Plastic Cutting Machine
PVC Dewatering Machine Plastic Crusher for Sale Metal Baling Machine
In order to provide the best serive and good buying experience for you, we accept different terms of trade as you required:
EXW----The price of product, pls contact supplier for more detail.
FOB---------The FOB price are including the price of product, and the freight to the China port.
CIF------The CIF price including price of the product, the freight to your port, and the insurance fee. To get CIF price, pls kindly tell us the destination port, then we will quote you price as soon as possible.
CFR-----The CFR price including price of the product, the freight to your port. To get CFR price, pls let us know the destination port, and other requirements if you have.
Other terms------Pls contact supplier for more detail.
Payment: Accept T/T, Western Union, MoneyGram. 30% of total amount should be paid in advance, and the balance before delivery.
Packing:Nude packing
Delivery:25-30 days after receive the down payment.
>>>>>One year guarantee period. During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide them at cost price.
>>>>> Technical support and spare parts supply during the guarantee.
Guangzhou Panyu Shawan Chengyue Machinery Factoryis the leading manufacturer of recycling machines since 1995 with the advanced technology and excellent equipments.
- We have developed many kinds of recycling machines, including powerful press baling machine, crusher, plastic extractor, dewatering machine, dissolution foam machine and so on.
- Our products were exported to Japan, Australia, Mexico, America, Canada, Indonesia, Kuwait and so on.
- Experience factory and strong teams effort, we have won a great reputation from our customers. Believe Chengyue, we will progress and make a brighter future together.
Office
Workshop
Certification
Q1:Are you a factory or trading company?
A1: we are a factory with 8 years experience.
Q2: How can I get a quotation:
A2: Pls tell us the machine you need, quantity, or other requirements.
Q3: After I buy the machine, what can I do if I don’t know some of the function?
A3: We will show you how to use the machine perfectly. Technical support and spare parts supply is available.
Q4: What if the machine troubled after I buy it?
A4: We provide completely after sales service, and our engineer can go your place to fits it.
Q5: How can I contact you?
A5: Skype: Nina.liu99
Whatsapp: 8613527800109
Nina
Add: No.1111, Shiliang Road, Shawan Town, Panyu District, Guangzhou City, China
Trademanager: Ms. Nina liu
Skype: Nina.liu99
Whatsapp:+86 135 2780 0109
