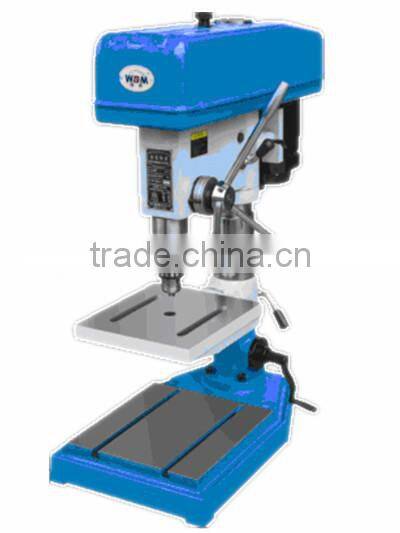

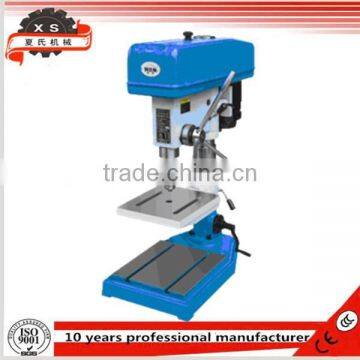

Industrial Type Bench Drilling Machine/Z516-2D
- shenzhen
- T/T D/P D/A Money Gram Credit Card
You May Like
-
Universal Rotary Head MillingMachine for Sale X6330
-
MS-DZ340A High Speed Small Hole EDM Drilling Machine
-
MS-DZ340 Series High Speed Small Hole EDM Drilling Machine
-
CNC Horizontal Milling Machine Miller XK6325B
-
XQ6226A Windows Automatic Aluminum End Milling Machine
-
High Speed Small Hole Drilling EDM [BMD703-500]
Product Details
| Condition | New | CNC or Not | Normal | |
| Drilling Speed | 480-4100r/min | Place of Origin | Guangxi, China | |
| Brand Name | XiaShi | Model Number | Z516-2D | |
| Power(W) | 550W | Dimension(L*W*H) | 528X360x1037mm | |
| Weight | 90KG | Certification | CE,ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Characters:
Both spindle head,worktable ,column and base using high quality cast iron,strong and ever
lasting.
High precision with excellent feature,widely used at all kinds of fields such as instrument
industry,machinery producing and repairing.
Technical parameter
Model | Z512-2D/Z516-2D |
Max,tapping capacity | 12.7/16mm |
Diameter of column | 70mm |
Spindle travel | 100mm |
Distance spindle to column | 193mm |
Max.distance spindle nose to table | 332/326mm |
Max.distance spindle nose to base | 556/550mm |
Spindle taper | B16/B18 |
Spindle speeds range | 480~4100r/min |
Spindle speeds series | 5speeds |
Dimension of table surface | 265x265mm |
Dimension of base | 528x360mm |
Overall height | 1037mm |
Power of motor | 370/550W |
G.W/N.W | 108/90KG |
Packing dimension | 77x42x94cm |
Standard accesories
Drill chuck
Arbor(only taper hole spindle)
Drift(only taper hole spindle)
Wrench

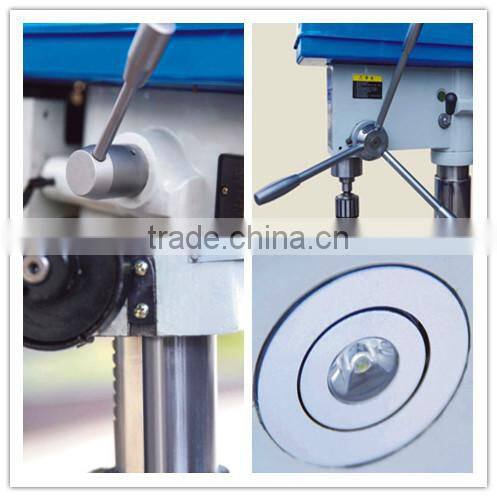

Detailed pictures for your reference
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
