Big Spindle bore lathe CS6166C/2000mm
Features
1.Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
2.Threading Inch, Metric, Module and D.P.;
3.Perform drilling, boring and groove broaching;
4.Machine all kinds of flat stocks and those in irregular shapes;
5.Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
6.Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
7.There are hand brake and foot brake for users to choose;
8.These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz).
Main Specification
| SPECIFICATIONS | UNIT | CS6166C | CS6266C | |
| Capacity | Max. swing dia. over bed | mm | Φ660 | |
| Max. swing dia. over slides | mm | Φ420 | ||
| Max. turning dia. | mm | Φ400 | ||
| Max. swing dia.in gap | mm | Φ870 | ||
| Effective length in gap | mm | Φ240 | ||
| Max. workpiece length | mm | 1000/1500/2000/3000 | ||
| Max. turning length | mm | 950/1450/1950/2950 | ||
| Spindle | Spindle bore diameter | mm | Φ105 | |
| Taper of spindle bore | mm | 1:20 Φ113 | ||
| Type of spindle nose | no | ISO 702/II NO.8 short cam-lock type | ||
| Spindle speed | rpm | 12 steps 36-1600 | ||
| Spindle motor power | KW | 7.5 | ||
| Tailstock | Diameter of quill | mm | Φ75 | |
| Max. travel of quill | mm | 150 | ||
| Taper of quill (Morse) | MT | 5 | ||
| Turret | Tool O.D. size | mm | 25X25 | |
| Feed | Max. Travel of upper toolpost | mm | 145 | |
| Max. travel of lower toolpost | mm | 310 | ||
| X-axis feedrate | m/min | 50Hz:1.9, 60Hz: 2.3 | ||
| Z-axis feedrate | m/min | 50Hz:4.5, 60Hz: 5.4 | ||
| X-axis feed range | mm/r | 65 kinds 0.027-1.07 | ||
| Z-axis feed range | mm/r | 65 kinds 0.063-2.52 | ||
| Metric threads | mm | 22 kinds 1-14 | ||
| Inch threads | t.p.i | 25 kinds 28-2 | ||
| Module threads | πmm | 18 kinds 0.5-7 | ||
| Diametric pitch threads | t.p.i | 24 kinds 56-4 | ||
| Other | Cooling pump motor power | KW | 0.12 | |
| Rapid traverse motor power | KW | 0.25 | ||
| Length | mm | 2632/3132/3632/4632 | ||
| Width | mm | 975 | ||
| Height | mm | 1450 | ||
| Weight | Kg | 2200/2400/2600/3000 | ||

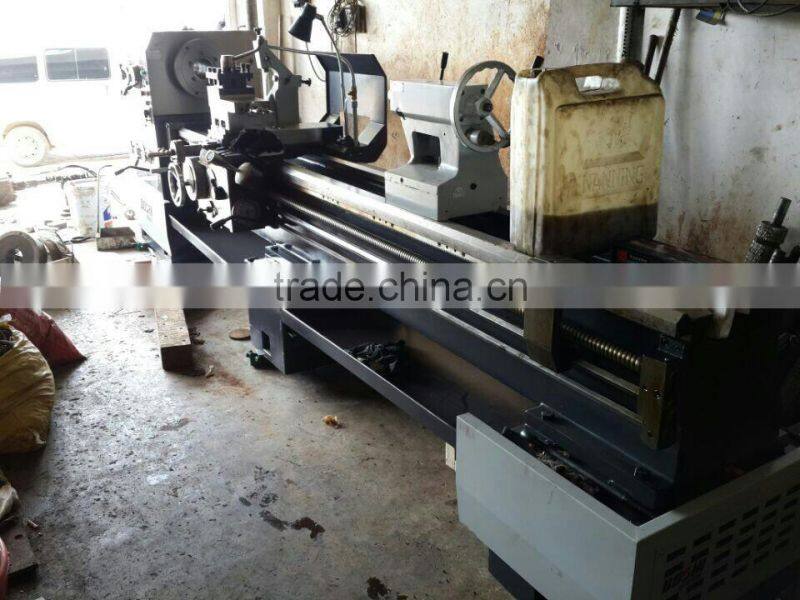

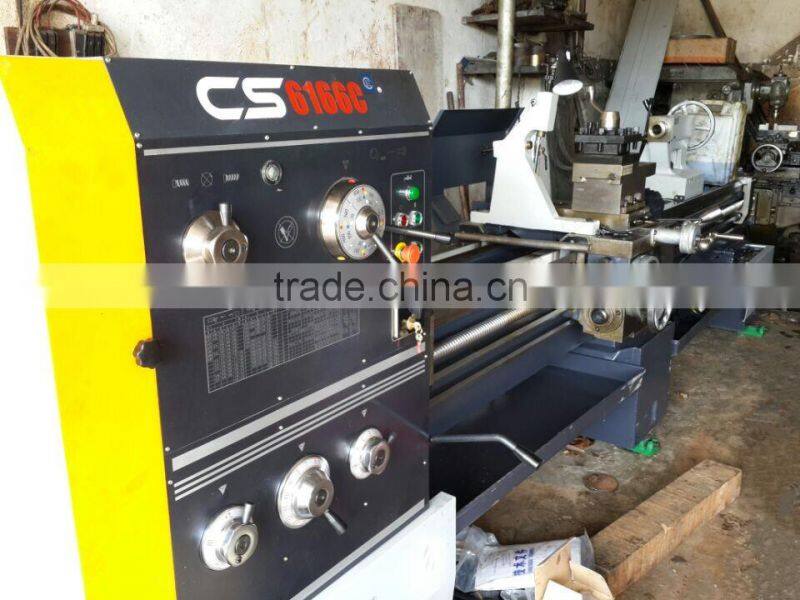

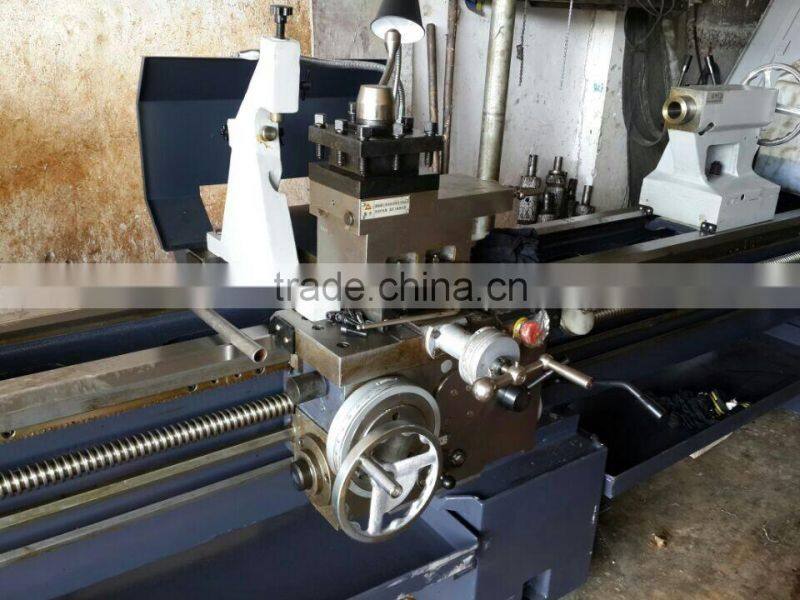

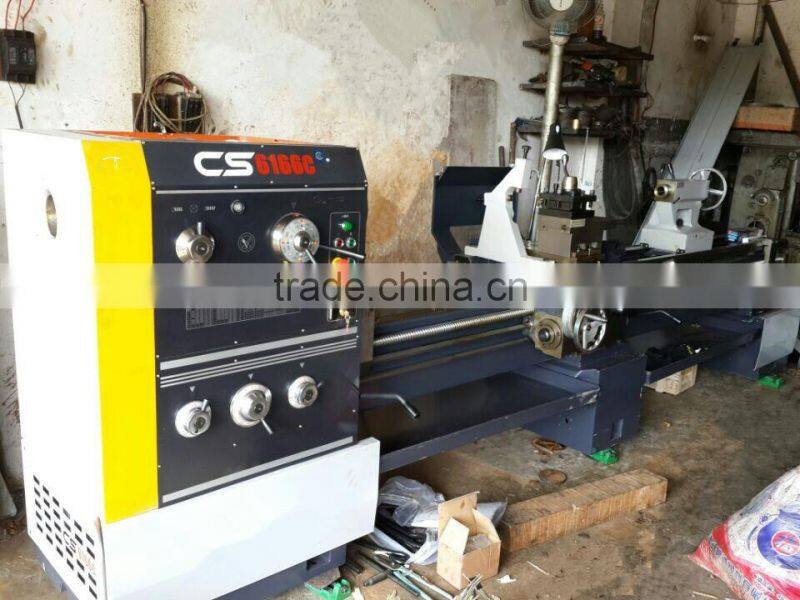

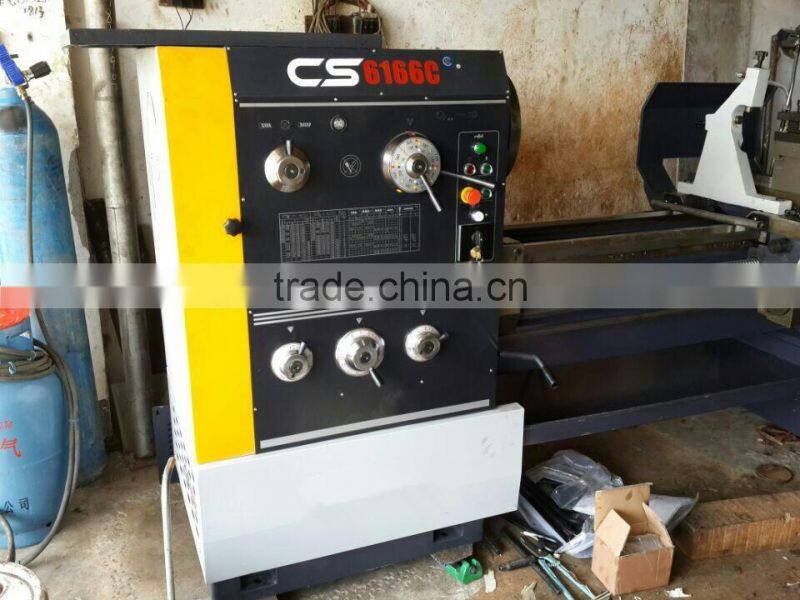

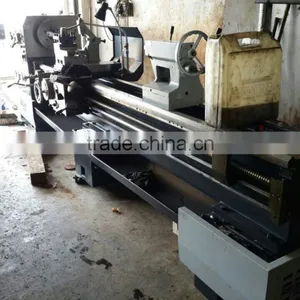

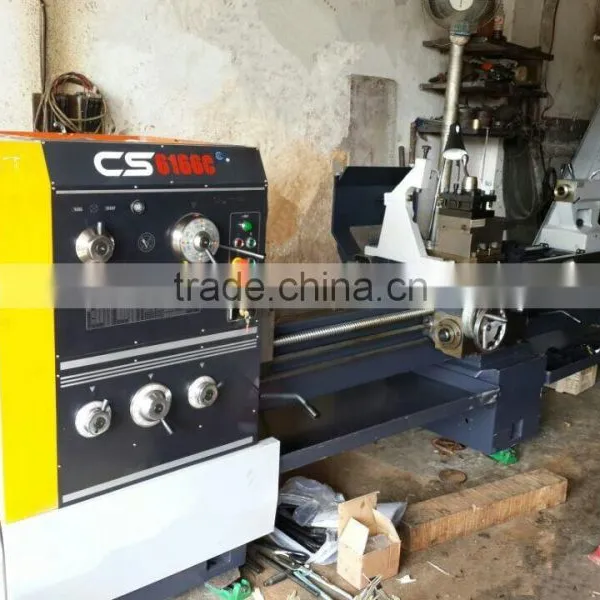

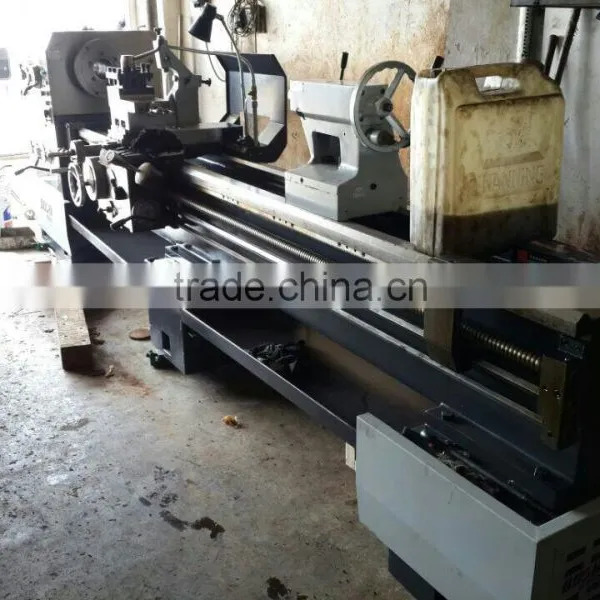

Picture for your reference
1. Payment
What are the terms of payments you offer?
We accept payment of T/T, LC and Western Union etc
2. Shipment
How long will it take to deliver goods?
We will deliver the goods within 10 days for spare parts, we will deliver the goods within the deadline which both parties agree.
3. What kind of packaging you offer?
Normally in Plywood case or nude package,to make sure all goods in a good condition.
4. What kind of transportation methods you offer?
We always transport by sea or by air, we will confirm freight with buyers' prior delivery.
5. How about the insurance during transportation? How to deal with the responsibility?
Buyers should take the full responsibility for shortage of goods if the goods are checked
by any custom during transportation. During transportation, if goods are missed because of
having been detained by custom in China, all loss thus occurred should be borne by us; if
missing or detained of goods are occurred in other country except China, all loss should be
borne by buyers.
Warranty & After-sale service
1. 24-hours technical support by E-mail or telephone
2. Provide extra accessories for the machine
Also provide service of make program according to your drawings
Customized or special design is OK.
3. All of our products’ warranty period for 12 months.
4. Man-made destroy will be exception
5.We can supply the materials or tech support to our customers to help them fix the problems.
We will pay the delivery charge if the repair, return or replacement cases happen.
Contact
1.Our working time: 8:30am~5:30pm
2. All inquiries will be replied within 24 hours, So please feel free to send us your
inquiry.
3. when our trade manager is off line, please feel free to leave a message, and tell us the
products with model you are interested in, and your E-mail address, we will reply to you within
24 hours.
