High Precision Centerless Grinding Machine MK10200A,Centerless Grinder With Low Price
Salient features:
The diameter of grinding wheel is 600mm, with strong grinding force.
The wide grinding wheel can increase the grinding allowance in a single pass, and decrease
repeating, to raise efficiency.
The grinder designed for fixed grinding wheel and movable regulating wheel.
The spindles of grinding wheel adopted double support & muti-plate ball support dynamic oil
film bearing.
The spindles of regulating wheel adopted double row cylindrical roller bearing, with double
supported wheel.
Lubrication of grinding wheel spindle with thermostat.
The regulating wheel feed slide is equipped high rigidity linear guideway and servomotor that
drives ball screws.
AC frequency converter is used for regulating wheel stepless speed control, as well as reverse
towing prevent function.
Gear motor driven the ball screw & stepless speed regulation are adopted on regulating wheel & grinding wheel dresser.
The coolant system is equipped with magnetic coolant separator.10.4” touch panel, automatic
plunge-cut grinding, the load, speed, time and step level adjustable, PLC or CNC system
optional.
The design of machine is based on modularize method, with good looking shape. Its configuration can be select
Technical parameter
Thru-feed 1)Grinding diameter |
10-200mm |
2)Grinding length |
300mm |
Plunge feed 1)Grinding diameter |
10-200mm |
2)Grinding length |
390mm |
Grinding wheel specifications |
P600*400*305mm |
Regulating wheel specifications |
P350*400*203mm |
Grinding wheel speed |
1100r/min |
Regulating wheel speed(stepless) |
10-300r/min |
Swiveling angle of regulating wheel |
|
1)Invertical plane |
-2°~ 5° |
2)In horizontal plane |
-1°~ 3° |
Regulating wheel min. feed amount |
0.001mm |
Grinding wheel dresser min. feed amount |
0.001mm |
Height from centerline of gri.wheel & reg.wheel to workest |
200mm |
Cooling Water |
200L/min |
Toal power of machine |
|
1)Grinding wheel motor |
30kw |
2)Regulating wheel motor |
3kw |
3) Pump Motor |
0.45kw |
4)Lubricant Pump Motor |
0.09kw |
5) Hydraulic Pump Motor |
0.75kw |
6)Magnetic coolant separator Motor |
0.18kw |
Overall dimensions |
3300*1780*1900mm |
Machine weight |
about 9000kg |
Machining accuracy |
|
1)Roundness |
0.001mm |
2)Cylindricity |
0.0018mm |
3)Surface Roughness |
Ra0.16um |

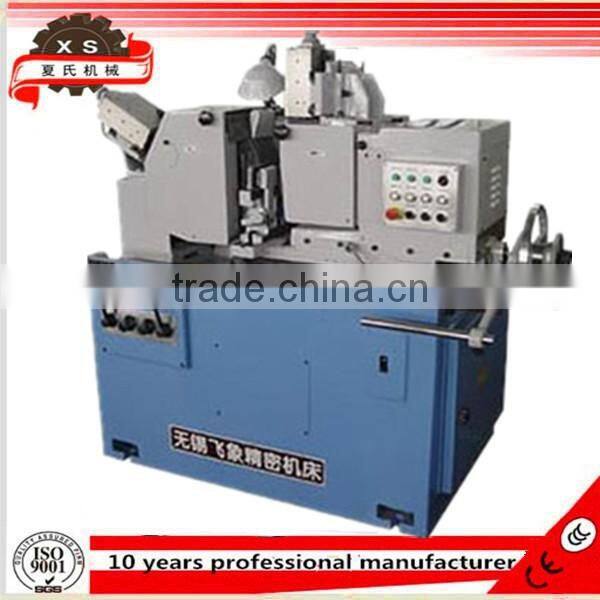

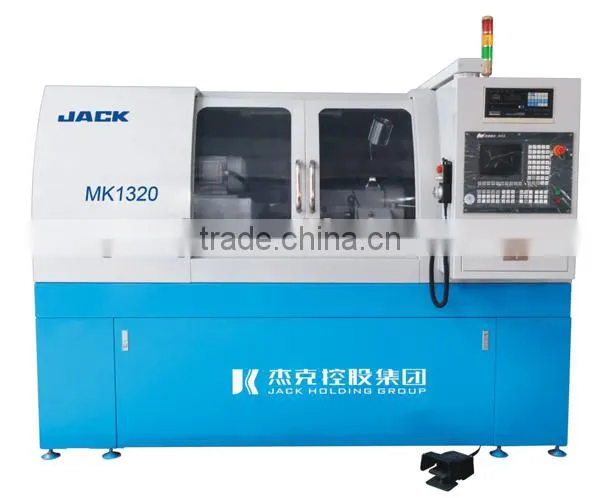

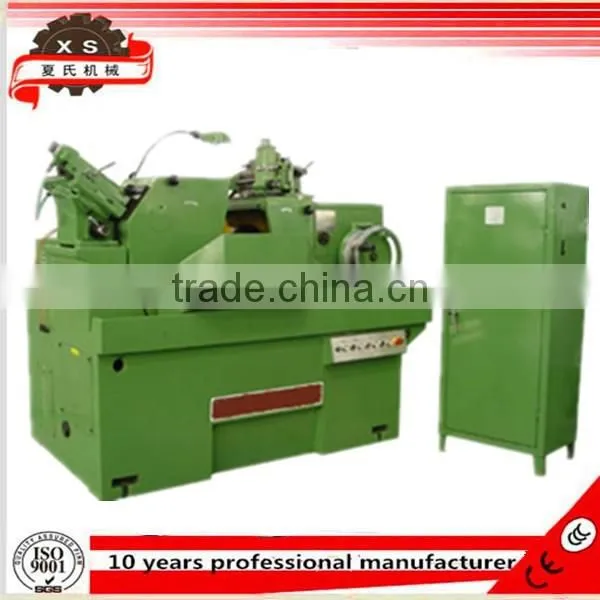

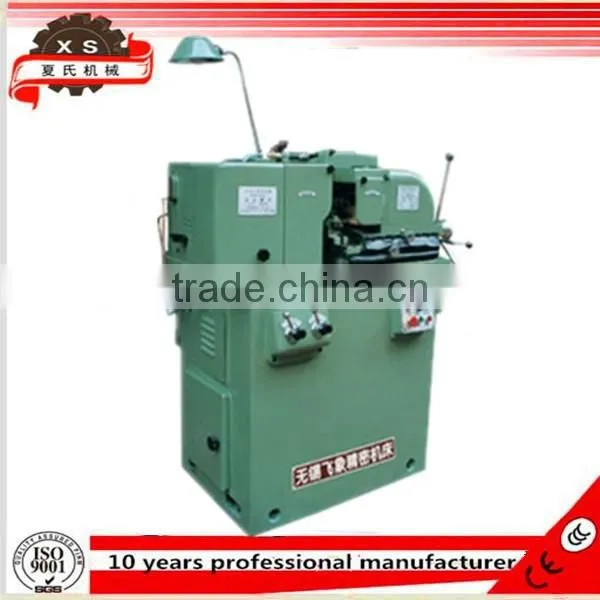

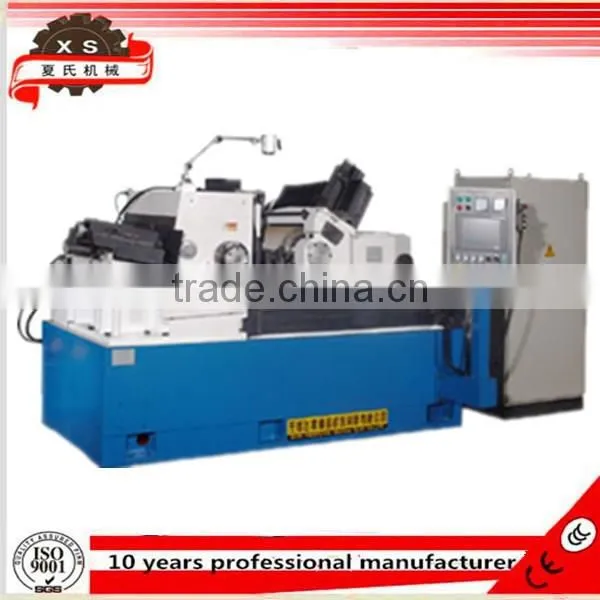

Detailed pictures for your reference
1. 24-hours technical support by E-mail or telephone
2. Provide extra accessories for the machine
Also provide service of make program according to your drawings
Customized or special design is OK.
3. All of our products’ warranty period for 12 months.
4. Man-made destroy will be exception
5.We can supply the materials or tech support to our customers to help them fix the problems.
We will pay the delivery charge if the repair, return or replacement cases happen.
Contact
1.Our working time: 8:30am~5:30pm
2. All inquiries will be replied within 24 hours, So please feel free to send us your
inquiry.
3. when our trade manager is off line, please feel free to leave a message, and tell us the
products with model you are interested in, and your E-mail address, we will reply to you within
24 hours.
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
