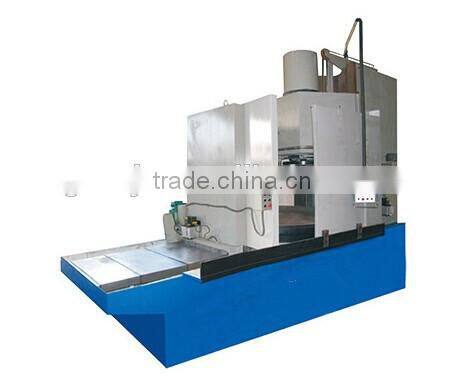

Vertical Spindle Surface Grinding Machine With Rotary Work Table M74200K
- Shenzhen
- T/T Money Gram Credit Card
You May Like
-
Metal Face Internal Grinder Machine,internal Grinding Machine(M2120A)
-
Metal Face Internal Grinder Machine,internal Grinding Machine(MD2120A)
-
Dependable Performance Cylindrical Internal Grinding/grinder Machine MBD2120 With Cheap Price
-
Internal CNC Grinding Machines for Metal MK2110
-
Internal Cylindrical Universal Grinding Machine M1432
-
Dovetail Guideway Grinder Y2-1003A
Product Details
| Condition | New | Type | Surface Grinding Machine | |
| CNC or Not | CNC | Place of Origin | Guangxi, China | |
| Brand Name | Xiashi | Model Number | M74200K | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
M74200K,M74225K,M74250K Vertical Spindle Surface Grinding Machine with Rotary Work Table is surface-grinding machine designed to process work pieces on the rotary work table by the circumference of the grinding wheel on the spindle.
The work table is in the use of an electromagnetic sucking device or Disc clicker; the vertical pillar and the machine tool bed are connected by the three-point position regulation system, which helps to process the work piece into inside cave shape or crown shape; the grinding wheel spindle is driven by a high-power loaded electric motor, which improves the grinding effect; the grinding wheel is in the use of even distributed trapezoid carborundum brick wheels around the circumference.
This machine is used in the surface grinding process of mass-production disc type work. In metal industries, such as pulp-whetting slices, bearings, disc type cutters, circular saw blades, automotive engine connecting rod, clutch friction plates, hydraulic pressure casting, and pump valves; in nonmetal industries, such as refractory material, ceramic, glass, silica, marble, and carbon fiber.
List | (Unit) | M74200K | M74225K | M74250K |
Diameter of Worktable | mm | Φ2000 | Φ2250 | Φ2500 |
Grinding Range of Work Pieces(D×H) | mm | Φ2000×400 | Φ2250×400 | Φ2500×400 |
Rotational Speed of Working Table(Stepless) | rpm | 2~20 | 2~20 | 2~20 |
Shifting Distance of Working Table | mm | 1100 | 1100 | 1300 |
Max. Weight of loaded work piece | kg | 10000 | 12500 | 15500 |
Grinding Wheel Dimension(DO×IO×W) | mm | Φ1200×Φ1050×120 | Φ1200×Φ1050×120 | Φ1200×Φ1050×120 |
Dimensions of Trapezoid Carborundum Brick (A×B×C×L) | mm | 85×100×35×150 | 85×100×35×150 | 85×100×35×150 |
Trapezoidal wheel swing diameter | mm | Φ1200 | Φ1200 | Φ1200 |
Rotational Speed of Grinding Head Main Spindle | rpm | 490~590 | 490~590 | 490~590 |
Vertical Shifting Distance of Grinding Head | mm | 420 | 420 | 420 |
Auto-Vertical Feed Range of Grinding Head (total 12 levels) | mm | 0.005~0.1 | 0.005~0.1 | 0.005~0.1 |
Auto-Vertical Feed interval time of Grinding Head (total 4 levels) | s | 0~9 | 0~9 | 0~9 |
displacement of grinding-head per step of electronic handwheel | mm | 0.005 | 0.005 | 0.005 |
Rapid Up-and-Down Speed of the Grinding Head | mm/min | 120 | 120 | 120 |
Power of the Grinding Head Motor | kw | 75 | 75 | 75 |
Machine Weight | t | 41.5 | 47.4 | 54.7 |
Overall Machine Dimensions(L×W×H) | mm | 6800×2550×3510 | 7200×2730×3510 | 7500×2900×3750 |
Parallelism of Machined Surface to Base Surface | mm | 0.015/1000 | 0.015/1000 | 0.015/1000 |
Roughness of Work Piece Surface | μm | Ra≤1.25 | Ra≤1.25 | Ra≤1.25 |
