Metal Face Internal Grinder Machine,internal Grinding Machine(MD2120A)

Metal Face Internal Grinder Machine,internal Grinding Machine(MD2120A) photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Internal Grinding Machine
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Internal Grinding Machine
CNC or Not Normal
Max. Grinding Diameter 200mm
Max. Grinding Length 200mm
Model Number MD2120A
Voltage 380v
Power(W) 6.5kw
Dimension(L*W*H) 2800*1600*1700m
Weight 3800kg
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas



Product Description

Application

Our machies mainly apply for: inner bore and cylindrical grinding of plane, car, machine, electronic parts, sports equipments, sewing parts,  shot shoot, ceramic and optical parts.

Feature

1 semi-auto control available
2 support end face grinding
3 stepless speed control
4 size 2800*1600*1700mm



Technical parameter



Model

MD2120A

MBD2120

Dia. to be ground

Φ50-200mm

Max depth to be ground

200mm

Rotation dia. of workpiece(Guard inside)

400mm

Rotation dia. of workpiece(Guard outside)

600mm

Max rotary angle of headstock

30°

Workpiece speed

100-500r/min(stepless)

Grinding wheel speed

4000-6000/8000-11000 r/min

End surface speed

8000r/min

8000r/min

X-axis max stroke

250mm

Worktable travel

600mm

X-axis rabid travel speed

8m/min

X-axis min feeding amount

0.002mm

Control system

FANUC/SIEMENS/MITSUBISHI

Grinding wheel motor

4kw

Headstock motor power

0.75kw

Oil-Pump motor power

0.75kw

Coolant pump motor power

0.125kw

End surface motor power

0.75kw

0.75kw

Servo motor power

X-axis1.5kw

Total power

About 6.5kw

About 8kw

Roundness

0.003mm

roughness

0.32Ra

Machine weight

3600kg

3800kg

4000kg

4200kg

Overall dimensions

2.8×1.6×1.7m

2.8×1.8×1.7m





Detailed pictures for your reference

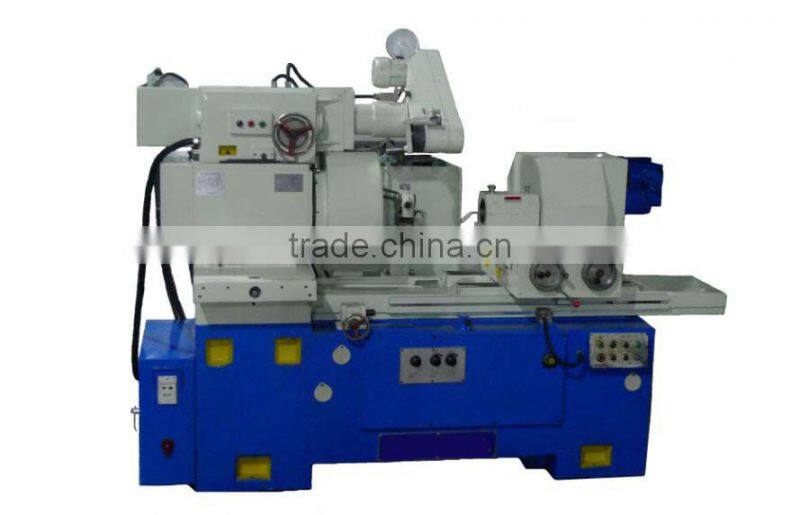

Metal face internal grinder machine,internal grinding machine(MD2120A)

If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
