Help CenterPVC/ CPVC/ PP/ PVDF Pneumatic Actuated True Union Ball Valves DIN
Related Products
-
PVC/ CPVC/ PP/ PVDF Pneumatic Actuated True Union Ball Valves ANSINegotiableMOQ: 5 Cartons -
PVC/ CPVC/ PP/ PVDF Electric Actuated True Union Ball Valves JISNegotiableMOQ: 5 Cartons
-
PVC/ CPVC/ HT-CPVC Compact Ball Valves DINNegotiableMOQ: 5 Cartons
-
PVC/ CPVC/ PP/ PVDF Electric Actuated True Union Ball Valves ANSINegotiableMOQ: 5 Cartons
-
PVC/ CPVC/ HT-CPVC Compact Ball Valves JISNegotiableMOQ: 5 Cartons
ITEM | PAPT | MATERIAL | QTY |
| 01 | BODY | PVC/CPVC/PP/PVDF | 1 |
| 05 | STEN | PVC/CPVC/PP/PVDF | 1 |
| 06 | BALL | PVC/CPVC/PP/PVDF | 1 |
| 07 | SEAT | TPV/PTFE | 2 |
| 08 | SEAL CARRIER | PVC/CPVC/PP/PVDF | 1 |
| 15 | UNION NUT | PVC/CPVC/PP/PVDF | 2 |
| 17 | UNION END | PVC/CPVC/PP/PVDF | 2 |
| 20 | ACTUATOR | SS 304 | 1 |
| 30 | BOLT | SS 304 | 6/8 |
| 32 | PAD | SS 304 | 6/8 |
| 36 | BRACKET | SS 304 | 1 |
| 37 | DRIVE ADAPTOR | SS 304 | 1 |
| 41 | ORING | EPDM/VITON | 2 |
| 42 | ORING | EPDM/VITON | 1 |
| 43 | ORING | EPDM/VITON | 2 |
| 44 | ORING | EPDM/VITON | 2 |
PVC/CPVC/PP/PVDF Pneumatic actuated true union ball valves DIN advantages:
1. Materials meet drinking water standard
2. Smooth opening & closing thanks to a lower torque
3. 100% pure virgin material, CaCO3 free (Chalk)
4. UV resistant powder added
5. 100% pressure testing before leaving the factory
6. Can be assembled with Electtric Actuators as well
PVC/CPVC/PP/PVDF Pneumatic actuated true union ball valves DIN description:
1. Material: PVC, CPVC, PP,PVDF
2. Size: 1/2'' - 4''; 20mm - 110mm ; DN15 - DN100
3. Joint End: Socket, Threaded NPT, BSPF and PT
4. Standard: ANSI, DIN, JIS
5. Working Pressure: 150 PSI
6. Operating Temperature: PVC(0~55℃); CPVC & PP (0~95℃)
7. Actuator's Lowest Air Pressure: 45 PSI; Max. Operationg Pressure: 120 PSI
8. Valve body color : PVC(dark gray), CPVC(light gray), PP(light yellow), PVDF(ivory)
PVC/CPVC/PP/PVDF Pneumatic actuated true union ball valves DIN specifications:

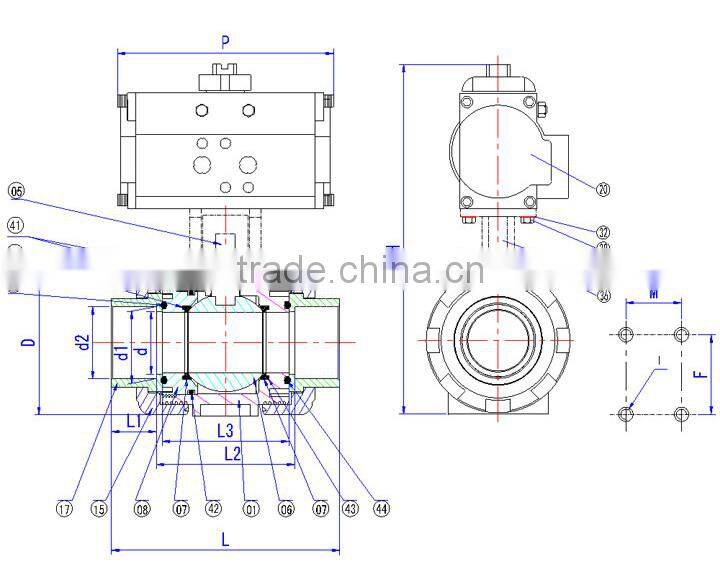

| SIZE | d | d1 | d2 | D | L | L1 | L2 | L3 | P | H | F | M | I |
| 1/2"(15) | 15 | 20.30 | 20.10 | 54.00 | 92.00 | 16.00 | 60.00 | 52.00 | 155.00 | 176.50 | 31.00 | —— | M6 |
| 3/4"(20) | 20 | 25.30 | 25.10 | 63.00 | 100.00 | 19.00 | 62.00 | 54.00 | 155.00 | 186.00 | 33.00 | —— | M6 |
| 1"(25) | 25 | 32.30 | 32.10 | 73.50 | 114.00 | 22.00 | 70.00 | 62.00 | 155.00 | 196.50 | 40.00 | —— | M6 |
| 1 1/4"(32) | 32 | 40.30 | 40.10 | 84.50 | 130.00 | 26.00 | 78.00 | 70.00 | 168.00 | 235.00 | 52.00 | —— | M8 |
| 1 1/2"(40) | 40 | 50.30 | 50.10 | 98.00 | 151.50 | 32.00 | 87.50 | 79.50 | 168.00 | 249.50 | 52.00 | —— | M8 |
| 2"(50) | 50 | 60.30 | 60.10 | 118.00 | 171.00 | 38.00 | 95.00 | 85.00 | 168.00 | 280.00 | 70.00 | —— | M8 |
| 2 1/2"(65) | 65 | 75.30 | 75.10 | 150.00 | 238.50 | 47.00 | 144.50 | 132.50 | 219.00 | 331.00 | 84.00 | 45.00 | M10 |
| 3"(80) | 75 | 90.40 | 90.10 | 169.00 | 268.00 | 51.00 | 166.00 | 150.00 | 249.00 | 362.50 | 84.00 | 45.00 | M10 |
| 4"(100) | 97 | 110.40 | 110.10 | 211.00 | 318.00 | 61.00 | 196.00 | 172.00 | 249.00 | 423.00 | 121.00 | 49.00 | M12 |
