PVC/CPVC/PP/PVDF Electric actuated true union ball valves JIS advantages:
1. Plastic actuator body pass impaction & acid-base tests, also meets SGS
2. Valve position can be adjusted from 15 degree to 90 degree
3. Assembly of actuators and valves meets EN ISO 5211 standard
4. 100% pure virgin material, CaCO3 free (Chalk)
5. Valve body is added in UV resistant powder
6. 100% performance testing before leaving the factory
7. Can be assembled with Pneumatic Actuators as well
PVC/CPVC/PP/PVDF Electric actuated true union ball valves JIS description:
1. Material: PVC, CPVC, PP,PVDF
2. Size: 1/2'' - 4''; 20mm - 110mm ; DN15 - DN100
3. Joint End: Socket, Threaded NPT, BSPF and PT
4. Standard: ANSI, DIN, JIS
5. Working Pressure: 150 PSI
6. Operating Temperature: PVC(0~55℃); CPVC & PP (0~95℃)
7. Valve body color : PVC(dark gray), CPVC(light gray), PP(light yellow), PVDF(ivory)
PVC/CPVC/PP/PVDF Electric actuated true union ball valves JIS specifications:

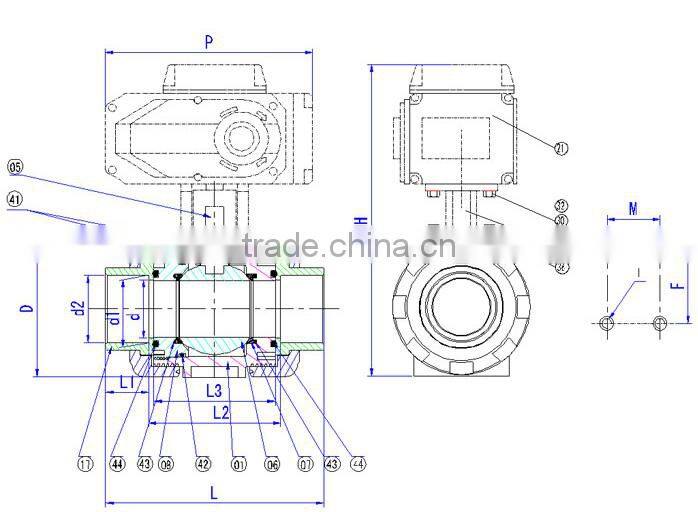

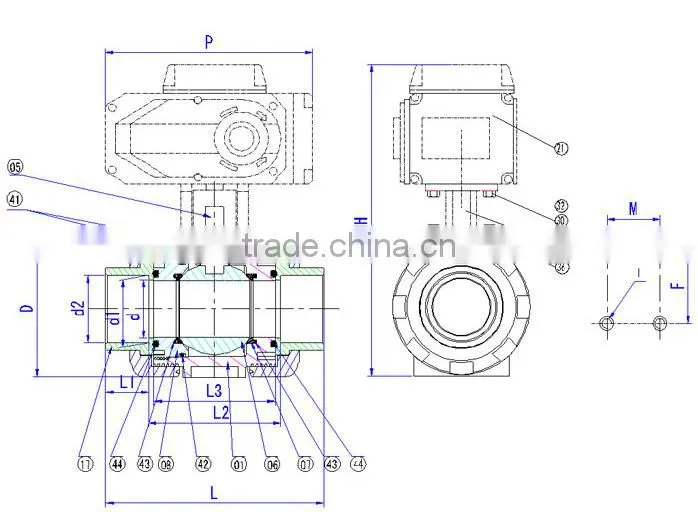

| SIZE | d | d1 | d2 | D | L | L1 | L2 | L3 | P | H | F | M | I | operating torque (N-M) |
| 1/2"(15) | 15 | 22.40 | 21.73 | 54.00 | 104.80 | 22.30 | 60.00 | 52.00 | 180.00 | 174.00 | 31.00 | —— | M6 | 2.0 |
| 3/4"(20) | 20 | 26.45 | 25.69 | 63.00 | 113.00 | 25.50 | 62.00 | 54.00 | 180.00 | 183.00 | 33.00 | —— | M6 | 2.5 |
| 1"(25) | 25 | 32.55 | 31.70 | 73.50 | 127.20 | 28.60 | 70.00 | 62.00 | 180.00 | 193.50 | 40.00 | —— | M6 | 4.0 |
| 1 1/4"(32) | 32 | 38.60 | 37.65 | 84.50 | 142.00 | 32.00 | 78.00 | 70.00 | 180.00 | 216.00 | 52.00 | —— | M8 | 5.0 |
| 1 1/2"(40) | 40 | 48.70 | 47.74 | 98.00 | 157.50 | 35.00 | 87.50 | 79.50 | 180.00 | 230.60 | 52.00 | —— | M8 | 7.5 |
| 2"(50) | 50 | 60.80 | 59.78 | 118.00 | 171.00 | 38.00 | 95.00 | 85.00 | 180.00 | 260.70 | 70.00 | —— | M8 | 8.5 |
| 2 1/2"(65) | 65 | 76.60 | 75.68 | 150.00 | 238.50 | 47.00 | 144.50 | 132.50 | 180.00 | 294.30 | 84.00 | 45.00 | M10 | 13.00 |
| 3"(80) | 75 | 89.60 | 88.55 | 169.00 | 268.00 | 51.00 | 166.00 | 150.00 | 212.00 | 340.30 | 84.00 | 45.00 | M10 | 16.00 |
| 4"(100) | 97 | 114.70 | 113.60 | 211.00 | 318.00 | 61.00 | 196.00 | 172.00 | 212.00 | 401.00 | 121.00 | 49.00 | M12 | 25.00 |
