UPVC/ CPVC/ PP Flanged Ball Check Valves ANSI
Negotiable
MOQ: 5 Cartons (Price negotiable depending on order volume and customization)
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UPVC CPVC ABS Compact Ball Valves ANSI JIS DIN BSNegotiableMOQ: 5 Cartons -
PVC/CPVC/PP/PVDF Compact Ball Valves JISNegotiableMOQ: 5 Cartons
-
PVC/ CPVC/ PP/ PVDF Compact Ball Valves DINNegotiableMOQ: 5 Cartons
-
PVC/ CPVC/ PP/ PVDF Compact Ball Valves ANSINegotiableMOQ: 5 Cartons
-
PVC/ CPVC/ PP/ PVDF Pneumatic Actuated True Union Ball Valves DINNegotiableMOQ: 5 Cartons
Brand Name
TU

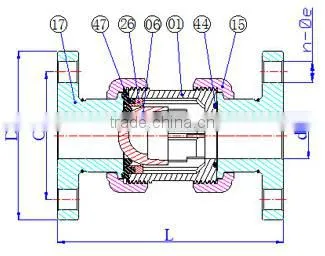

ITEM |
PART |
METERIAL |
QTY |
| 01 | BODY | PVC/CPVC/PP | 1 |
| 06 | BALL | PVC/CPVC/PP | 1 |
| 15 | UNION NUT | PVC/CPVC/PP | 2 |
| 17 | FLANGE | PVC/CPVC/PP | 2 |
| 26 | BUCKLE | PVC/CPVC/PP | 1 |
| 44 | ORING | EPDM/VITON | 1 |
| 47 | SEAL | EPDM/VITON | 1 |
UPVC CPVC PP Flanged Ball Check Valves ANSI Advantages:
1.New CUP shape ball can stop water by just 0.5kg pressure
2.Materials meet drinking water standard
3.100% pure virgin material, CaCO3 free (Chalk)
4.UV resistant powder added
5.Can be assembled vertically or horizontally
UPVC CPVC PP Flanged Ball Check Valves ANSI Description:
1.Material: PVC, CPVC, PP
2.Size: 1/2'' - 2''; 20mm - 63mm ; DN15 - DN50
3.Standard: ANSI, DIN, JIS, CNS
4.Joint End: Flanges
5.Working Pressure: 150 PSI
6.Operating Temperature: PVC(0~55℃); CPVC & PP(0~95℃)
7.Valve body color : PVC(dark gray), CPVC(light gray), PP(light yellow)
UPVC CPVC PP Flanged Ball Check Valves ANSI Specifications
| SIZE | d | D | C | L | n-φe |
| ANSI | |||||
| 1/2"(15) | 15 | 95 | 60.5 | 130.8 | 4-15 |
| 3/4"(20) | 20 | 105 | 70 | 150 | 4-15 |
| 1"(25) | 25 | 125 | 79.2 | 166.5 | 4-19 |
| 1?"(32) | 32 | 140 | 89 | 183.5 | 4-19 |
| 1?"(40) | 40 | 150 | 98 | 200 | 4-19 |
| 2"(50) | 50 | 165 | 121 | 222.5 | 4-19 |
