UPVC Union Type Diaphragm Valves DIN PN16 (ANSI SCH 80)
Negotiable
MOQ: 5 Cartons (Price negotiable depending on order volume and customization)
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UPVC Drainage Non-Return Valve DINNegotiableMOQ: 5 Cartons -
UPVC/ CPVC/ PP Flanged Ball Check Valves ANSINegotiableMOQ: 5 Cartons
-
UPVC CPVC ABS Compact Ball Valves ANSI JIS DIN BSNegotiableMOQ: 5 Cartons
-
PVC/CPVC/PP/PVDF Compact Ball Valves JISNegotiableMOQ: 5 Cartons
-
PVC/ CPVC/ PP/ PVDF Compact Ball Valves DINNegotiableMOQ: 5 Cartons
Brand Name
TU

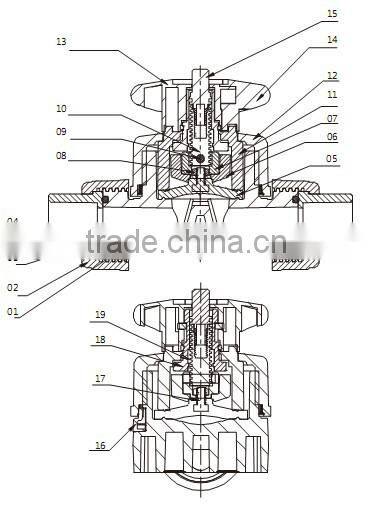

| No. | Name | Quantity | Materical |
| 1 | Vavle body | 1 | PVC-U |
| 2 | Socket nut | 2 | PVC-U |
| 3 | Bellmouth(ISO/ANSI) | 2 | PVC-U |
| 4 | O-ring | 1 | EPDM/FPM |
| 5 | Diaphragm piece | 1 | EPDM/FPM |
| 6 | Disc | 1 | PPS |
| 7 | Borders insert valve | 1 | Brass(H62) |
| 8 | Hex nut | 1 | Stainless steel |
| 9 | Φ4 pin | 1 | Stainless steel |
| 10 | Valve rod | 1 | Stainless steel(304) |
| 11 | Diaphragm seal water jacket | 1 | PP |
| 12 | valve nut | 1 | PP |
| 13 | Hand wheel | 1 | PP |
| 14 | Hand wheel lock block | 1 | PP |
| 15 | Indication rod | 1 | PP |
| 16 | Valve nut set rule | 1 | PP |
| 17 | Hex bolt | 1 | Stainless steel |
| 18 | Valve-stem nut | 1 | PPS |
| 19 | Stem nut inlay | 1 | Brass(H62) |
Name: UPVC Union type diaphragm valves DIN PN16 (ANSI SCH 80)
Material: UPVC
Standard: DIN,ANSI
Size: 15~50

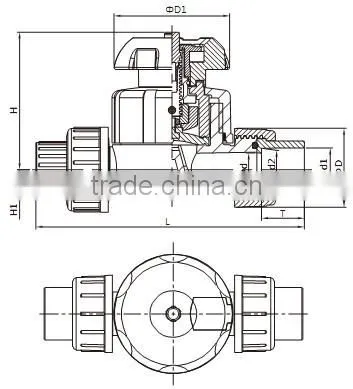

UPVC Union type diaphragm valves DIN PN16 (ANSI SCH 80) specification:
| Size | Overall Dimensions(mm) | Work pressure | ||||||||
| DN(de) | D | d1 | d2 | T | d | L | H | H1 | D1 | kg/cm2 |
| 15(20) | 46.5 | 20.3 | 19.95 | 16.5 | 16 | 128 | 90 | 14 | 80 | 10 |
| 20(25) | 53.5 | 25.3 | 24.95 | 19 | 20 | 152 | 102 | 18 | 80 | 10 |
| 25(32) | 64 | 32.3 | 31.9 | 22.5 | 26 | 166 | 119 | 21 | 94 | 10 |
| 32(40) | 74.5 | 40.35 | 39.9 | 26.5 | 34 | 192 | 126 | 26 | 117 | 10 |
| 40(50) | 85 | 50.35 | 49.9 | 31.5 | 43 | 222 | 139 | 33 | 117 | 10 |
| 50(63) | 100 | 63.4 | 62.9 | 36.7 | 56 | 266 | 172 | 39 | 152 | 10 |
