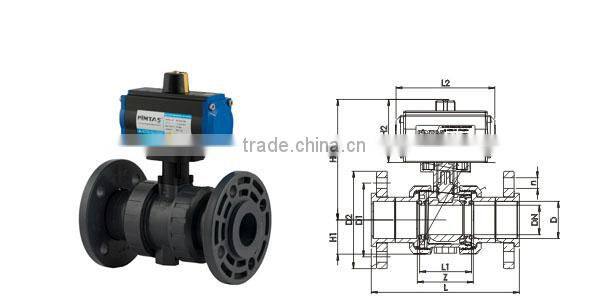

Help CenterU-PVC Pneumatic Actuation Double Acting True Union Ball Valves For Acid (Both Side Female Threaded Ball Valve)
Related Products
-
U-PVC Pneumatic Actuation Double Acting True Union Ball Valves For Acid (Two Side Female Threaded)US$ 1 - 1,000MOQ: 5 Cartons -
PVC UH True Ball Valve For Acid, With Electric Actuator Two Side Flange Adaptor (110-260V AC) Emergency Manual ControlUS$ 1 - 1,000MOQ: 5 Cartons
-
PVC UH True Ball Valve With Electric Actuator Two Side Flange Adaptor (24 V DC) Emergency Manual ControlUS$ 1 - 1,000MOQ: 5 Cartons
-
PVC UH True Ball Valve For Acid, With Electric Actuator One Side Female Threaded (110-260 V AC) Emergency Manual ControlUS$ 1 - 1,000MOQ: 5 Cartons
-
PVC UH True Ball Valve With Electric Actuator One Side Female ThreadedC Emergency Manual ControlUS$ 1 - 1,000MOQ: 5 Cartons
Options:
Easy assembly disassembly acailability.
Positioner, Limit switch box, Namur solenoid valve, manual control unit.
Actuator flange connection measures ISO 5211
Flange connection mensures:ISO 7005/ EN 1092/ DIN 2501 PN10/ BS4504
Availability exist for new options which can be added according to the needs.
|
Dia |
BSP (Inch) |
PN |
DN (mm) |
kv-value l/min. |
Z (mm) |
L1 (mm) |
L (mm) |
H (mm) |
H1 (mm) |
ISO5211 Interface |
20 |
1/2″ |
16 |
15 |
185 |
60 |
48 |
123 |
131 |
27 |
F 03 |
25 |
3/4″ |
16 |
20 |
350 |
58 |
45 |
140 |
133 |
31 |
F 03 |
32 |
1″ |
16 |
25 |
700 |
68 |
49 |
158 |
141 |
33 |
F 05 |
40 |
1 1/4″ |
16 |
32 |
1000 |
82 |
54 |
186 |
157 |
41 |
F 05 |
50 |
1 1/2″ |
16 |
40 |
1600 |
94 |
65 |
231 |
182 |
46 |
F 05 |
63 |
2″ |
16 |
50 |
3100 |
98 |
74 |
253 |
218 |
58 |
F 07 |
75 |
2 1/2'' |
16 |
65 |
5000 |
119 |
87 |
291 |
228 |
65 |
F 07 |
90 |
3″ |
16 |
80 |
7000 |
156 |
98 |
353 |
252 |
89 |
F 07 |
110 |
4″ |
16 |
100 |
11000 |
185 |
150 |
431 |
276 |
105 |
F 07 |
Dia |
BSP(Inch) |
PN |
Kg/Pcs |
Box/Pcs |
EPDM & PTFE O-RINGCode |
FPM O-RINGCode |
20 |
1/2″ |
16 |
0.830 |
1 |
339 10 020 2 |
339 20 020 2 |
25 |
3/4″ |
16 |
0.945 |
1 |
339 10 025 2 |
339 20 025 2 |
32 |
1″ |
16 |
1.135 |
1 |
339 10 032 2 |
339 20 032 2 |
40 |
1 1/4″ |
16 |
2.215 |
1 |
339 10 040 2 |
339 20 040 2 |
50 |
1 1/2″ |
16 |
2.575 |
1 |
339 10 050 2 |
339 20 050 2 |
63 |
2″ |
16 |
3.425 |
1 |
339 10 063 2 |
339 20 063 2 |
75 |
2 1/2'' |
16 |
4.960 |
1 |
339 10 075 2 |
339 20 075 2 |
90 |
3″ |
16 |
8.400 |
1 |
339 10 090 2 |
339 20 090 2 |
110 |
4″ |
16 |
11.815 |
1 |
339 10 110 2 |
339 20 110 2 |
Send Inquiry to This Supplier
