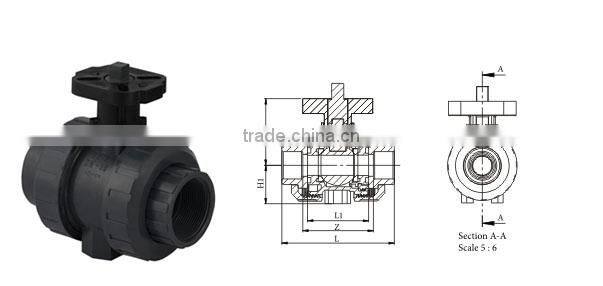

Help CenterU-PVC Actuation Adaptor True Union Ball Valves (One Side Female Threaded)
Related Products
-
U-PVC Actuation Adaptor True Union Ball Valves For AcidUS$ 1 - 1,000MOQ: 5 Cartons -
U-PVC 3 Way Valves (T Port)US$ 1 - 1,000MOQ: 5 Cartons
-
U-PVC 3 Way Ball Valves (T Port)US$ 1 - 1,000MOQ: 5 Cartons
-
U-PVC True Uinon Ball Valve For Acid Position Regulated One Side Female ThreadedUS$ 1 - 1,000MOQ: 5 Cartons
-
U-PVC True Uinon Ball Valve Position Regulated For Water Two Side Female ThreadedUS$ 1 - 1,000MOQ: 5 Cartons
Options:
Easy assembly disassembly availability.
Positioner,Limit swith box,Namur solenoid valve,manual control unit.
Actuator flange connection measures ISO 5211
Availability exist for new options which can be added according to the needs.
Dia |
BSP(Inch) |
PN |
DN(mm) |
Kv-value l/min. |
Z(mm) |
L1(mm) |
L(mm) |
H1(mm) |
ISO 5211 Interface |
20 |
1/2″ |
16 |
15 |
185 |
60 |
48 |
85 |
27 |
F 03 |
25 |
3/4″ |
16 |
20 |
350 |
58 |
45 |
95 |
31 |
F 03 |
32 |
1″ |
16 |
25 |
700 |
68 |
49 |
107 |
33 |
F 05 |
40 |
1 1/4″ |
16 |
32 |
1000 |
82 |
54 |
128 |
41 |
F 05 |
50 |
1 1/2″ |
16 |
40 |
1600 |
94 |
65 |
154 |
46 |
F 05 |
63 |
2″ |
16 |
50 |
3100 |
98 |
74 |
172 |
58 |
F 07 |
75 |
2 1/2'' |
16 |
65 |
5000 |
119 |
87 |
196 |
65 |
F 07 |
90 |
3″ |
16 |
80 |
7000 |
156 |
98 |
241 |
89 |
F 07 |
110 |
4″ |
16 |
100 |
11000 |
185 |
150 |
289 |
105 |
F 07 |
Dia |
BSP(Inch) |
PN |
Kg/Pcs |
Box/Pcs |
EPDM & PTFE O-RINGCode |
FPM O-RINGCode |
20 |
1/2″ |
16 |
0.156 |
1 |
300 04 020 2 |
301 04 020 2 |
25 |
3/4″ |
16 |
0.206 |
1 |
300 04 025 2 |
301 04 025 2 |
32 |
1″ |
16 |
0.267 |
1 |
300 04 032 2 |
301 04 032 2 |
40 |
1 1/4″ |
16 |
0.442 |
1 |
300 04 040 2 |
301 04 040 2 |
50 |
1 1/2″ |
16 |
0.690 |
1 |
300 04 050 2 |
301 04 050 2 |
63 |
2″ |
16 |
1.145 |
1 |
300 04 063 2 |
301 04 063 2 |
75 |
2 1/2'' |
16 |
1.510 |
1 |
300 04 075 2 |
301 04 075 2 |
90 |
3″ |
16 |
3.580 |
1 |
300 04 090 2 |
301 04 090 2 |
110 |
4″ |
16 |
5.485 |
1 |
300 04 110 2 |
301 02 110 2 |
