Home > Products > Plastic Valves > U-PVC One Side Female Threaded Other Side Male Threaded Single Union Spring Check Valve

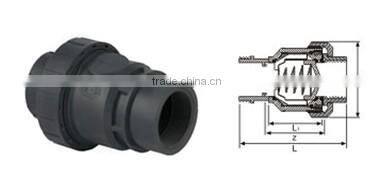

U-PVC One Side Female Threaded Other Side Male Threaded Single Union Spring Check Valve
Negotiable
/ Carton
5 Cartons(Min. Order)
- Shanghai/Ningbo
- T/T
You May Like
Product Details
| Material | Other, UPVC, UPVC | Type | Other, Valves | |
| Place of Origin | Zhejiang, China | Model Number | DIN | |
| Brand Name | TU | Connection | Female |
Product Description
NO. | Part | Material | QTY |
1 | End Connector | U-PVC | 1 |
2 | Union Nut | U-PVC | 1 |
3 | Body O-Ring | EPDM | 2 |
4 | Body | U-PVC | 1 |
5 | Spring | INOX | 1 |
6 | Valve | U-PVC | 1 |
7 | Carrier O-Ring | EPDM | 1 |
8 | ValveO-RING | EPDM | 1 |
9 | Carriera | U-PVC | 1 |
Dia | R inch | DN mm | H mm | L mm | L1 mm | Z mm | Kg/PCS | Box/Pcs | PN | EPDM O-RING CODE |
20 | 1/2″ | 16 | 47 | 78 | 10 | 55 | 0.072 | 60 | 16 | 216 20 020 2 |
25 | 3/4″ | 20 | 52 | 87 | 12 | 59 | 0.097 | 75 | 16 | 216 20 025 2 |
32 | 1″ | 25 | 63 | 100 | 13 | 69 | 0.143 | 60 | 16 | 216 20 032 2 |
40 | 1 1/4″ | 32 | 66 | 114 | 17 | 72 | 0.254 | 32 | 16 | 216 20 040 2 |
50 | 1 1/2″ | 40 | 89 | 140 | 19 | 91 | 0.406 | 24 | 16 | 216 20 050 2 |
63 | 2″ | 50 | 100 | 163 | 28 | 103 | 0.682 | 13 | 16 | 216 20 063 2 |
75 | 2 1/2″ | 65 | 128 | 196 | 102 | 111 | 0.990 | 9 | 16 | 216 20 075 2 |
90 | 3″ | 80 | 180 | 227 | 128 | 141 |
|
| 16 | 216 20 090 2 |
110 | 4″ | 100 | 212 | 275 | 159 | 171 |
|
| 16 | 216 20 110 2 |
